Cage arms/ New Coil mounts

From 1994 Ford Bronco “Plug Ugly” — documented by Damon Haas.

9 photos
← Back to this vehicle

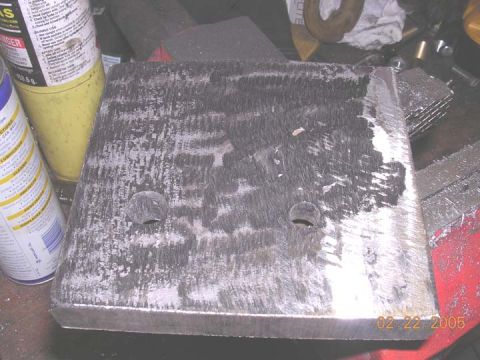

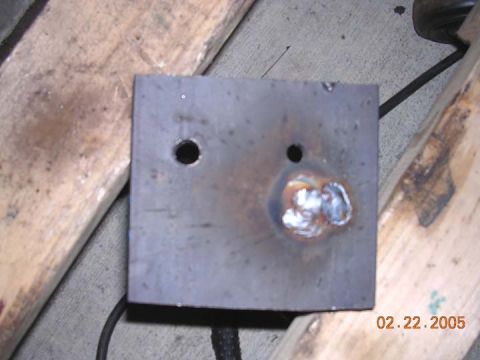

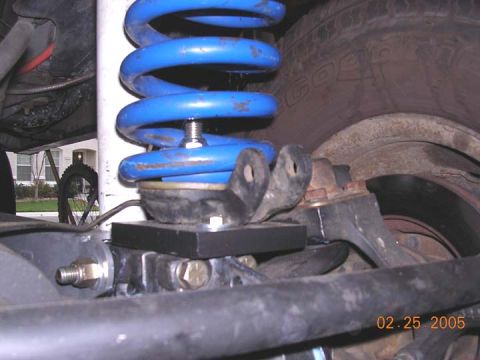

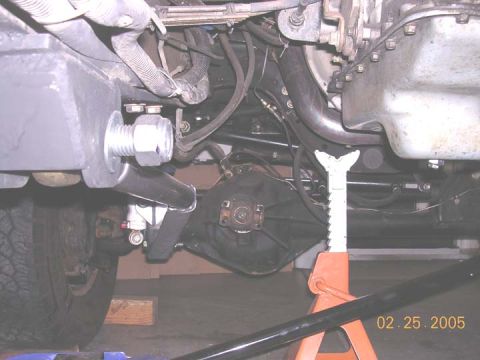

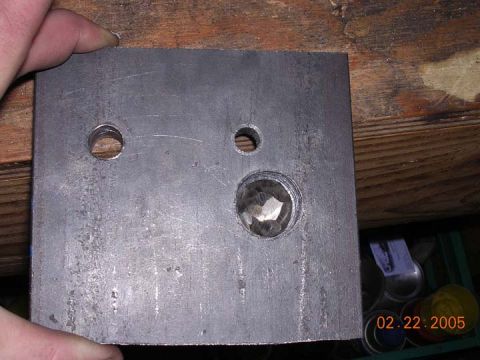

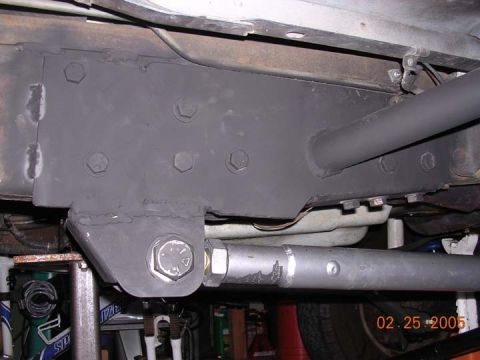

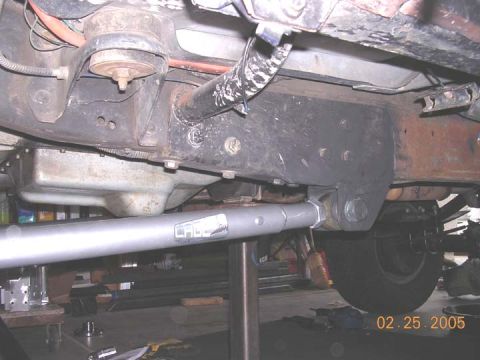

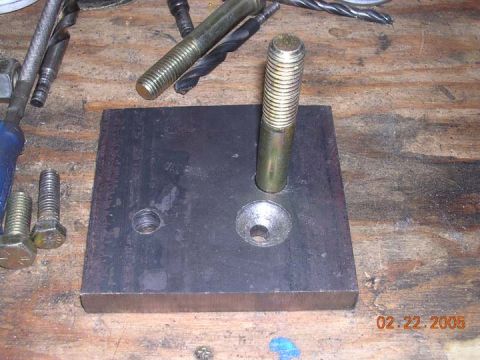

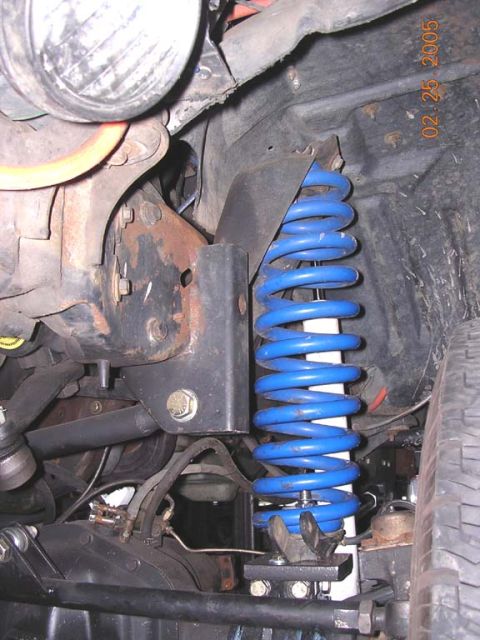

1994 Ford Bronco - wholes drilled. the bottom is drilled large to allow the head of a 5/8 bolt to fit. You do grind down the head of the bolt, and then weld i… 1994 Ford Bronco - Welded in place. I moved the center bolt back 1.5 inch and out 1.5 inch to help the coil sit more level. 1994 Ford Bronco - ground smooth and ready for paint 1994 Ford Bronco - ready for paint. Again, this bolt is now 1.5 inches back and out for better coil alignement. 1994 Ford Bronco - coil sits much better. I may use the old swaybar mounts to mount a new swaybar since I may go to the new superflex JBG coils 1994 Ford Bronco - the coil sits much better. Cage builds 4.25 degrees of caster into the arms to help the coil sit flatter. i am running 7 degree bushings up… 1994 Ford Bronco - Had to but weld a pice of 3/8 to match the other side. When these brackets were fabbed, they were made around the stock E4OD tranny crossme… 1994 Ford Bronco - drivers side. The cage arms mounted about 2" further back from where my other arms were, so I cut off all the old mounts below the frame. t… 1994 Ford Bronco - These arms are sweet. Clearance high and in. they do come a little close to the 80's kingpin style 60 pinion, but there should be plenty of…
