klune/205 pics

From 1994 Ford Bronco “Plug Ugly” — documented by Damon Haas.

6 photos

← Back to this vehicle

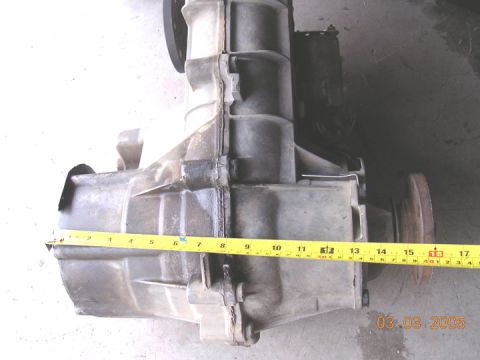

1994 Ford Bronco - BW case from mounting surface to ouptut flange face is 16.5"

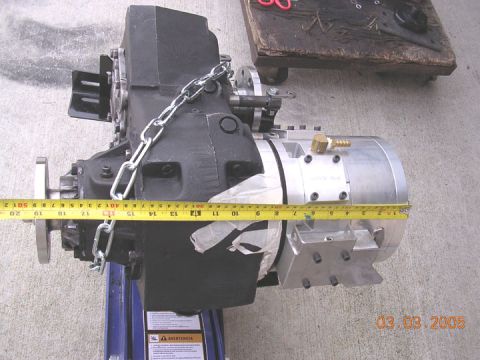

1994 Ford Bronco - klune/205 with 3/4 spacer beween klune and tranny, as well as klune/205 with the mounting foot (1/4") is 19.25". You could cut the tranny o…

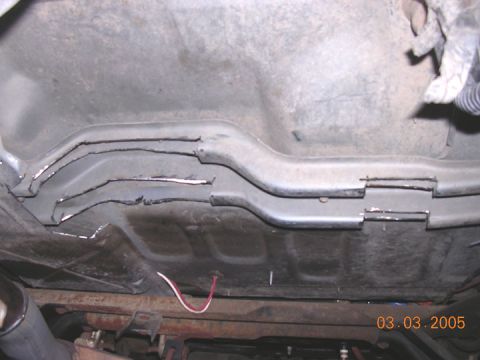

1994 Ford Bronco - I ended up without using a body lift, but notched the seatbelt bracket like this

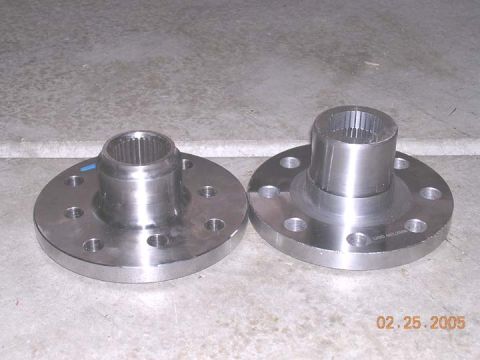

1994 Ford Bronco - Im using WFO flange (on left and 1/2" shorter) in the rear, and a Highangle flange(on right) in the front for extra xmember clearance

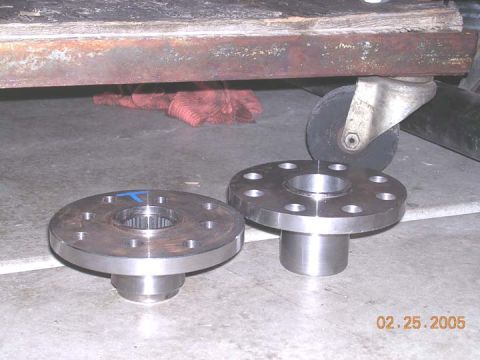

1994 Ford Bronco - another shot of the difference. WFO's is on the left

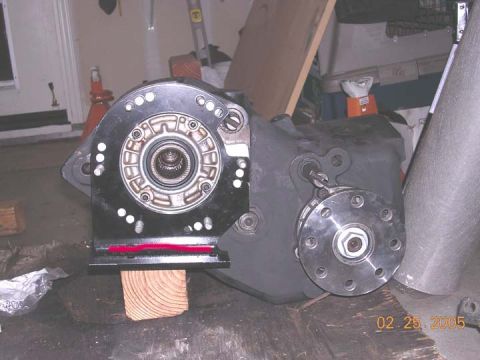

1994 Ford Bronco - I clocked the 205 up some, which required cutting the mounting foot where the red line is, and then bendingthe right side of the foot down…
