Tweecer Install

From 1992 Ford Bronco “Big '92” — documented by Jeremy Millrood.

12 photos
← Back to this vehicle

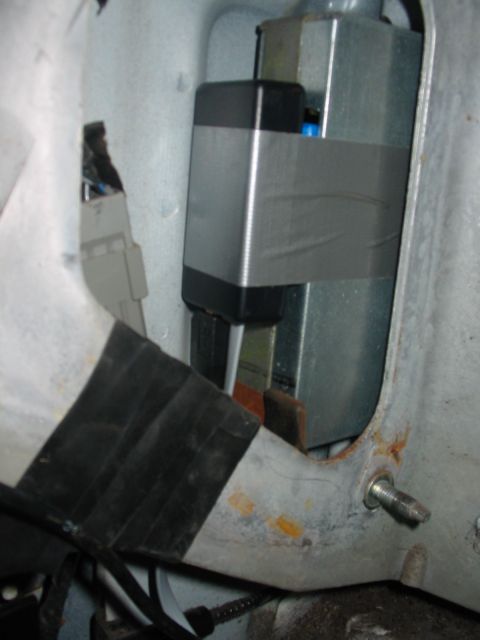

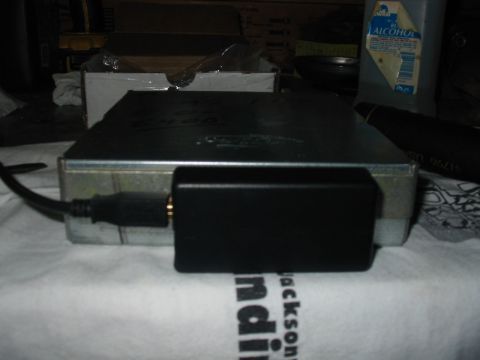

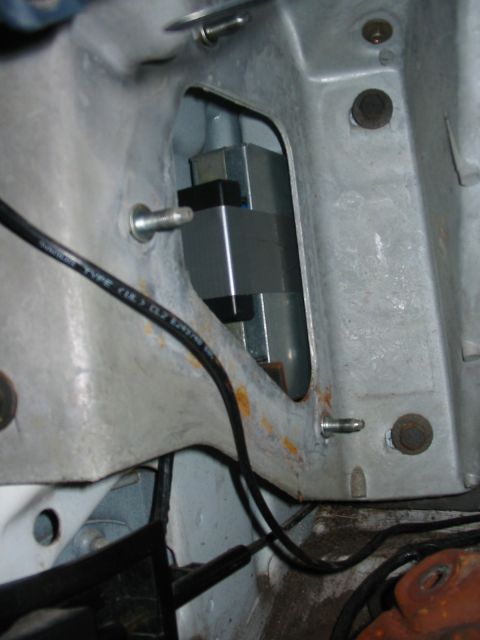

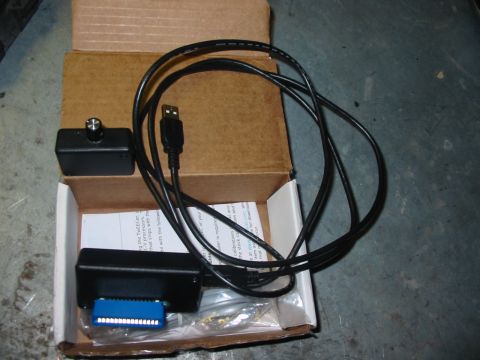

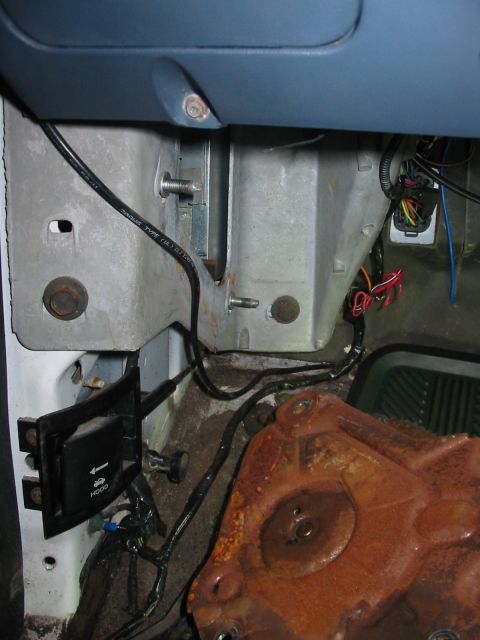

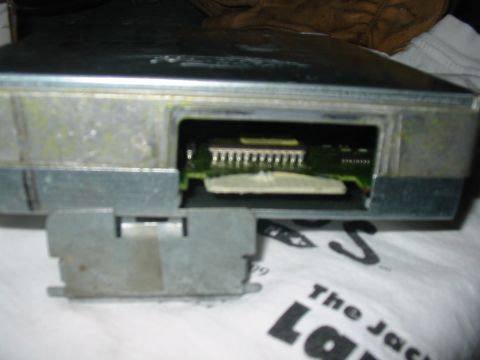

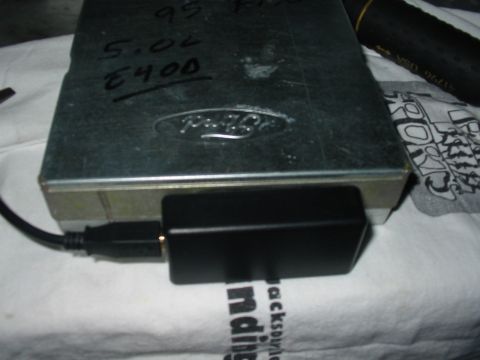

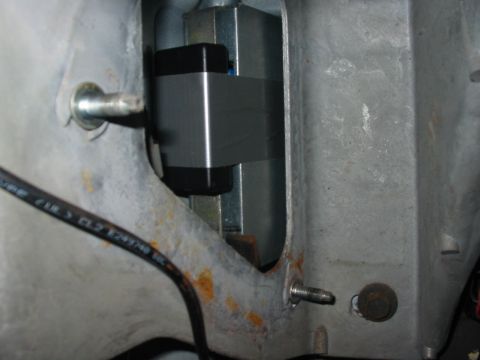

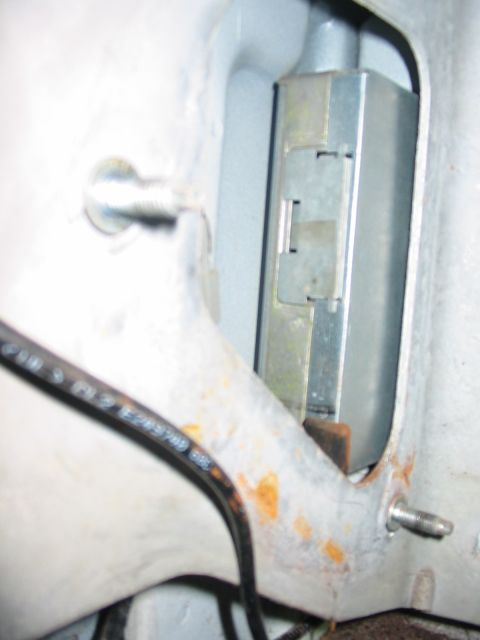

1992 Ford Bronco - Here is my tweecer fresh out of the box. The tweecer is a unit that allows you to tune your engine to take advantage of upgrades and modifi… 1992 Ford Bronco - removed the e-brake pedal bracket so I could run the wires from the back of the tweecer. 1992 Ford Bronco - here is the back of the EEC. It needs to be removed through the engine side of the drivers side firewall. procedure is much easier if you r… 1992 Ford Bronco - back of the EEC. This is the J3 port, there is a coating on the connections that needs to be cleaned off with alcohol to ensure that the tw… 1992 Ford Bronco - tweecer R/T plugged into the J3 port with the USB cable attached The USB will allow me to connect the tweecer to my laptop and talk to it u… 1992 Ford Bronco - Engine control unit with an adapter and cable connected, resting on a surface. 1992 Ford Bronco - tweecer recommends putting duct tape around the unit to keep it from coming lose..last pic with the unit in place before I put the e-brake… 1992 Ford Bronco - A component is mounted within the engine bay, secured by bolts and wires. 1992 Ford Bronco - An electronic module, wrapped in silver tape, is visible within a vehicle's interior compartment. 1992 Ford Bronco - ready to tune. this is a screen shot of the scalars for my EEC. 1992 Ford Bronco - this is the calcon software, it allows you to record in real time what your engine is doing and will monitor 16 separate functions at a tim… 1992 Ford Bronco - Software interface displays engine calibration functions, tables, and variables for vehicle tuning.
