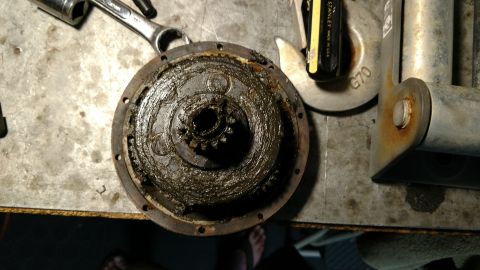

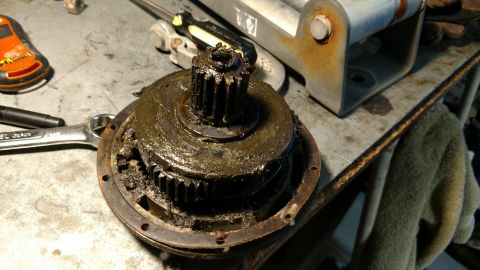

Badland 9K Winch

From 1992 Ford Bronco “Big '92” — documented by Jeremy Millrood.

18 photos
← Back to this vehicle

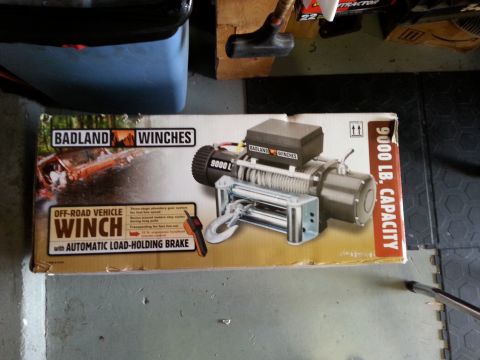

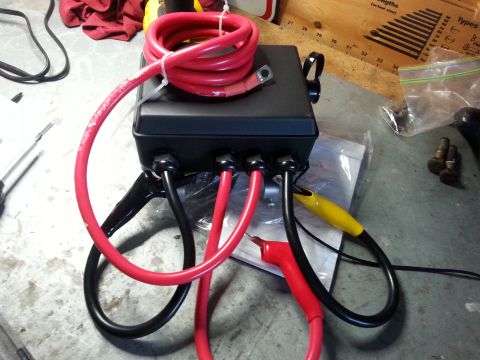

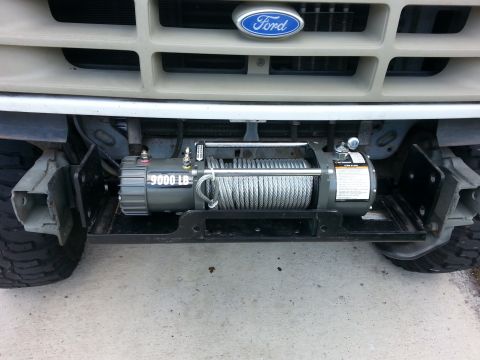

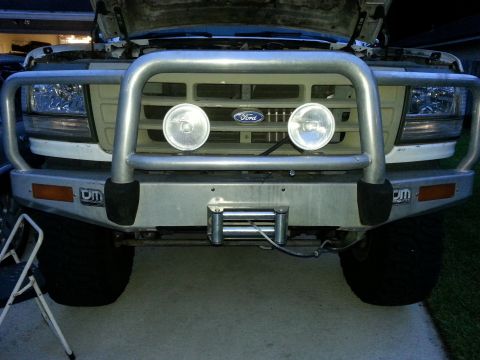

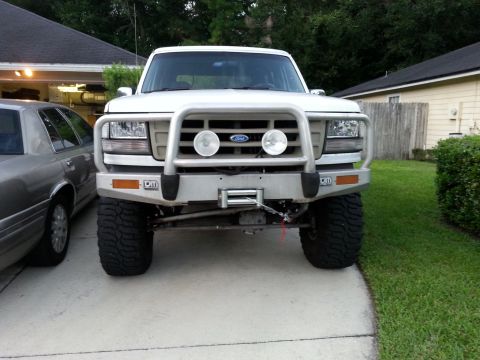

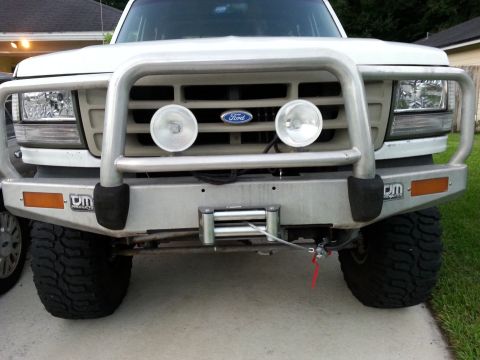

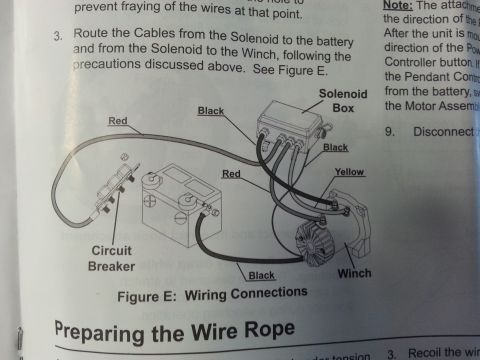

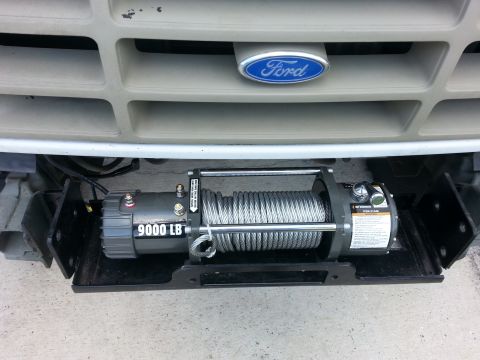

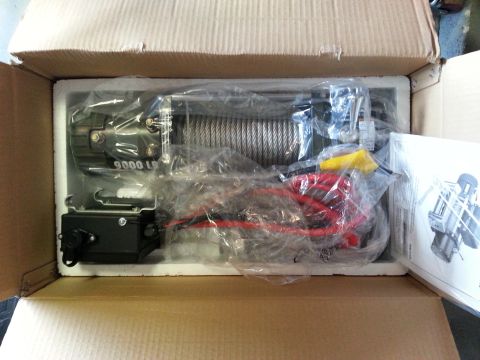

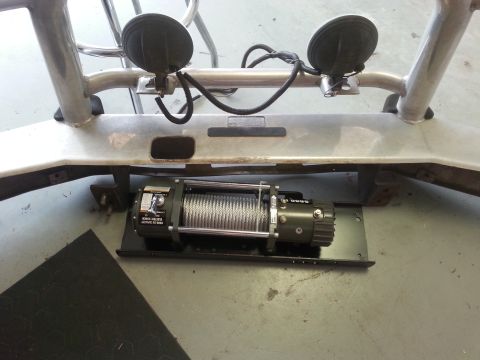

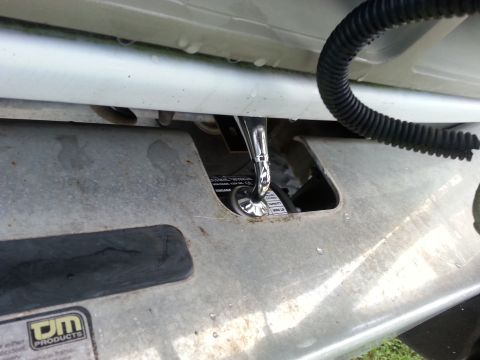

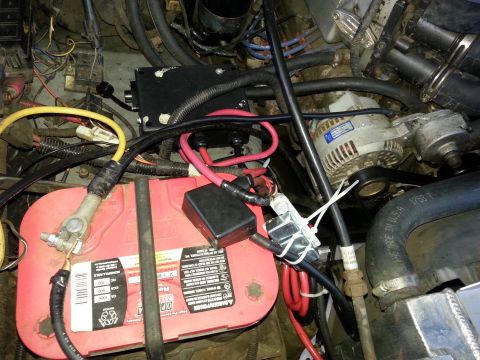

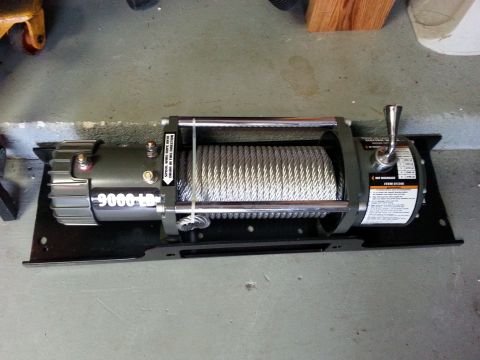

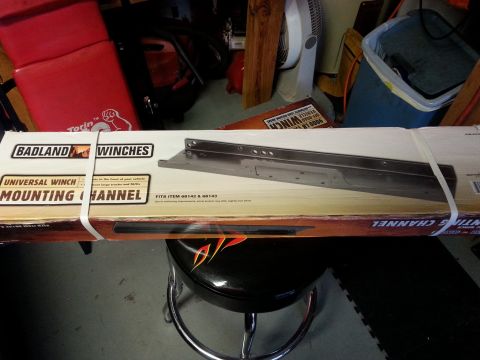

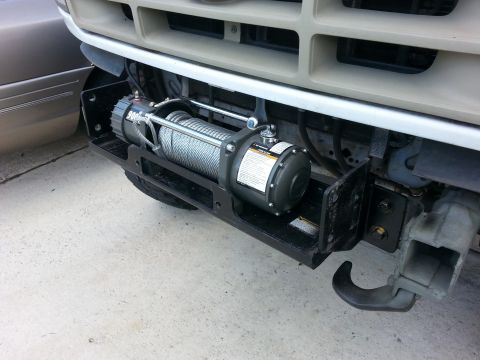

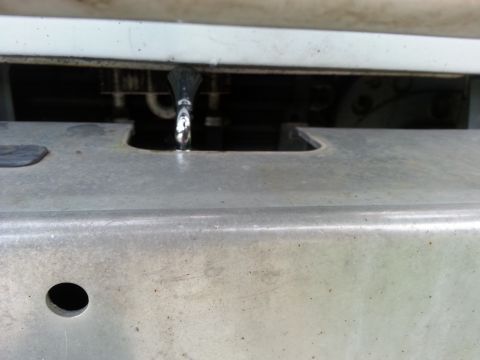

1992 Ford Bronco - Harbor Freight had one of their 25% off coupons for the 4th, so I picked up a Badlands 9K winch for just over $240. Not a bad deal. 1992 Ford Bronco - This is not Warn, nor does it pretend to be. However, this should be more than enough winch for my occasional use. Now I need to figure out… 1992 Ford Bronco - The wires on the solenoid do not match what is in the diagram. Just make sure that the long red wire goes to the positive ( ) on the batter… 1992 Ford Bronco - Figure E shows the wiring connections for a winch, including a solenoid box and circuit breaker. 1992 Ford Bronco - Universal winch mount from Harbor Freight...maybe universal for a Jeep, but not for the Bronco...After my 20% off coupon, I think I paid ab… 1992 Ford Bronco - Cut the universal mount down..this will go between the frame horns..it's going to be tight.. 1992 Ford Bronco - fit is going to be tight, so the bumper itself will need to be trimmed to accommodate the winch lever and mount. 1992 Ford Bronco - Didn't have the time, so rather than doing it myself, I paid a shop to weld up the mount to the frame horns (cost $225). This way I can rem… 1992 Ford Bronco - Front view of a 1992 Ford Bronco, a 9000 LB winch installed below the grille. 1992 Ford Bronco - Side shot. 1992 Ford Bronco - Everything mounted back up. I'm guessing the original TJM fairleads used 4 bolts..this one only uses 2 and is a bit lower than I'd like. I… 1992 Ford Bronco - Here is the solenoid wired up..I did use the factory mount so I had to drill holes in the case and flip it upside down to mount it to the f… 1992 Ford Bronco - here is final product with the hook on. I'm considering buying synthetic line, but that purchase will have to wait. The amsteel blue I was… 1992 Ford Bronco - Frontal view of a white Ford Bronco equipped with a winch and bull bar. 1992 Ford Bronco - this is the clearance for the winch lever. It's tight, but I can still get my hand in there to turn it. The original hole in the bumper had… 1992 Ford Bronco - A close-up shows a socket wrench being used to secure winch mounting hardware on a vehicle's frame. 1992 Ford Bronco 1992 Ford Bronco
