Forced Lube

From 1994 Ford Crown Victoria “Vicky (totalled & shredded)” — documented by Steve83.

18 photos
← Back to this vehicle

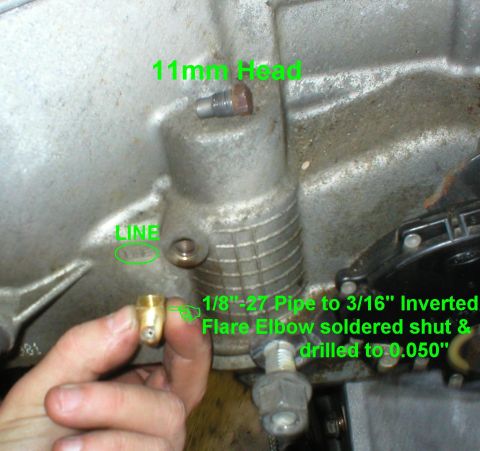

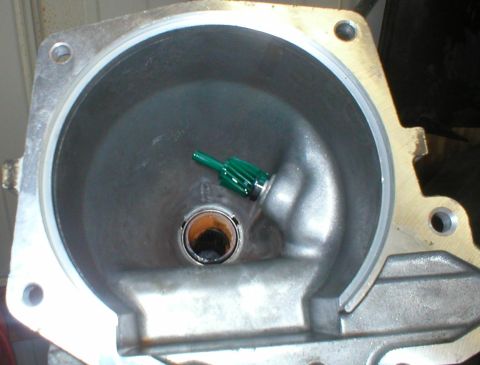

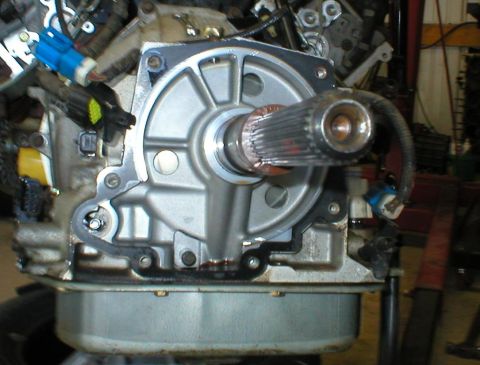

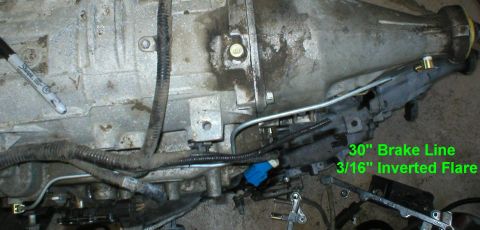

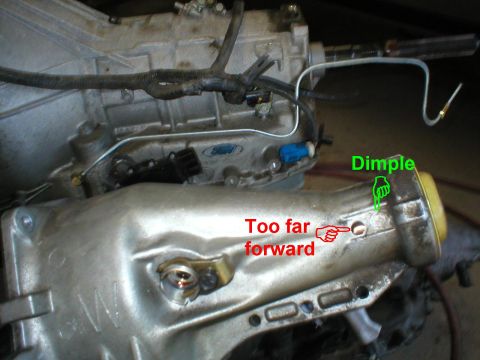

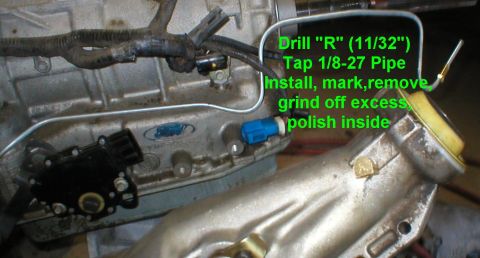

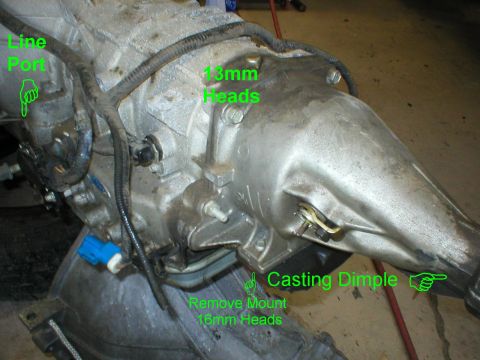

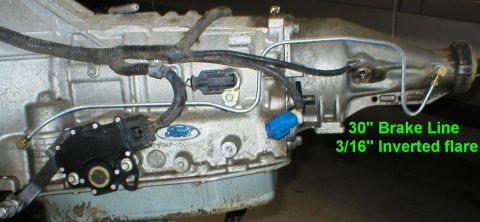

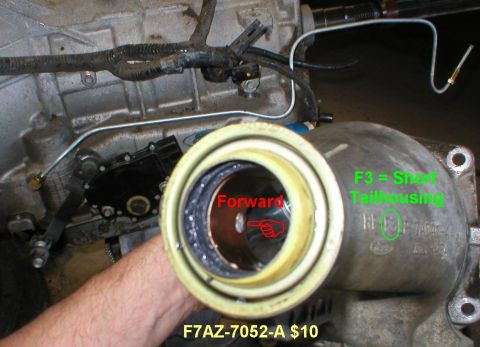

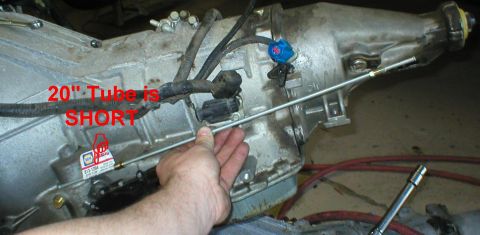

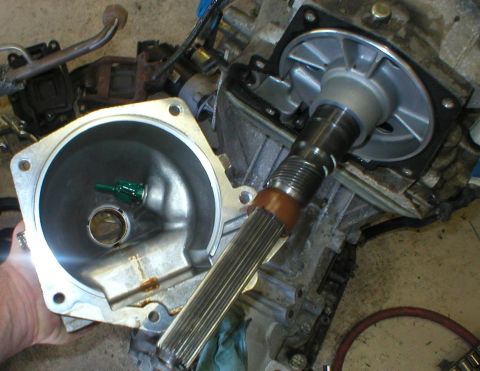

1994 Ford Crown Victoria - Before. Tailhousing bushings are prone to wear because they are only lubricated by the splash of fluid running up inside the tailhousing. T… 1994 Ford Crown Victoria - Tailhousing removed. With the transmission tilted up, no fluid was lost, and the gasket remained intact. 1994 Ford Crown Victoria - The LINE port is at the back of the bellhousing on the L side. 1994 Ford Crown Victoria - The tip of the driveshaft slip yoke is reduced, so it appears loose in the bushing. The green plastic gear is the 17-tooth DRIVEN gear of t… 1994 Ford Crown Victoria - If your gasket has to be replace (I reused mine), buy F7AZ-7086-A $3.16 at the dealership. 1994 Ford Crown Victoria - The TCCoA article recommends an 18" tube, but this 20" one is obviously short. I used a 30" line. 1994 Ford Crown Victoria - I drilled too far forward - I should have drilled in the dimple of the casting. Considering the rotation of the driveshaft & the location o… 1994 Ford Crown Victoria - I almost missed the bushing. 1994 Ford Crown Victoria - After drilling, tapping, grinding, & sanding, I rinsed the tailhousing thoroughly with carb cleaner to remove any residue. The threaded tip… 1994 Ford Crown Victoria - Finished Side 1994 Ford Crown Victoria - Finished Top 1994 Ford Crown Victoria - Finished Rear 1994 Ford Crown Victoria - Finished installed in the tunnel 1994 Ford Crown Victoria - Finished installed view of the shifter. There is no interference. 1994 Ford Crown Victoria - Finished installed view of the shifter from below. There is no interference. 1994 Ford Crown Victoria - Fluid leaks out of the slip-yoke's vent hole in the center behind the U-joint, and drips off the bottom. It also slings onto the underbody.… 1994 Ford Crown Victoria - Since I couldn't really seal the vent hole with the U-joint in place, I just made a bridge of sealant (Right Stuff) and it seems to be work… 1994 Ford Crown Victoria - After a few hundred miles, I dropped the pan, changed the filter & gasket (it was leaking), and added a Dorman HELP! 65128 drain plug kit t…
