Panther Instrument Cluster Schematics and Pinouts

From 1996 Mercury Grand Marquis “The "LSE S/C"” — documented by Drock96marquis.

15 photos
← Back to this vehicle

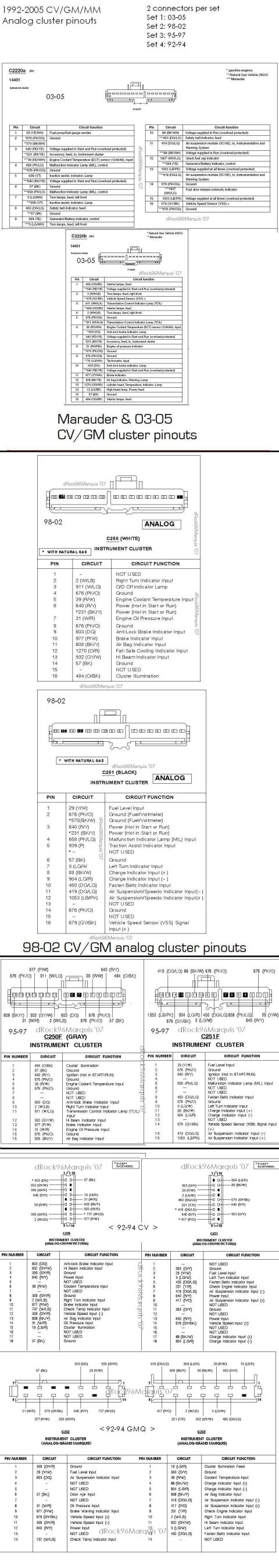

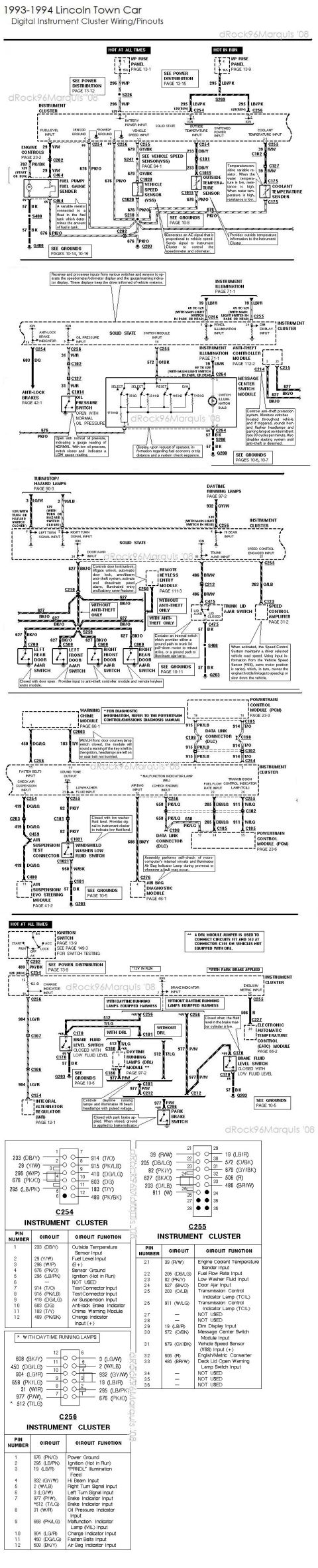

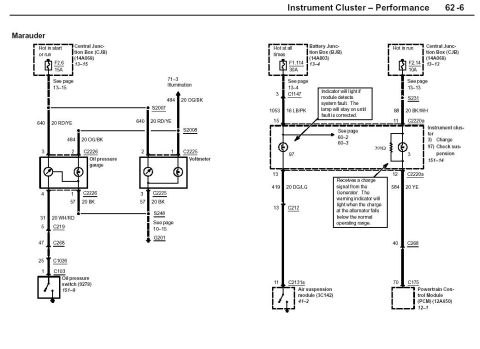

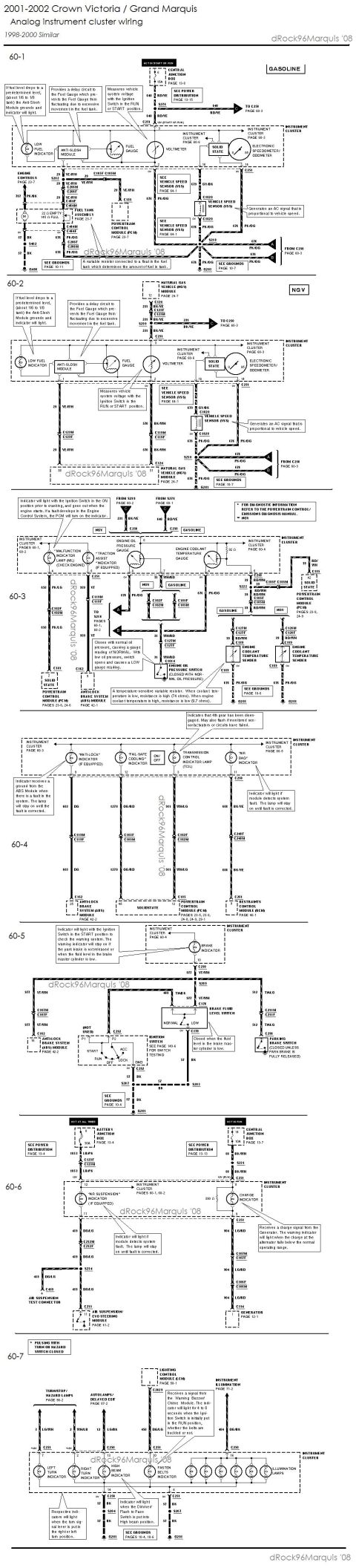

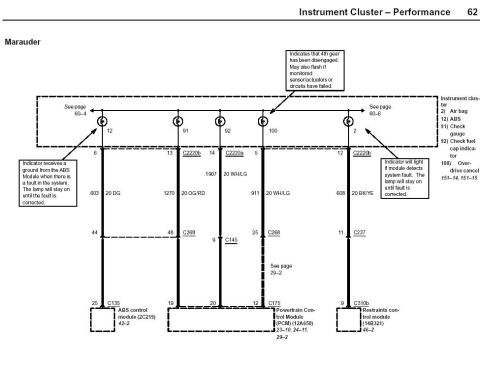

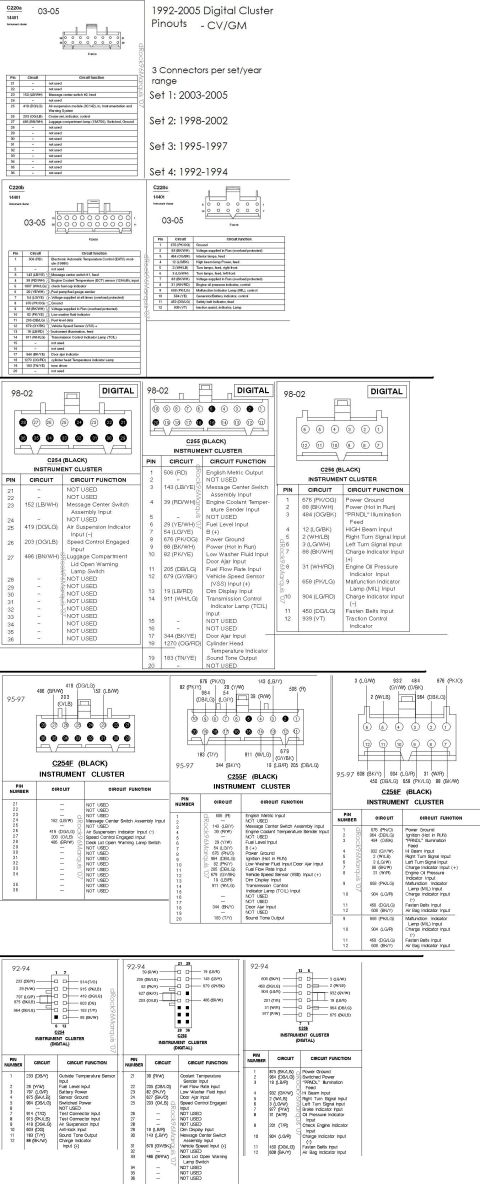

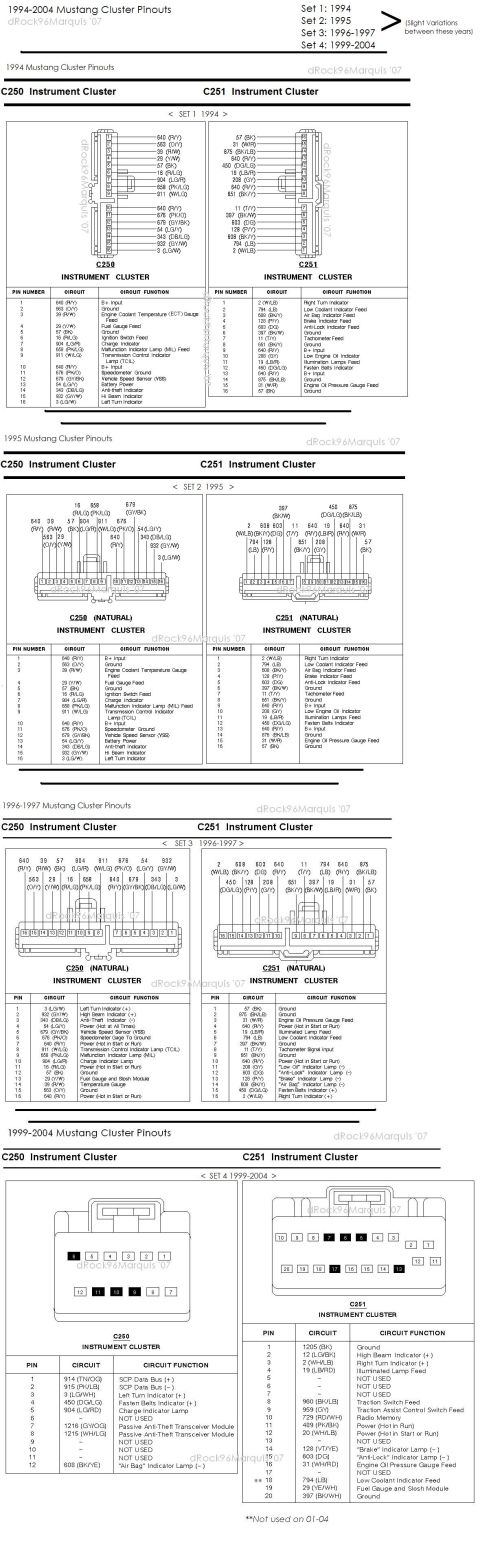

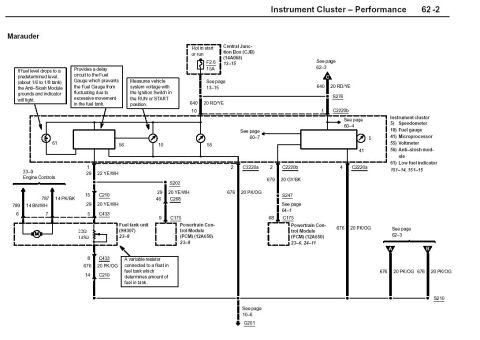

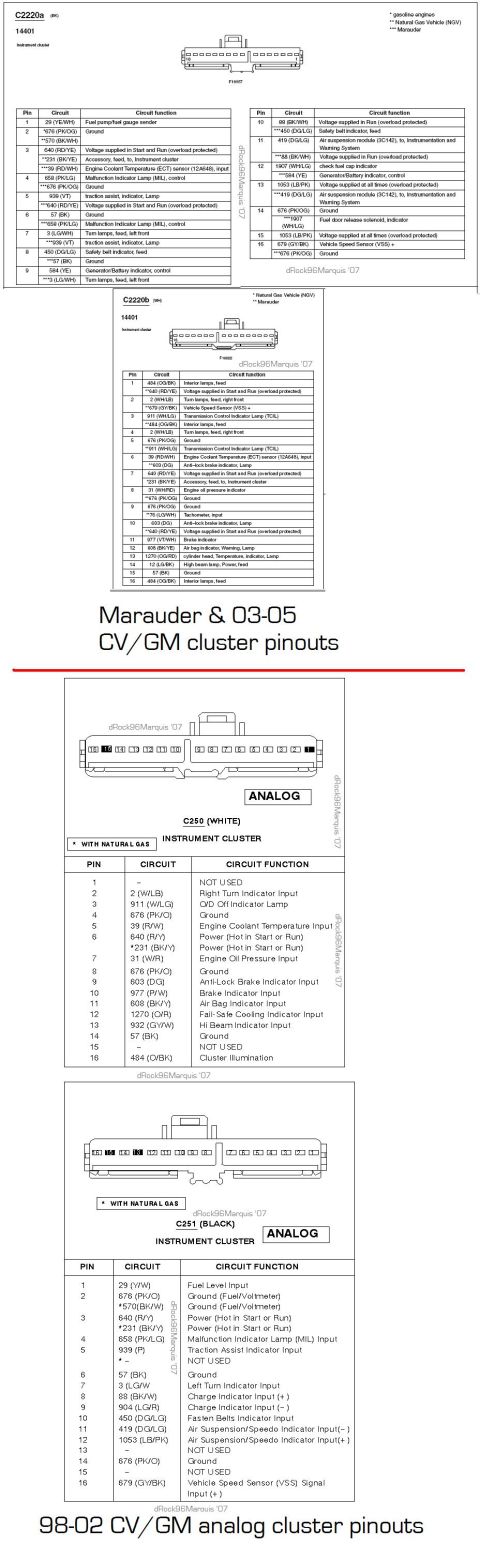

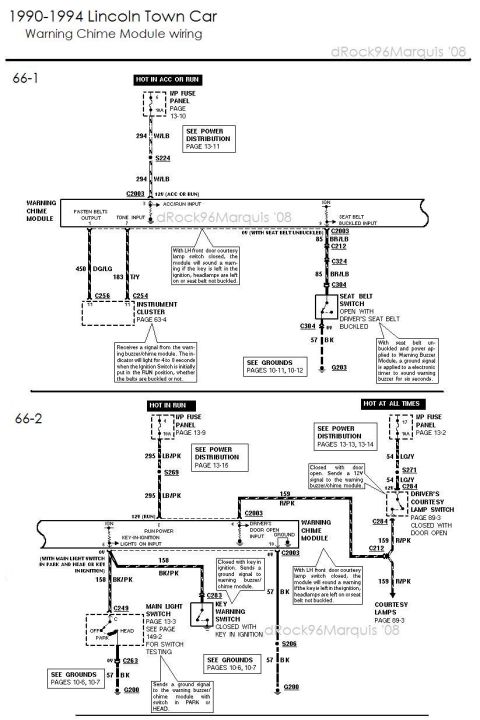

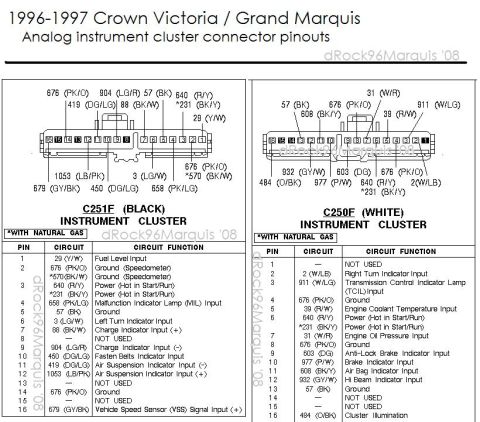

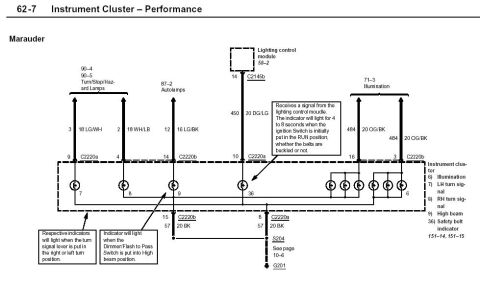

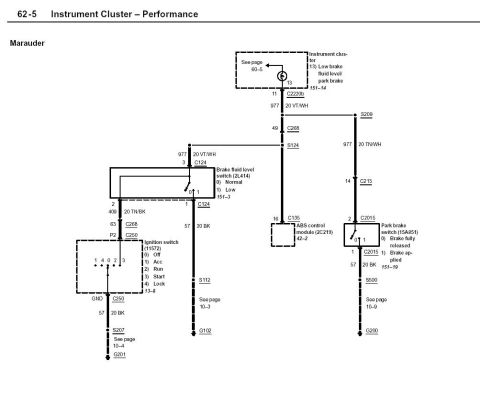

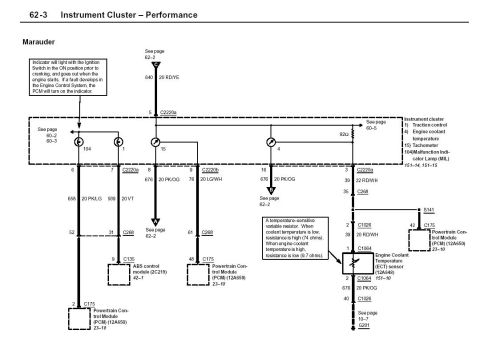

1996 Mercury Grand Marquis - MARAUDER Instrument Panel - 1 1996 Mercury Grand Marquis - MARAUDER Instrument Panel - 2 1996 Mercury Grand Marquis - MARAUDER Instrument Panel - 3 1996 Mercury Grand Marquis - MARAUDER Instrument Panel - 4 1996 Mercury Grand Marquis - MARAUDER Instrument Panel - 5 1996 Mercury Grand Marquis - MARAUDER Instrument Panel - 6 1996 Mercury Grand Marquis - **NOTE: Please use this pinout instead; http://www.supermotors.net/registry/media/569771 1998-2002 CV/GM analog and 2003-2005 CV/GM analog… 1996 Mercury Grand Marquis - 1992-2005 CV/GM DIGITAL cluster pinouts 1996 Mercury Grand Marquis - 1992-2005 CV/GM/MM ANALOG cluster pinouts ******NOTE***** 1996-1997 use this pinout: http://www.supermotors.net/vehicles/registry/media/659… 1996 Mercury Grand Marquis - 1994-2004 Mustang Cluster pinouts 1996 Mercury Grand Marquis - 1996-1997 CV/GMQ analog cluster pinouts 1996 Mercury Grand Marquis - 2001-2002 CV/GMQ Cluster wiring 1996 Mercury Grand Marquis - 1990-1994 Lincoln Town Car warning chime module wiring 1996 Mercury Grand Marquis - 1993-1994 Lincoln Town Car digital instrument cluster wiring and pinouts
