95-05 CV/GMQ/MM Speedo head disassembly

From 1996 Mercury Grand Marquis “The "LSE S/C"” — documented by Drock96marquis.

20 photos
← Back to this vehicle

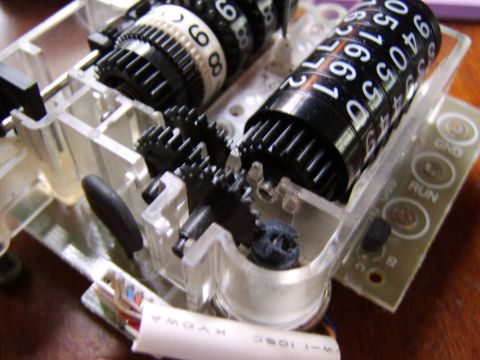

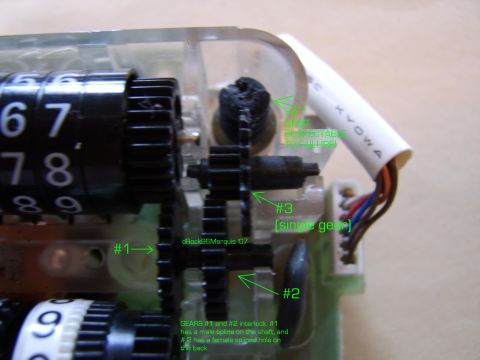

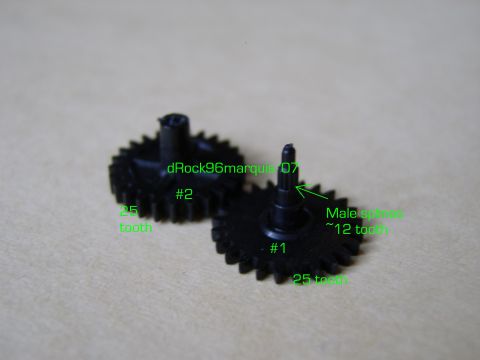

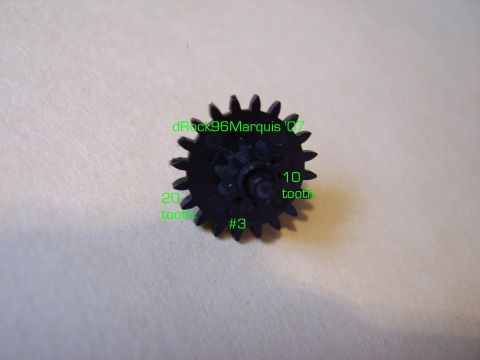

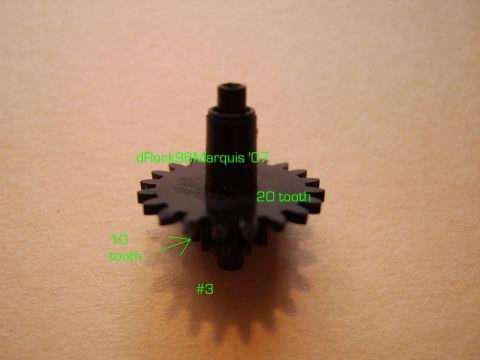

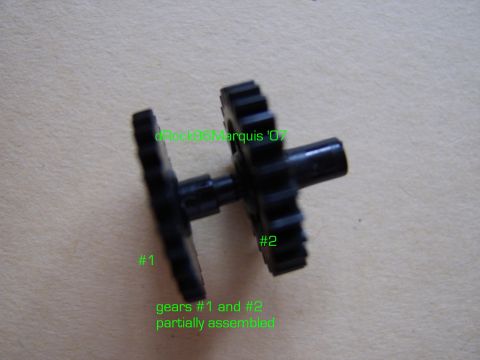

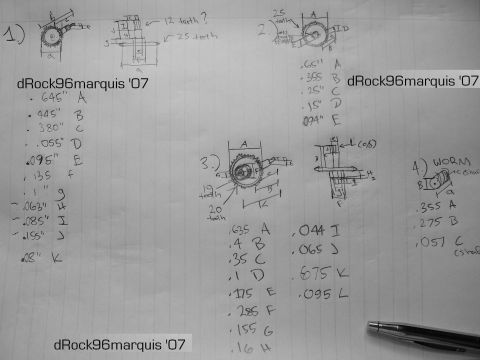

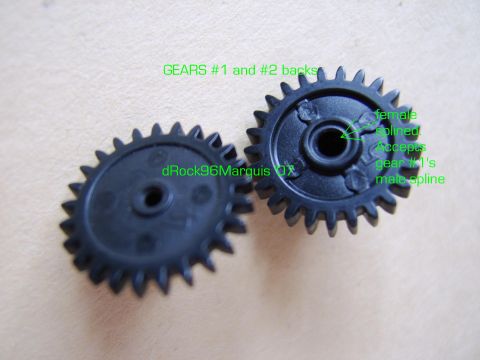

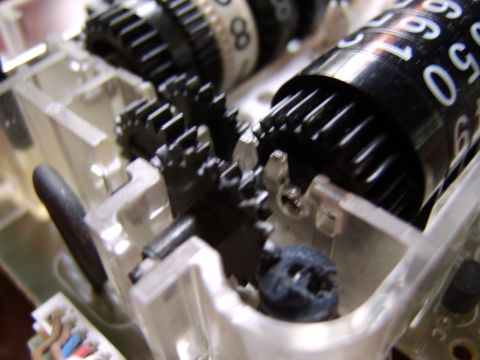

1996 Mercury Grand Marquis - *Note* This was from a spare cluster, photos for reference purposes only 1996 Mercury Grand Marquis - Note the damaged odo/tripometer drive worm gear, a common issue for aging 95-05 style speedo heads which causes failure of the odo/tripomet… 1996 Mercury Grand Marquis - Gear outline 1996 Mercury Grand Marquis - Gear #1 #2 1996 Mercury Grand Marquis - Gear #1 #2 1996 Mercury Grand Marquis - Gear #1 #2 1996 Mercury Grand Marquis - Gear #3 1996 Mercury Grand Marquis - Gear #3 1996 Mercury Grand Marquis - Measurements ..don't ask 1996 Mercury Grand Marquis - Close-up view of an odometer mechanism, showing the numbered rollers and internal gears. 1996 Mercury Grand Marquis - Internal components of an electronic speedometer, showing circuit board and mechanical parts. 1996 Mercury Grand Marquis - The internal workings of a vehicle's odometer, showing the numbered rollers and electronic components. 1996 Mercury Grand Marquis - Close-up of a disassembled speedometer odometer showing the mechanical odometer rollers and electronic circuitry. 1996 Mercury Grand Marquis - Detail of an automotive instrument cluster component, showing internal mechanical and electrical parts. 1996 Mercury Grand Marquis - Disassembled odometer reset knob and associated parts on a wooden table. 1996 Mercury Grand Marquis - The internal workings of an odometer, showing the numbered rollers and gears used to track mileage. 1996 Mercury Grand Marquis - A close-up view of internal odometer rollers, showing numerical digits.
