Spring Hanger

From 1996 Ford Bronco “Zak the Bronc” — documented by David Couch.

10 photos
← Back to this vehicle

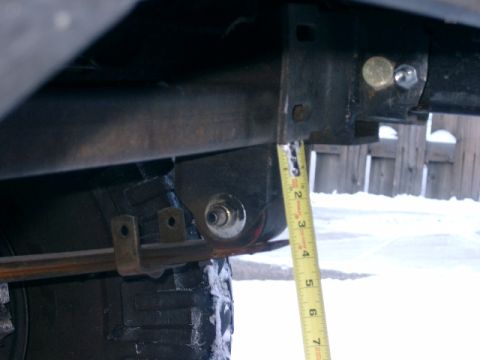

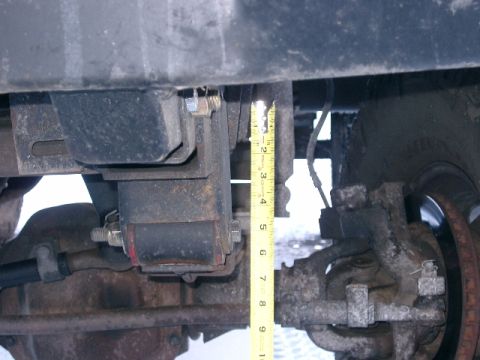

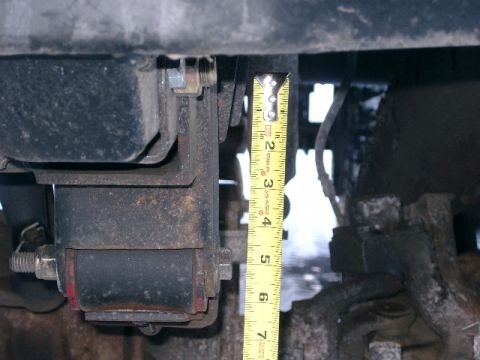

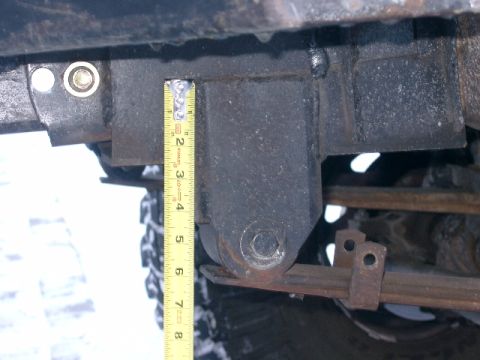

1996 Ford Bronco - My custom made front spring hanger. I used .25" wall x 4" x 4" square tube. It was the perfect size for the 3" leaf springs that I used on… 1996 Ford Bronco - Front spring hanger made for leaf spring conversion. I used .25" wall 4" x 4". Looks like overall length is 6". 1996 Ford Bronco - Second shot. 1996 Ford Bronco - Shot number three. 1996 Ford Bronco - Shot number four. The .25" 4x4 worked perfectly with the 3" Ford leaf springs from an F-350. 1996 Ford Bronco - Picture of front spring rear hanger. This hanger is modified, cut and redrilled. 1996 Ford Bronco - Another shot of the rear hanger, image out of foucus but it shows the center of where we redrilled the stock hanger. Looks like about 2" fr… 1996 Ford Bronco - Yet another shot from further away showing shackle angle. 1996 Ford Bronco - Poor quality image of front custom built hanger. Perhaps if you edit the image to cut down brightness you can make out the tape measure. 1996 Ford Bronco - Another poor quality image but it looks like the center line of the bolt is 7" from the front of the crumple zone.
