CCV Modifications

From 2002 Ford Excursion “Diesel Wagon” — documented by CHPMustang.

17 photos

← Back to this vehicle

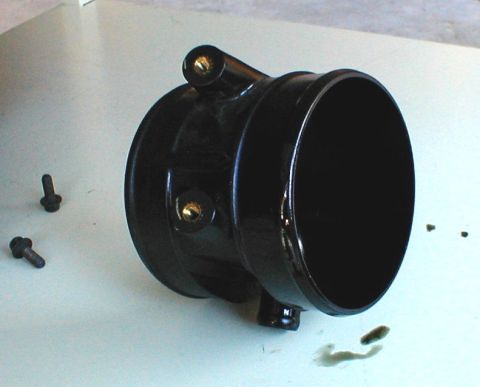

2002 Ford Excursion - Stock fume collector Photo courtesy of TXToy

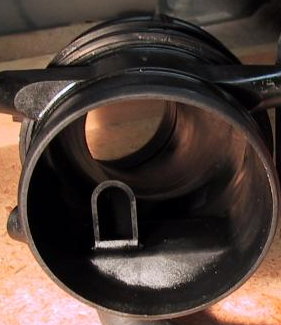

2002 Ford Excursion - Close-up of a black plastic air intake part with a U-shaped obstruction inside.

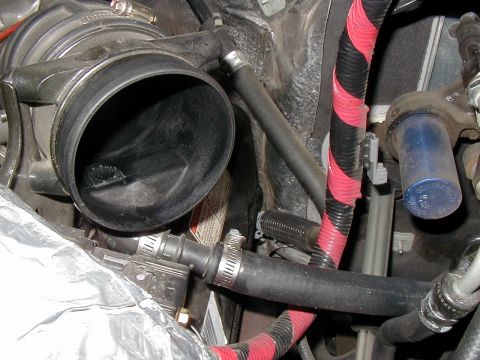

2002 Ford Excursion - Photo of the fume shroud cut off inside the collector

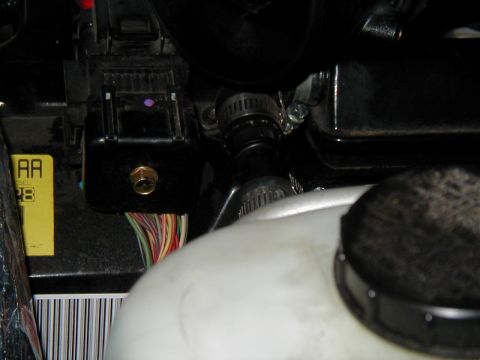

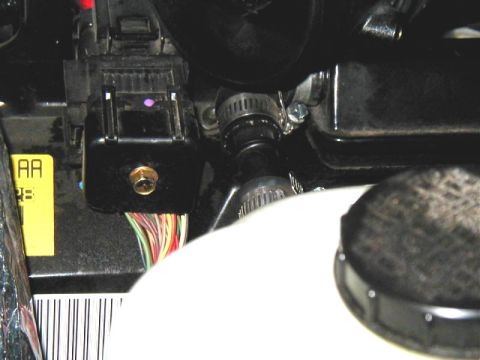

2002 Ford Excursion - You can see the 90 degree CCV elbow connected to a 3/4" ID plastic coupler with two screw clamps going to the 3/4" ID coolant hose

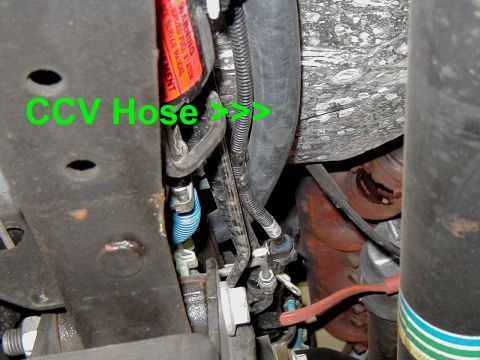

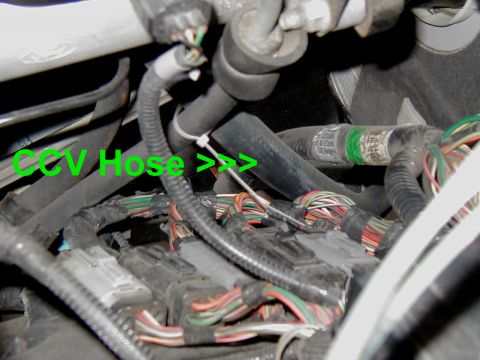

2002 Ford Excursion - CCV hose labeled with green text, showing engine components and undercarriage.

2002 Ford Excursion - This image shows a section of an engine bay with various hoses and a complex wiring harness.

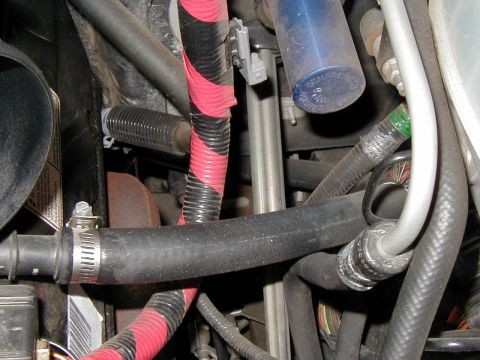

2002 Ford Excursion - A shot of the coolant hose with the screw clamp heading down along the fender

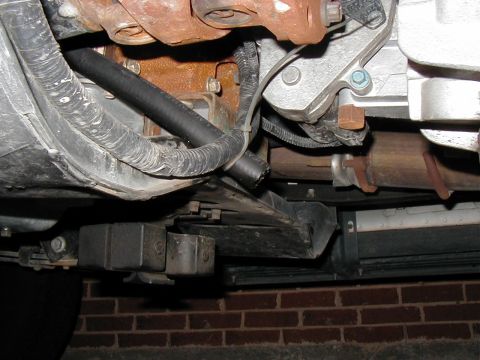

2002 Ford Excursion - A shot of the 3/4" coolant hose ending just a couple inches past the tranny crossmember/support

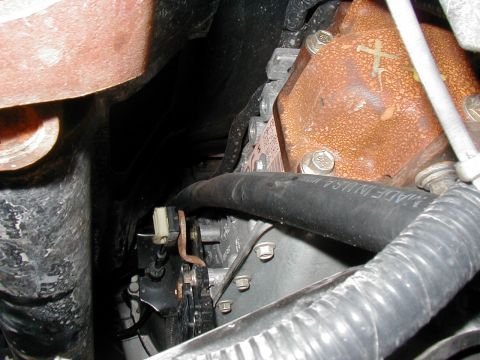

2002 Ford Excursion - Just a shot of the coolant hose going down along the fender from the CCV cover

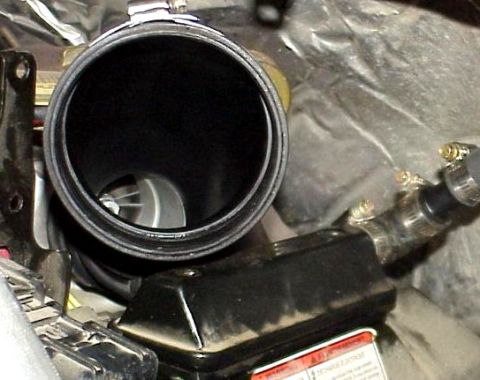

2002 Ford Excursion - Just a peek at the compressor wheel with the fume collector removed

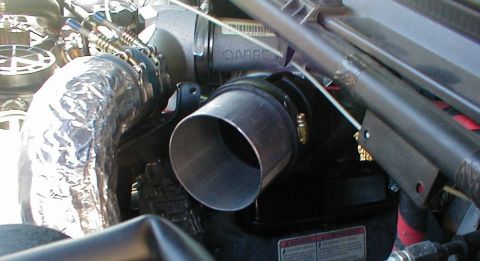

2002 Ford Excursion - 4" piece of aluminized exhaust pipe used for deleting the stock fume collector(Photo courtesy of TXToy)

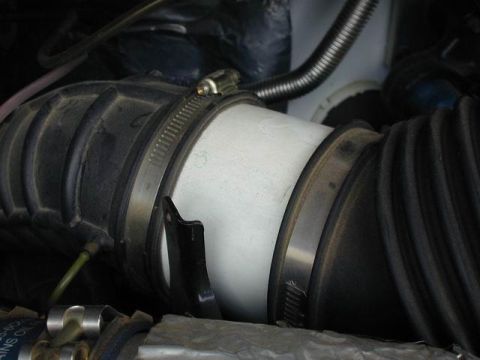

2002 Ford Excursion - 4" piece of PVC pipe in place of the stock fume collector unit(Photo author unknown)

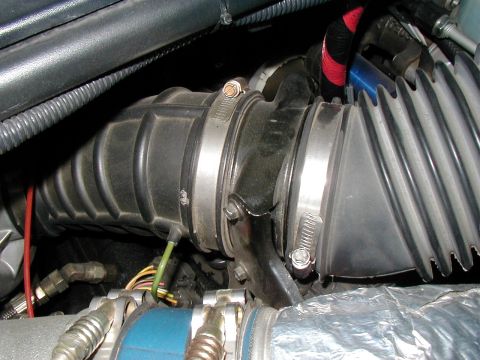

2002 Ford Excursion - The stock fume collector location

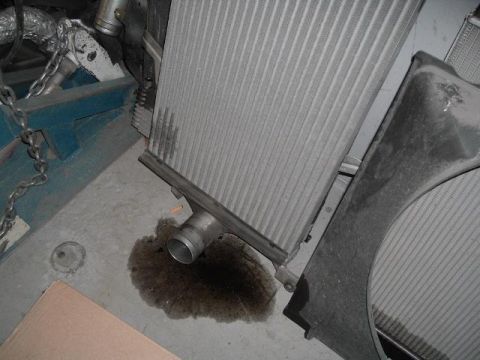

2002 Ford Excursion - A fine example of an intercooler removed before CCV mod,yuck!!! Imagine what that oil coating does for air cooling efficiency,nothing at al…

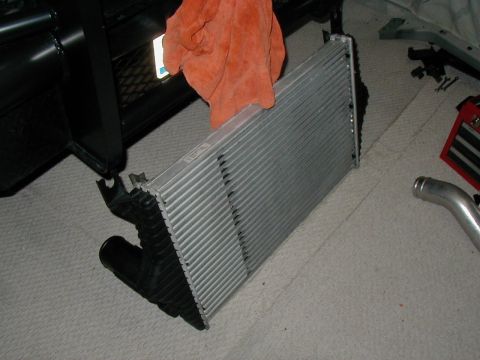

2002 Ford Excursion - Intercooler cleaned up and ready to be re-installed

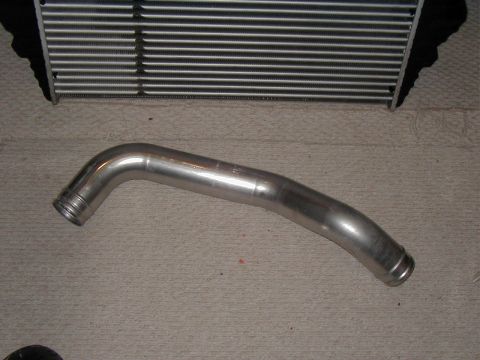

2002 Ford Excursion - Right side charge tube cleaned up and ready to be re-installed
