AC Modification

From 2002 Ford Excursion “Diesel Wagon” — documented by CHPMustang.

16 photos
← Back to this vehicle

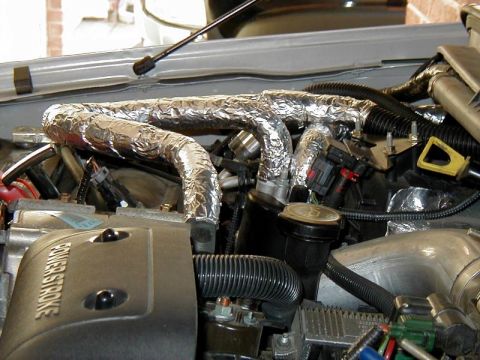

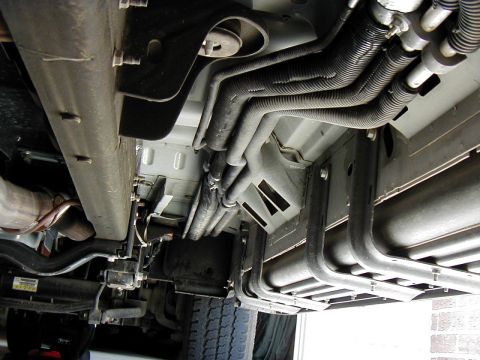

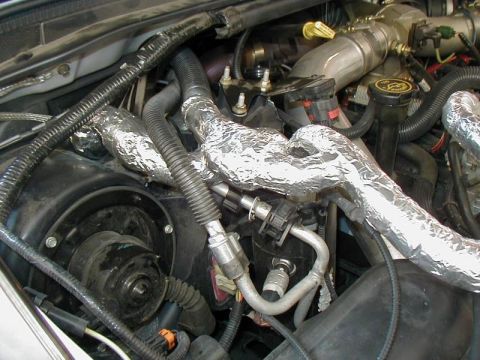

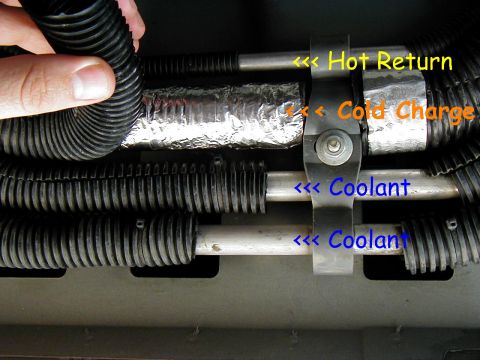

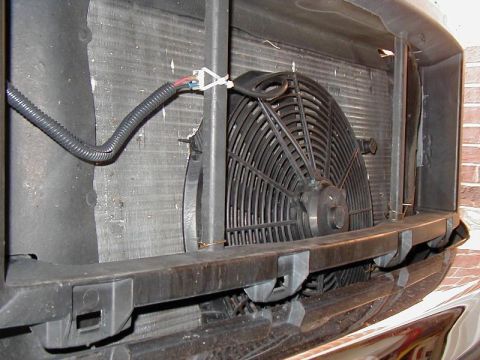

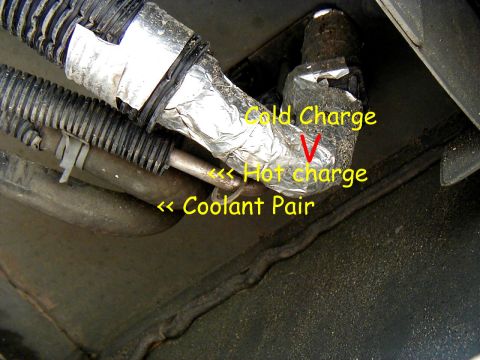

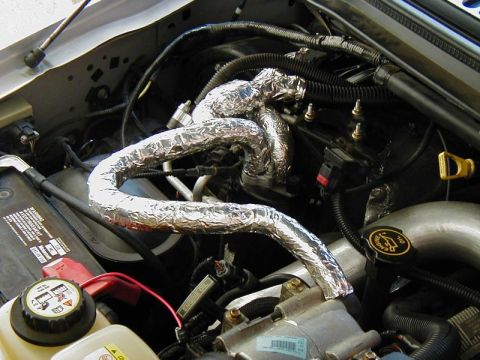

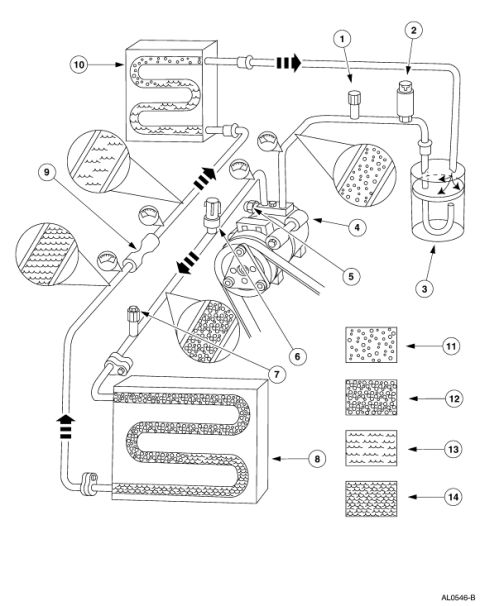

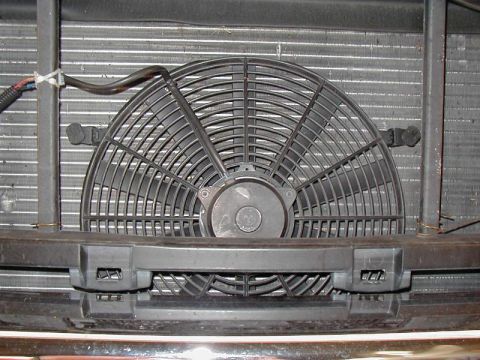

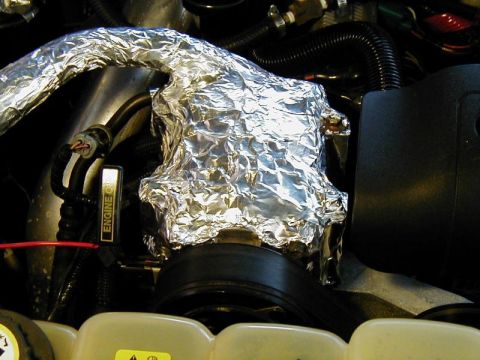

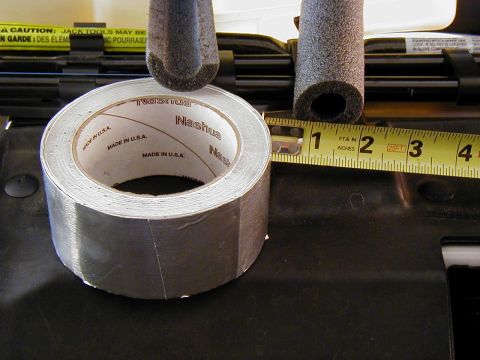

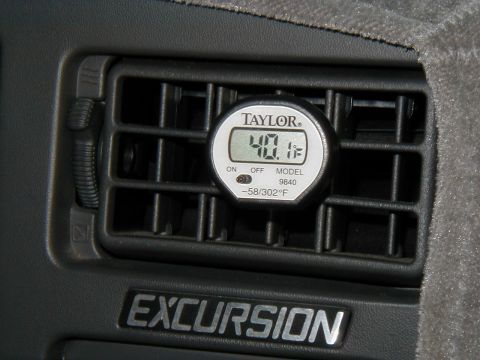

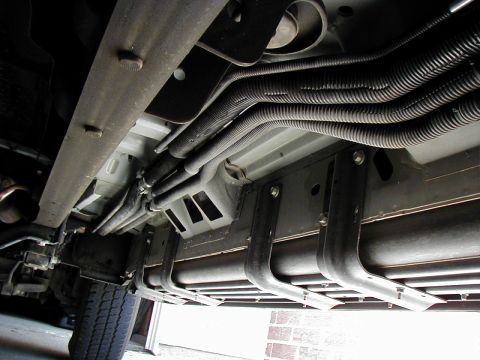

2002 Ford Excursion - 5/8" ID insulation and a roll of nashua or alike 2" wide aluminum duct tape. 2002 Ford Excursion - On the cold charge line remove the plastic wire loom covering then remove the very thin cheepo insulation,set aside the wire loom covering. 2002 Ford Excursion - There's about 4 mounting clamps holding up the 4 lines to the bottom of the truck body which will have to be dropped in order to remove the… 2002 Ford Excursion - The underside of a vehicle reveals a complex network of hoses and structural components. 2002 Ford Excursion - Photo of the cold charge line re-insulated prior to entering from under the Auxiliary climate control unit. 2002 Ford Excursion - Typical late model Ford AC system layout 2002 Ford Excursion - Taylor Digital Temperature Probe 2002 Ford Excursion - An electric cooling fan is mounted in front of the radiator, with wiring connected. 2002 Ford Excursion - Close-up view of an aftermarket electric cooling fan installed in front of a vehicle's radiator assembly. 2002 Ford Excursion - Overview of the cold lines I insulated 2002 Ford Excursion - Insulated pipes and hoses in an engine bay, with a battery and other engine components visible. 2002 Ford Excursion - Close-up of an engine bay showing modified exhaust components wrapped in heat-resistant material. 2002 Ford Excursion - Some people have criticized me for insulating the compressor but I found that the compressor at least on the Powerstroke Diesel is cold whe… 2002 Ford Excursion - Close-up of an engine component, possibly a vacuum actuator, with visible text indicating 'CHP Mustang 2007'. 2002 Ford Excursion - Close-up view of engine components, including hoses and insulated pipes, with watermarks indicating the source. 2002 Ford Excursion - Close-up view of vehicle suspension parts and tire, with identifying text indicating 'CHP Mustang 2007'.
