Seat Install Temp

From 2001 Ford Crown Victoria “Christine”, documented by djbruce26.

13 photos
← Back to this vehicle

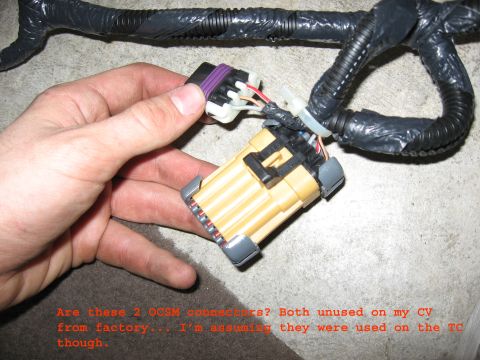

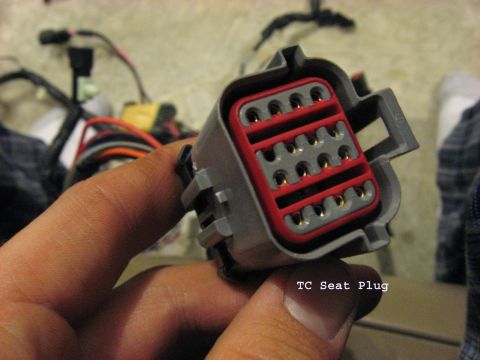

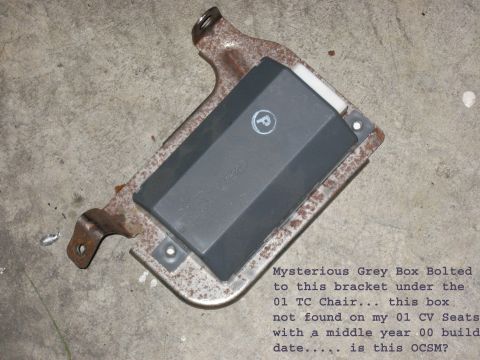

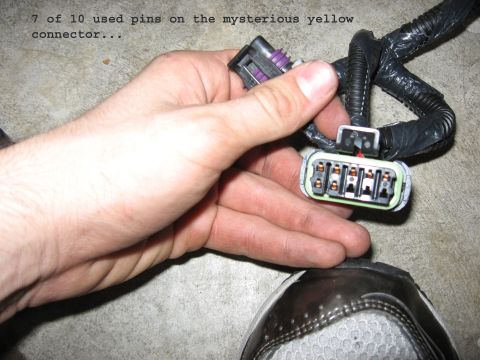

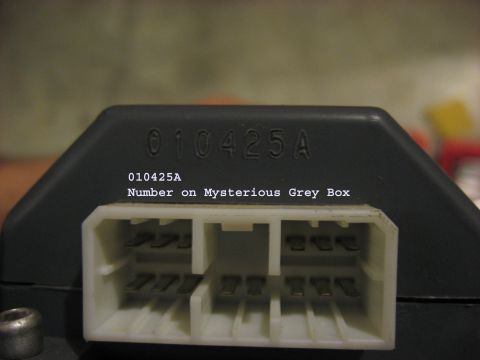

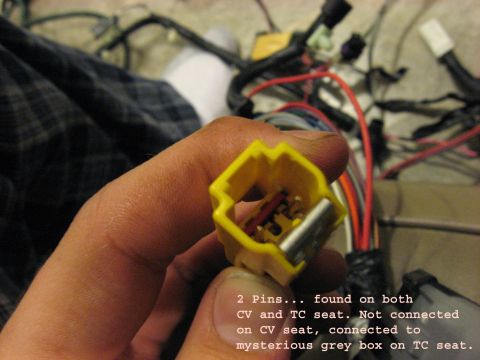

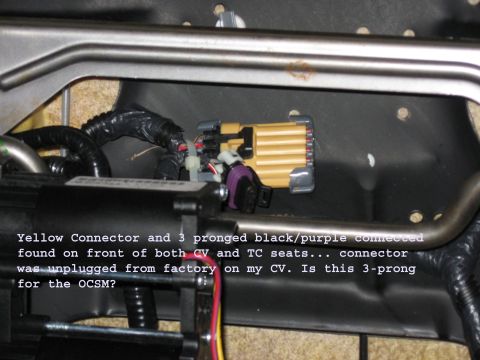

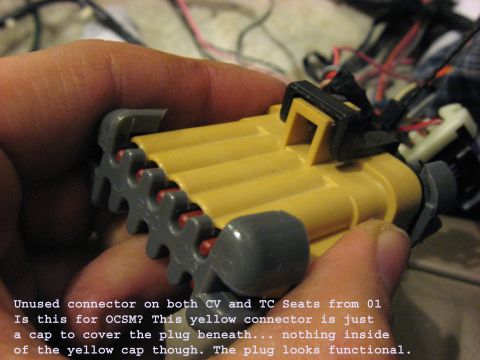

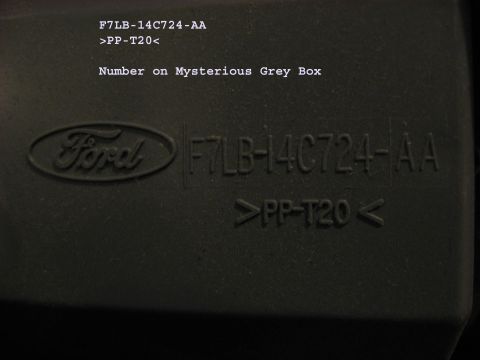

2001 Ford Crown Victoria - A close-up shows a multi-pin electrical connector, labeled 'TC Seat Plug', held by a hand. 2001 Ford Crown Victoria - A hand holds a yellow multi-pin automotive wiring connector with a grey terminal lock and black latch, part of a seat wiring harness with r… 2001 Ford Crown Victoria - Question about unused OCSM connectors, possibly from a 2001 Ford Crown Victoria, potentially used on a TC. 2001 Ford Crown Victoria - A hand holds a grey ten-cavity automotive connector face-up to show its populated terminals and green seal, with a taped wiring harness and… 2001 Ford Crown Victoria - Close-up under the front of a removed seat frame showing a yellow multi-pin airbag connector and a purple three-prong connector on loom-tap… 2001 Ford Crown Victoria - A gray plastic Ford-branded electronic module bolted to a rusty seat-frame bracket, laid on a concrete floor and photographed from above. O… 2001 Ford Crown Victoria - Embossed Ford logo and part number F7LB-14C724-AA on a grey plastic component. 2001 Ford Crown Victoria - Macro shot of a grey plastic electronic control module with the number "010425A" molded into its case above a white multi-pin blade connect… 2001 Ford Crown Victoria - A hand connects a wiring harness to a seat cushion, with text noting wire colors. 2001 Ford Crown Victoria - A hand holds a four-pin electrical connector, with text indicating the pin count. 2001 Ford Crown Victoria - Close-up of seat foam showing an electrical connector and text indicating it appears on upper and lower seat pads. 2001 Ford Crown Victoria - Close-up of a label on a car seat heating element, showing part number and manufacturing date. 2001 Ford Crown Victoria - A yellow electrical connector with two pins is held in a hand, with wiring visible in the background.
