ADTR 98-02 intercooler project

From 1998 Ford Crown Victoria “Jade”, documented by RocketCouch.

24 photos
← Back to this vehicle

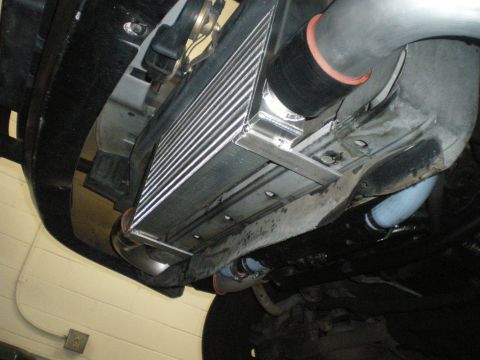

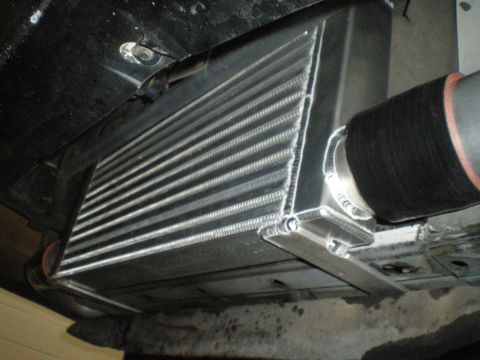

1998 Ford Crown Victoria - Engine-bay view of a polished centrifugal supercharger feeding a black intake pipe with an orange coupler. 1998 Ford Crown Victoria - Close-up of a black intake pipe joined by an orange silicone coupler routed past hoses in an engine bay. 1998 Ford Crown Victoria - engine bay close-up showing a polished aluminum charge pipe routed beside a blue silicone hose and accessory components. 1998 Ford Crown Victoria - under-front view of a vehicle showing the radiator edge, twin horns, and a metal support panel with handwritten marks. 1998 Ford Crown Victoria - engine bay showing multiple aluminum charge pipes and a blue silicone hose routed across the top of the engine. 1998 Ford Crown Victoria - aluminum bar-and-plate intercooler mounted behind the front bumper, viewed from below with the vehicle on a lift. 1998 Ford Crown Victoria - low-angle underside view of an aluminum intercooler core connected to a black silicone coupler on its end tank. 1998 Ford Crown Victoria - close-up of a vehicle tire and fender area, the sidewall marked 285/80R16, with suspension parts visible behind. 1998 Ford Crown Victoria - angled underside view of an aluminum bar-and-plate intercooler joined to a black silicone boot on its end tank. 1998 Ford Crown Victoria - aluminum front-mount intercooler with a black silicone coupler installed below a vehicle, shot from underneath. 1998 Ford Crown Victoria - underside view showing blue silicone hoses with clamps and a polished aluminum pipe routed near suspension components. 1998 Ford Crown Victoria - engine bay close-up showing a cast housing marked 47, serpentine belt pulley, and light blue coolant hoses. 1998 Ford Crown Victoria - dim engine bay view of polished aluminum charge pipes and a blue silicone hose routed near the radiator. 1998 Ford Crown Victoria - aluminum front-mount intercooler with several mandrel-bent charge pipes and silicone couplers laid out on a garage floor. 1998 Ford Crown Victoria - mandrel-bent aluminum charge pipe joined by black couplers to an intercooler end, with an orange silicone elbow, on concrete. 1998 Ford Crown Victoria - aluminum charge pipe connected to an intercooler end tank with a fitting, photographed on a concrete garage floor. 1998 Ford Crown Victoria - S-shaped mandrel-bent aluminum pipe with a welded mounting tab, leaning upright against a basement wall. 1998 Ford Crown Victoria - aluminum intercooler flanked by curved aluminum charge pipes with red-lined silicone couplers, laid on a concrete floor. 1998 Ford Crown Victoria - close-up of a black Turbosmart blow-off valve mounted near an aluminum tube fitted with a red-lined silicone coupler. 1998 Ford Crown Victoria - hand holds an aluminum bar-and-plate intercooler core with a silicone-coupled outlet, angled over a concrete floor. 1998 Ford Crown Victoria - aluminum intercooler with a welded diagonal support bar and a black silicone coupler, resting on a shop floor. 1998 Ford Crown Victoria - hand holds a long aluminum extrusion fitted with a welded mounting bracket above a stained concrete floor. 1998 Ford Crown Victoria - hand steadies a large scratched brushed-aluminum panel with bolt holes along its edges, set on a shop floor. 1998 Ford Crown Victoria - close-up of an engine bay showing the air intake tube, throttle body and surrounding hoses on a V8 engine.
