mock up

From 1972 Ford Ranchero, documented by 2seater.

15 photos
← Back to this vehicle

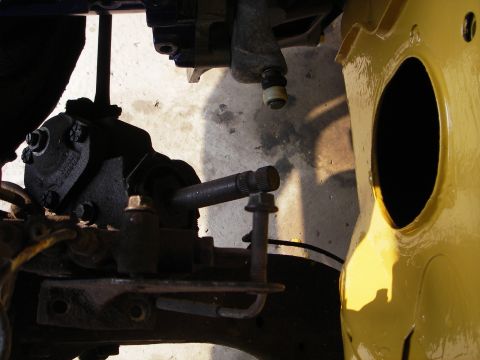

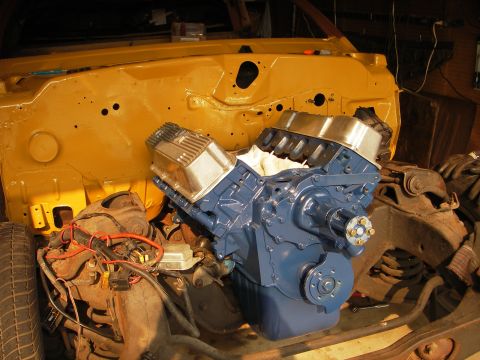

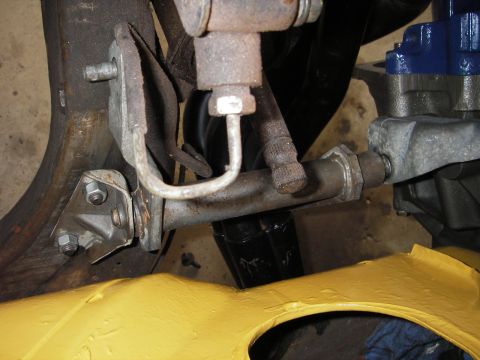

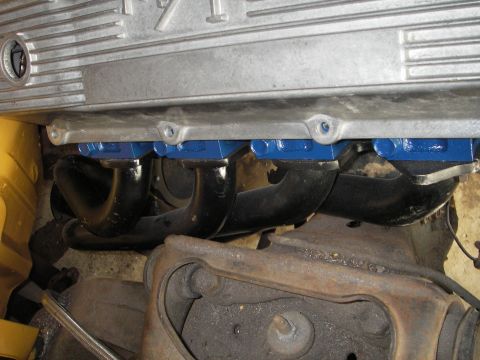

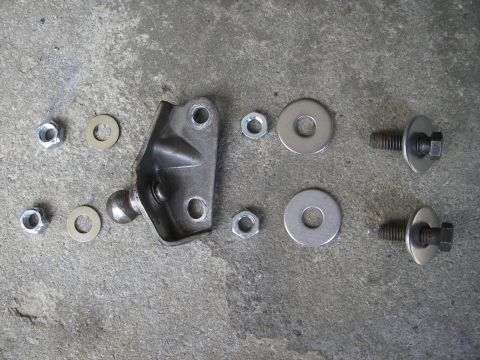

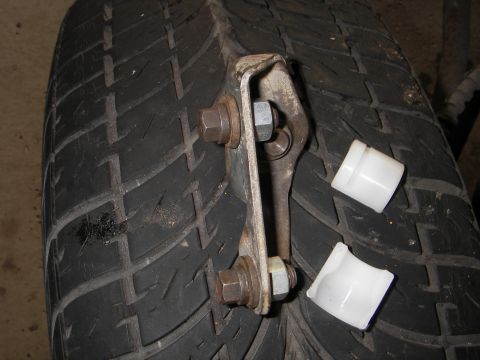

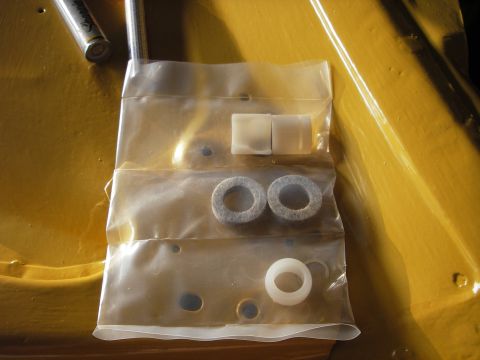

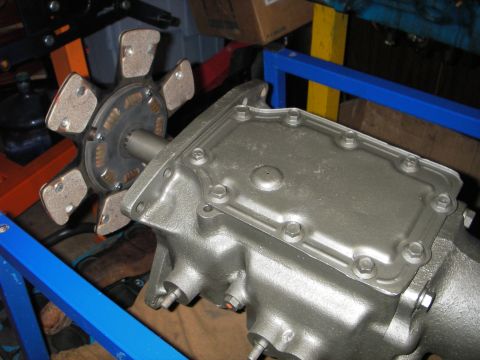

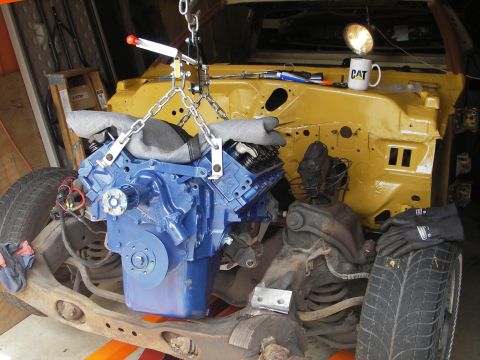

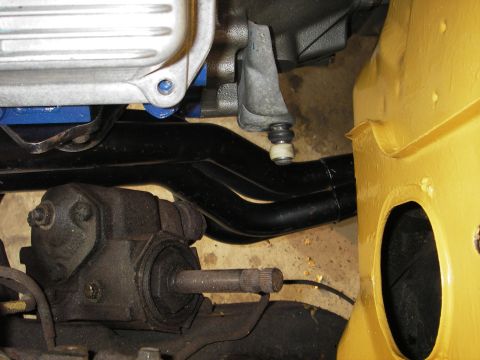

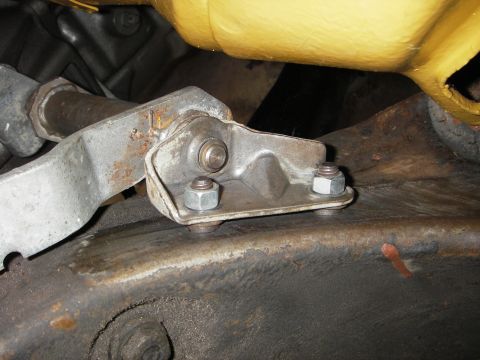

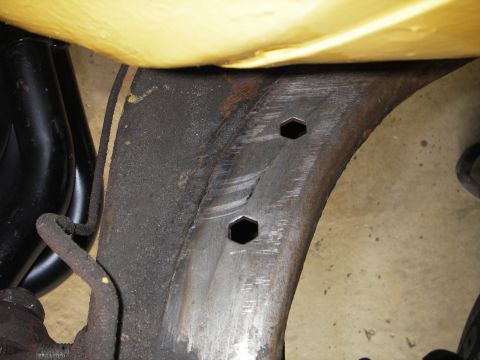

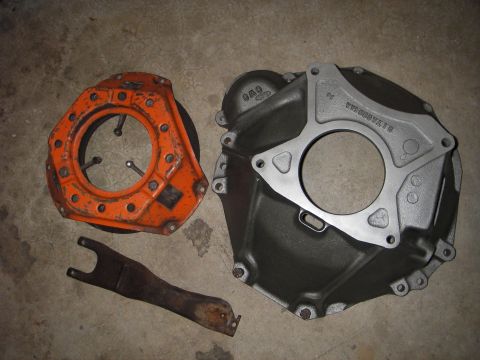

1972 Ford Ranchero - long block set in place on all 3 supports 1972 Ford Ranchero - a lot has to happen in this space, Z-bar linkage, header, steering... 1972 Ford Ranchero - the factory punched these holes for the frame side Z-bar pivot but they didn't add the bolt bosses because this is originally an auto trans… 1972 Ford Ranchero - drivers side header slid in from the bottom no problem 1972 Ford Ranchero - passenger side slid in from the top even easier 1972 Ford Ranchero - Z-bar bushing kit 1972 Ford Ranchero - a header bolt(7/16" hex head) and a washer nutted into the frame side pivot to replicate the height of the bolt bosses in the donor car 1972 Ford Ranchero - frame side pivot set into place with Z-bar mocked in also 1972 Ford Ranchero - and the header is happy with the whole plan too! 1972 Ford Ranchero - here's the stack of hardware; 7/16"-14 grade 8 bolts from the stash, a stainless fender washer on each side of the frame, a jam nut to keep… 1972 Ford Ranchero - Close-up of a clutch assembly and transmission housing, likely for a vehicle restoration project. 1972 Ford Ranchero - Clutch housing and fork components laid out on a concrete surface. 1972 Ford Ranchero - Engine installation in progress on a car chassis, with a CAT mug nearby. 1972 Ford Ranchero - Two black metal automotive parts with ball joints are shown resting on a quilted grey surface. One part has a circular hole and the other h… 1972 Ford Ranchero - Two black metal brackets with ball studs are shown resting on a quilted grey surface. The brackets appear to be new or recently restored, w…
