Floor Courtesy Lamps

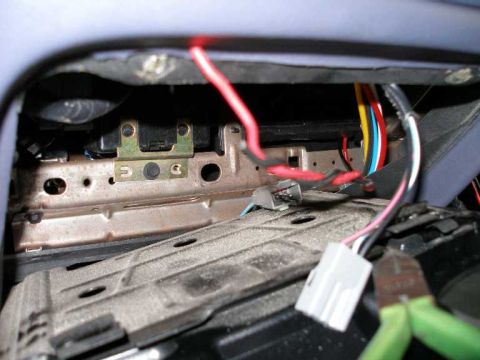

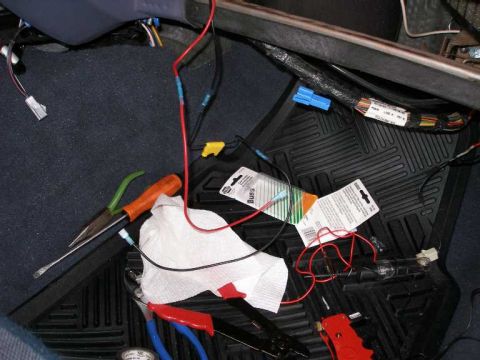

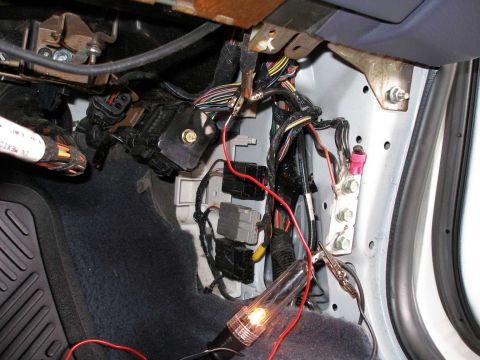

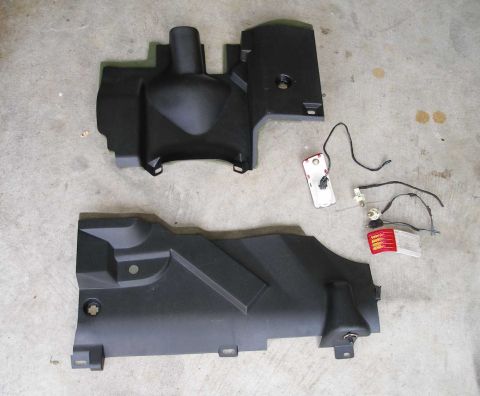

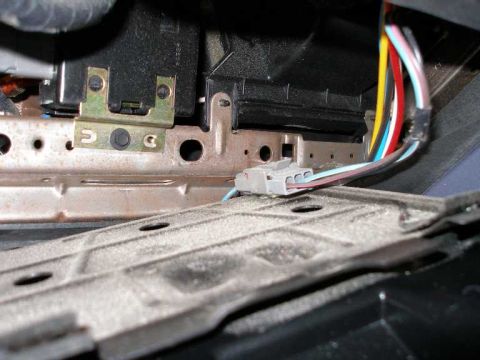

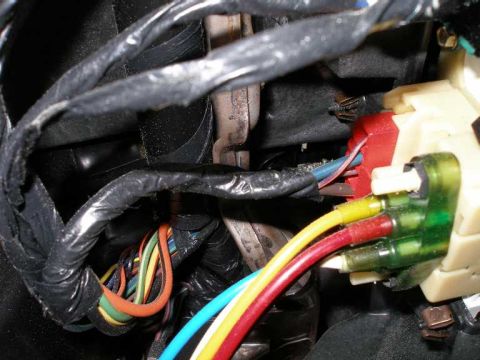

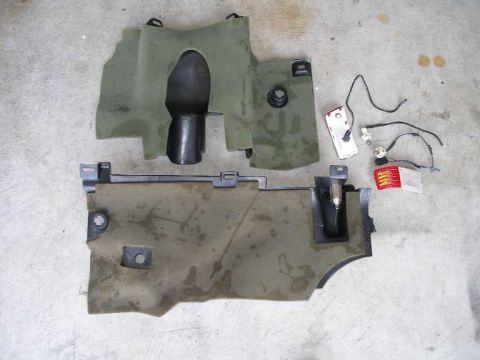

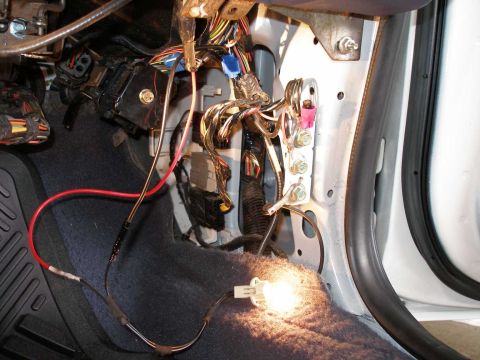

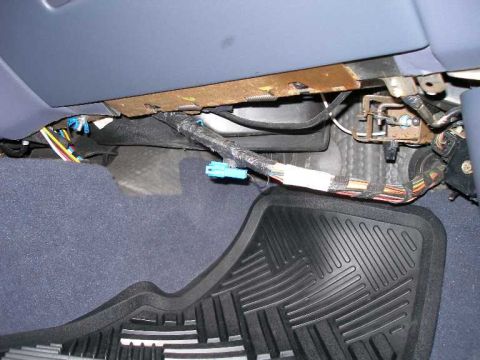

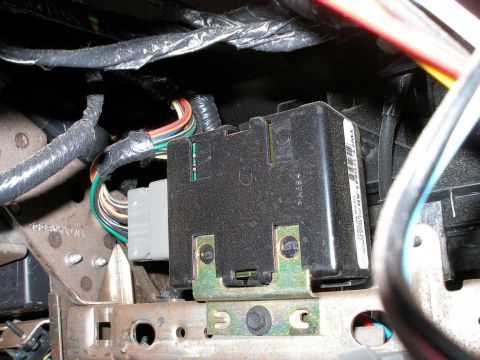

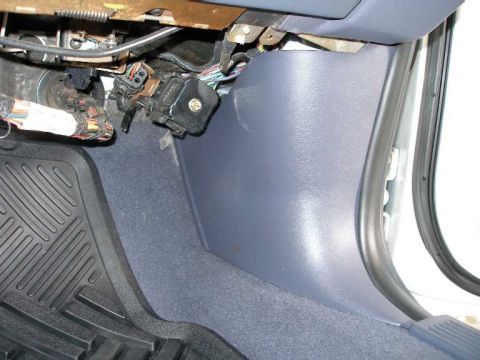

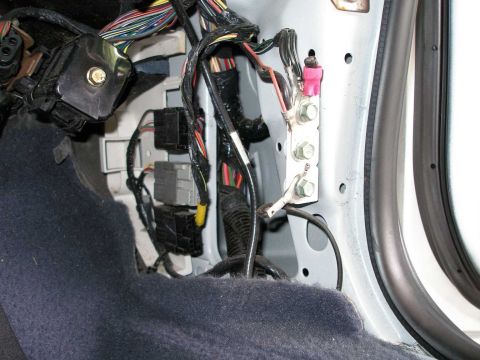

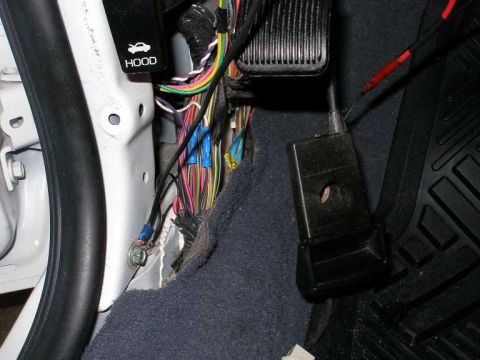

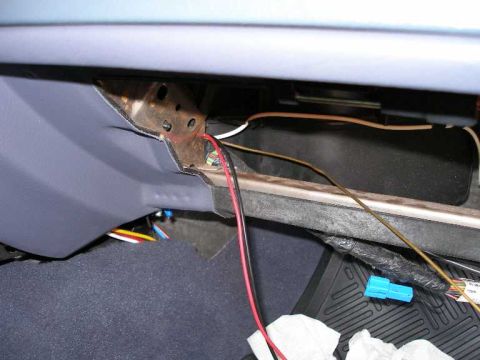

Score! Now out-of-production insulated panels, door courtesy lenses, and courtesy bulb connectors from a '96 Grand Marquis. Owner Note the insulation and 12V accessory outlet. Owner What the passenger side footwell looked like before installing the courtesy lamp and panel. Note the blue connector for "dark car mode". Owner This panel must be removed to access the dome light wire. It is black with a light blue stripe. Owner Note the clipped grounds from formerly installed emergency equipment. The dome light wire is in the wiring bundle at the top of the picture. Owner Use a test light to ensure that you have found the correct wire to splice into for the courtesy lamp. Owner All wired up. Owner The panel also have a 12V accessory outlet. I spliced into the existing 12V outlet (cig lighter) for power and grounding. With the cupholde… Owner Mystery box, under the dash. Owner Miscellaneous connectors under the dash, visible when the tray is removed Owner Here is the wiring for the additional 12V outlet. Owner The wiring for the additional 12V outlet. Owner The wiring for the additional 12V outlet, with the required connectors. Owner I ran a new ground for the driver's side courtesy lamp. This ground is under the driver's side kick panel. Owner Ready for install. Owner Apparently, changes to the 2001 Panthers causes the pre-2001 panel to not fit properly. Until I acquire a 2001 to present panel, I am using… Owner The driver's side panel fits perfectly. Owner Done. Owner Interior view of the driver's side footwell, showing pedals and floor mats. AI caption The results. Owner The results. Owner
