187 hits | 49.36 KB | Posted: 6/7/14

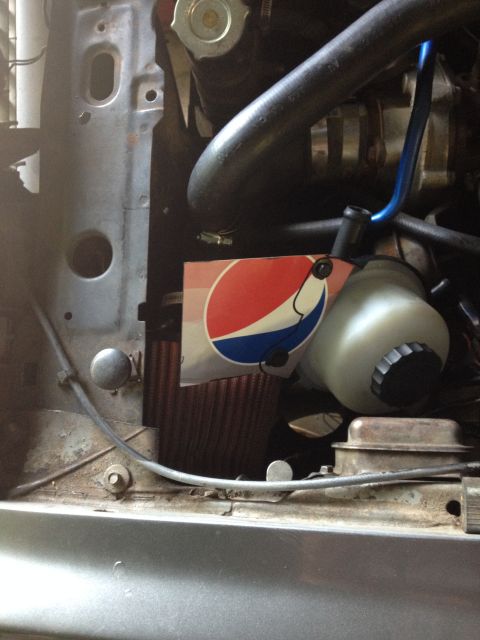

The start of any bracket fabrication - cardboard. I like old soda boxes but any will do. This is jus...

202 hits | 57.67 KB | Posted: 6/7/14

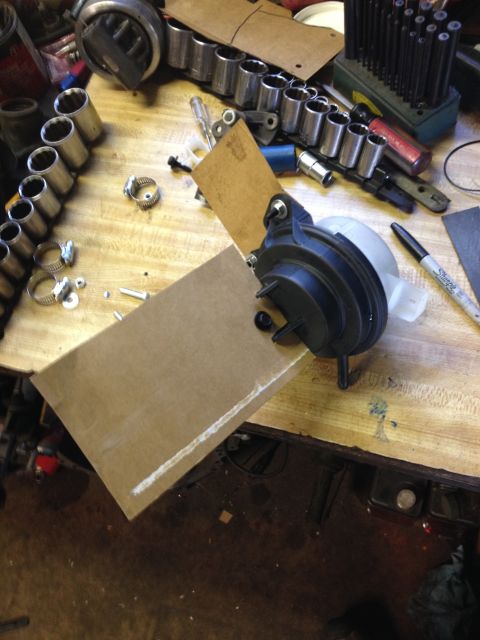

The top bracket is pretty close so it's time to start on the bottom bracket. The two pieces will eve...

166 hits | 48.99 KB | Posted: 6/7/14

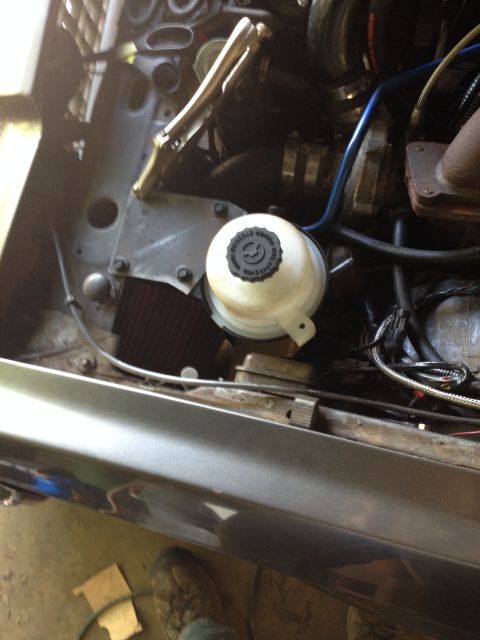

The top piece of steel is now cut out so I can hold the reservoir steady while I mark and trim the c...

185 hits | 46.86 KB | Posted: 6/7/14

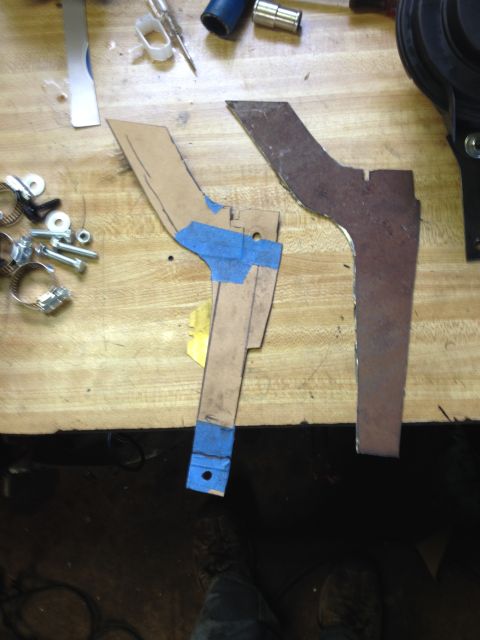

Steel rough cut for the lower bracket. I ended up having to trim this down quite a bit. The angle se...

215 hits | 51.33 KB | Posted: 6/7/14

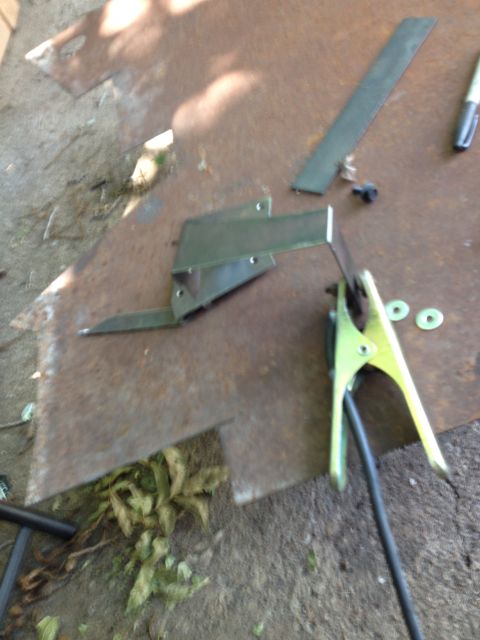

About to weld the upright to the main bracket. In this picture the upper and lower pieces are togeth...

212 hits | 58.94 KB | Posted: 6/7/14

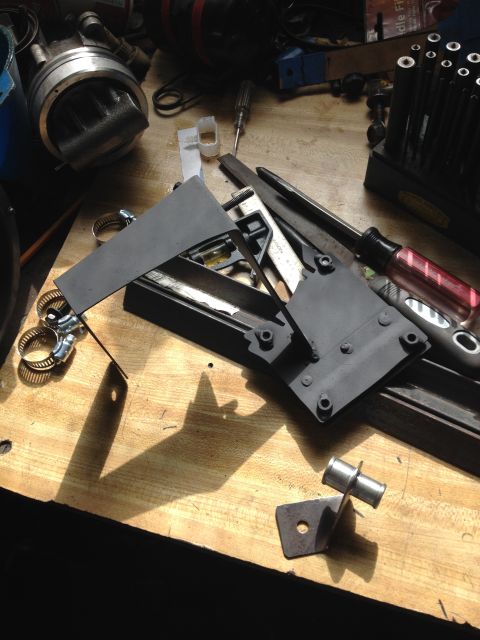

Both brackets. The big bracket holds the reservoir and the smaller holds the 5/8" to 3/4" ...

242 hits | 66.71 KB | Posted: 6/7/14

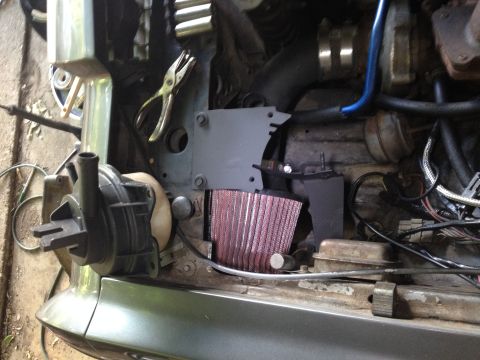

Bracket installed. You can see the trimming I had to do so the bracket would clear all the reinforci...

197 hits | 70.08 KB | Posted: 6/7/14

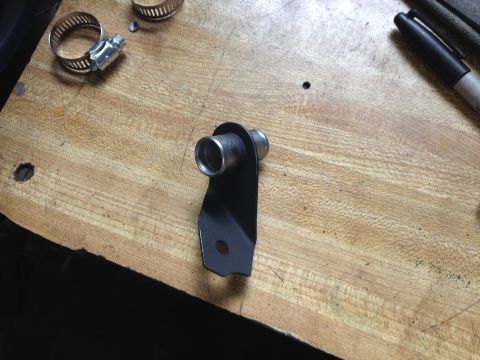

Four Seasons 5/8" to 3/4" adapter. I welded it to the bracket and ground the welds flush. ...

232 hits | 65.5 KB | Posted: 6/7/14

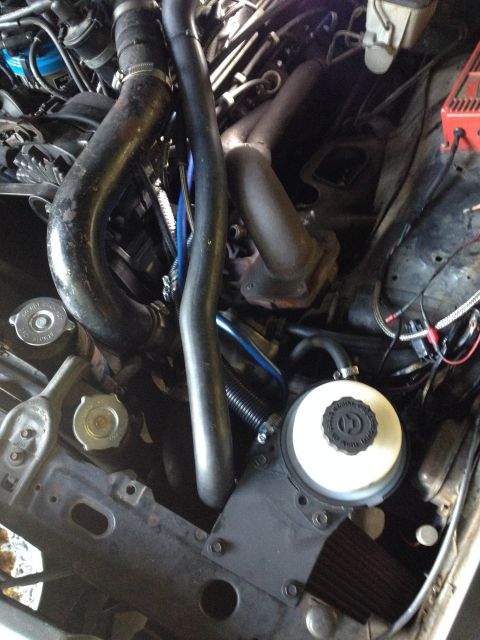

Complete install. Took a few cycles to get the air bled out of the pump and gear but it seems to wor...
