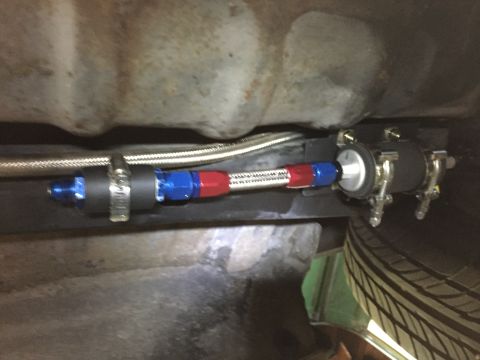

Pump and pre-filter mounted to frame behind fuel tank.

107 hits | 47.3 KB | Posted: 5/20/16

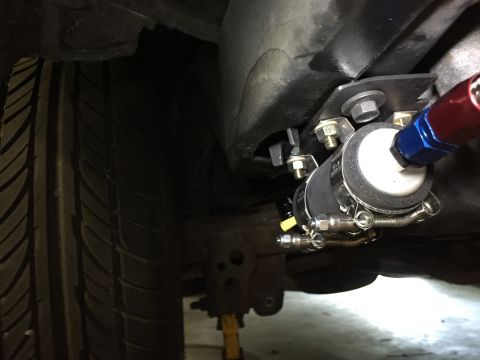

Walbro fuel pump mounted.

106 hits | 49.78 KB | Posted: 5/20/16

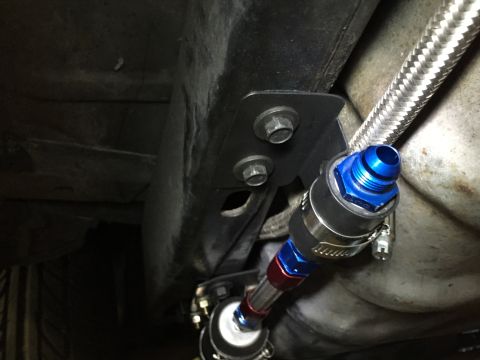

Pre-filter mounted.

84 hits | 49.64 KB | Posted: 5/20/16
Heat/splash shield mounted over fuel pump. Pic upside down for some reason.

90 hits | 75.36 KB | Posted: 5/20/16

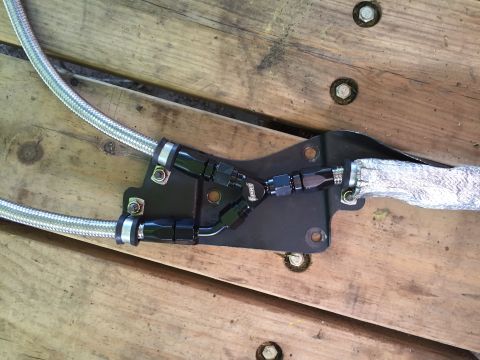

Y-block on bracket to mount behind cylinder head.

86 hits | 44.3 KB | Posted: 5/20/16

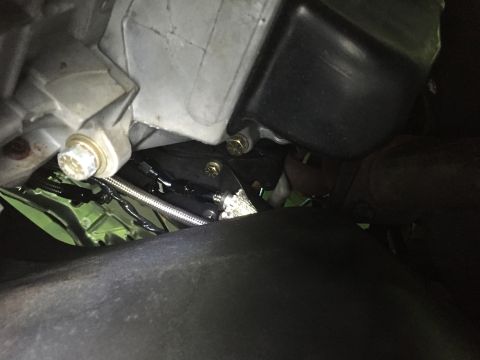

Y-block mounted on head. Pic from below.

78 hits | 51.05 KB | Posted: 5/20/16

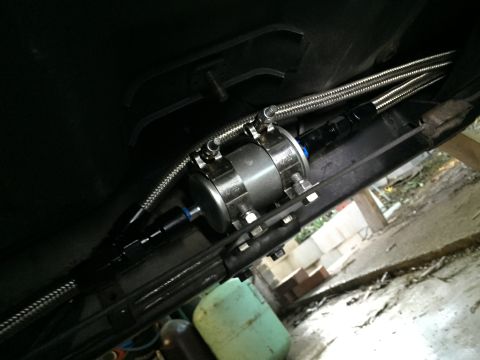

Fuel filter mounted and return line connected.

73 hits | 55.5 KB | Posted: 5/20/16

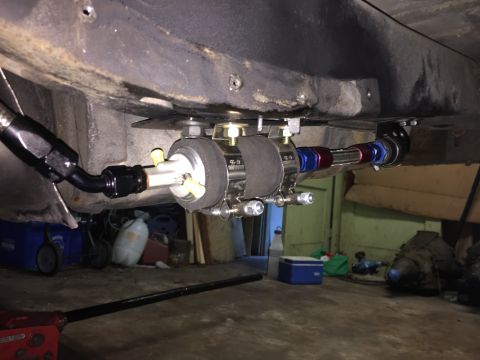

Fuel pump and pre-filter plumbed.

106 hits | 49.76 KB | Posted: 5/20/16

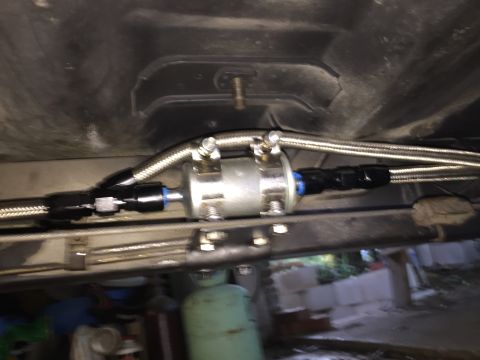

Filter and return.

82 hits | 54.46 KB | Posted: 5/20/16

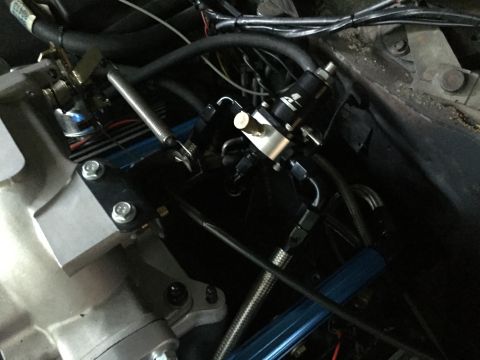

Fuel pressure regulator on bracket.

95 hits | 68.98 KB | Posted: 5/20/16

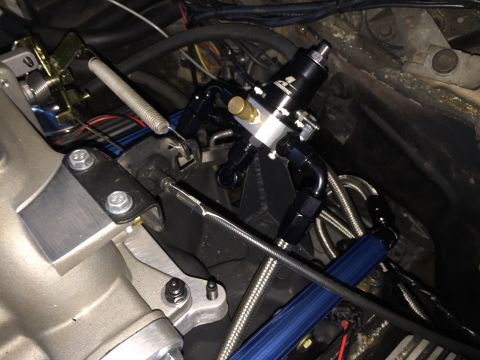

Fuel pressure regulator.
