Mercury Marauder Speedometer Install In 2003 P71

From 2003 Ford Crown Victoria “SOLD”, documented by mRdot.

18 photos
← Back to this vehicle

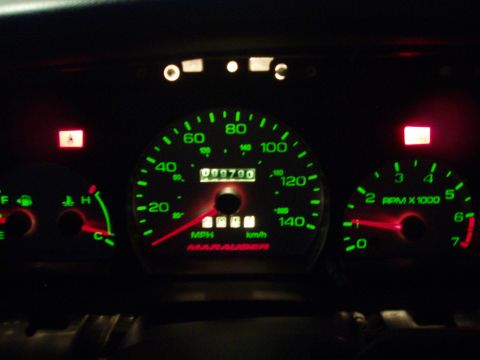

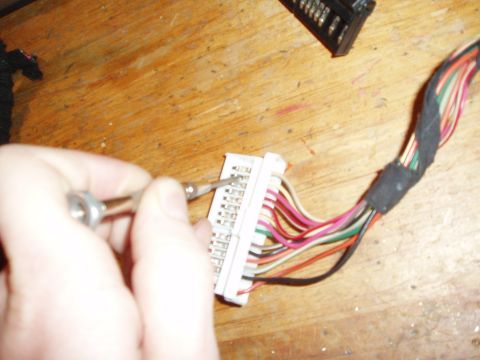

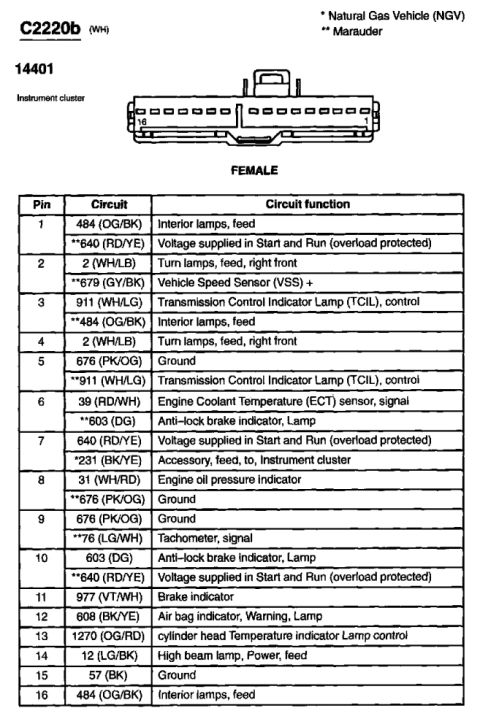

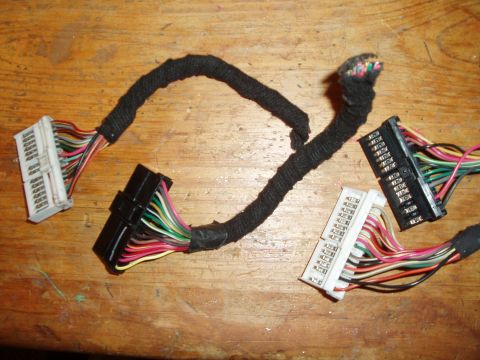

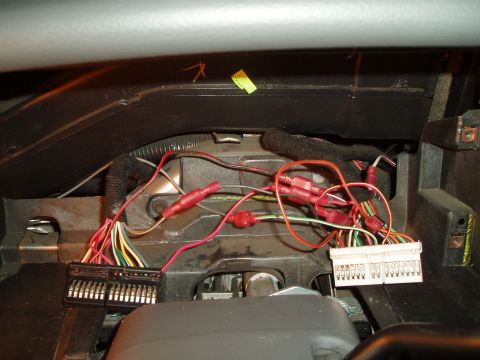

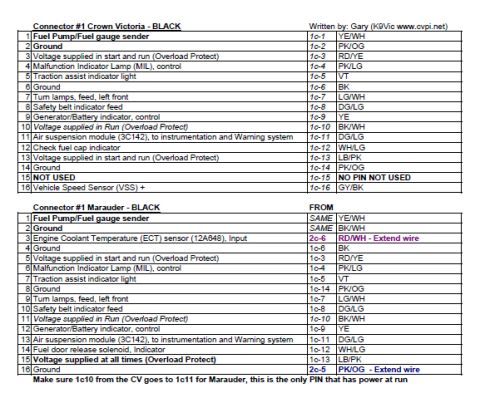

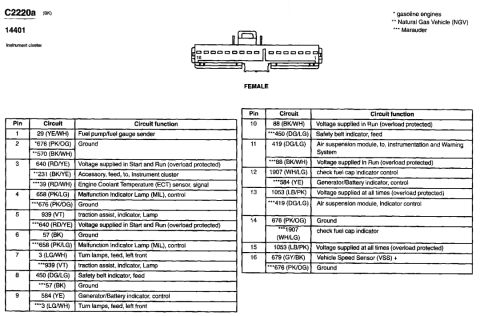

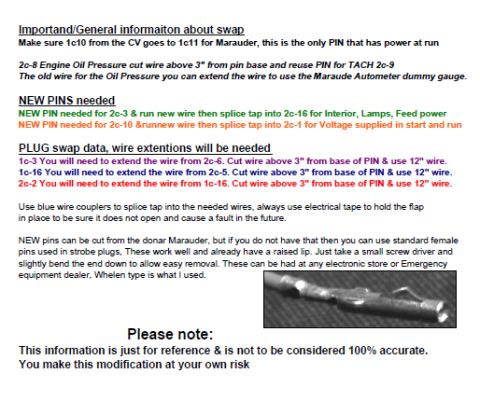

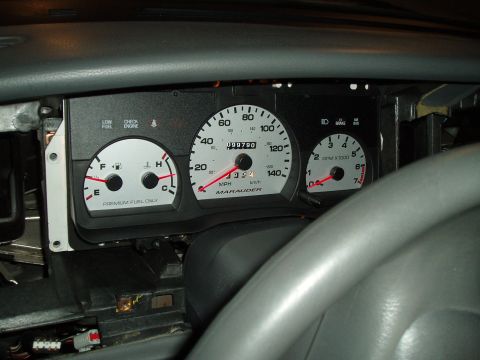

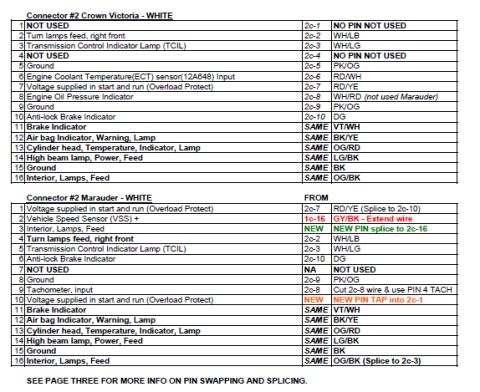

2003 Ford Crown Victoria - pre-install shot 2003 Ford Crown Victoria - 2003 CVPI Speedometer 2003 Mercury Marauder Speedometer bought it for $65 2003 Ford Crown Victoria - ** gray wire is coming though the firewall from the tach adaptor installed in the engine bay (see tach install before proceeding) wires bef… 2003 Ford Crown Victoria - factory wiring connector views for the black connector. 2003 Ford Crown Victoria - factory wiring connector views for the white connector. 2003 Ford Crown Victoria - this was taken from: http://s95316603.onlinehome.us/cvpi/cvpi-Mspeedo.html made by k9vic, his earlier guide had errors and i didn't have ti… 2003 Ford Crown Victoria - A wiring pinout reference chart comparing Connector #2 for the Crown Victoria (white) and Marauder (white), listing pin numbers, circuit de… 2003 Ford Crown Victoria - i dont recomment using the strobe pins, get OEM pins from a donor harness. 2003 Ford Crown Victoria - donor harness 2003 Ford Crown Victoria - pull out the plastic taps on each side of the harness and use a small screw driver at and angle to free the pins. 2003 Ford Crown Victoria - extra donor wires color matched for install 2003 Ford Crown Victoria - added donor wiring 2003 Ford Crown Victoria - all wired up 2003 Ford Crown Victoria - Close-up of a vehicle wiring area behind the dash, showing multiple wire harnesses with red crimp connectors, various colored wires (orange… 2003 Ford Crown Victoria - white/red wire for marauder gauge pod 2003 Ford Crown Victoria - fully connected, notice tach wire coming up from the left, connected to the light green/white wire in the white connector and the white/red… 2003 Ford Crown Victoria - installed with original mileage gears swapped, all tested and working correctly, few miles added in this shot after i corrected mph calibra… 2003 Ford Crown Victoria - night shot - everything working correctly
