Infinity Audio

From 2010 Hyundai Genesis “Coupe”, documented by SHOZ123.

9 photos
← Back to this vehicle

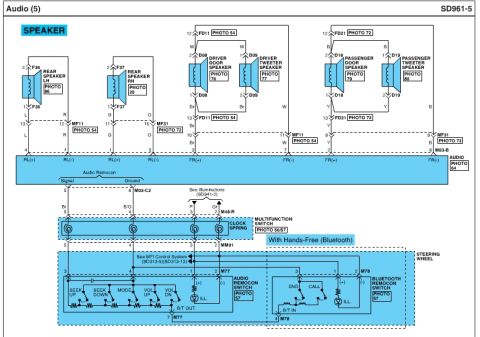

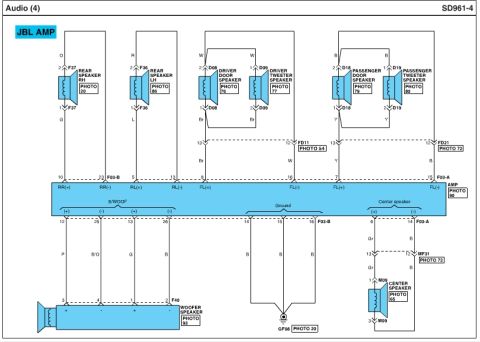

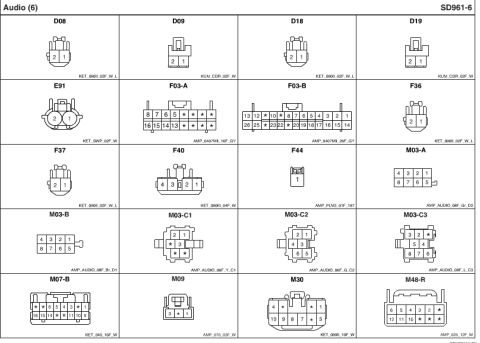

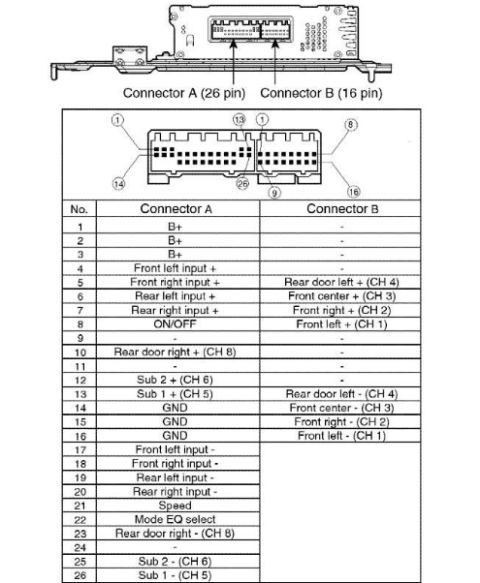

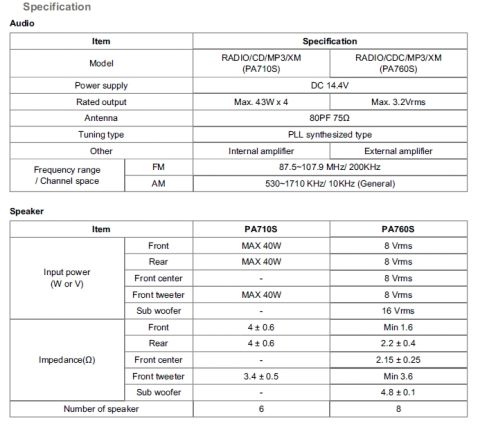

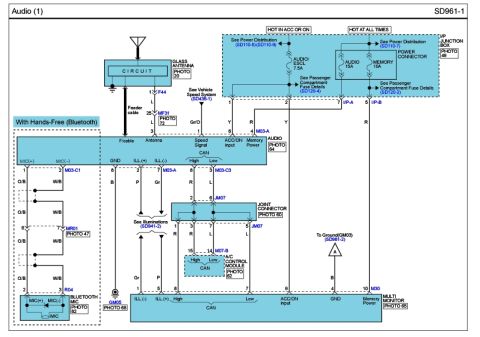

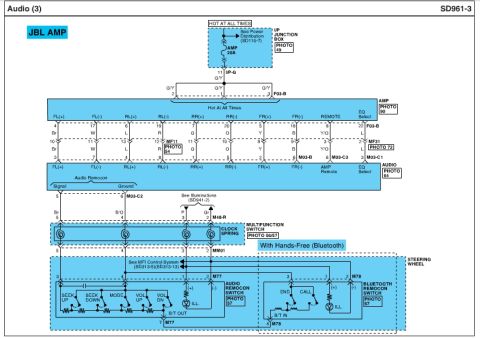

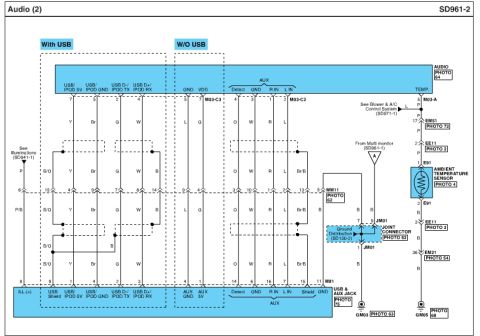

2010 Hyundai Genesis - This is a diagram showing the pinout for two connectors, Connector A (26 pin) and Connector B (16 pin), which are part of a vehicle's elect… 2010 Hyundai Genesis - This is a specification document for audio and speaker components, detailing models PA710S and PA760S. It lists items such as model, power… 2010 Hyundai Genesis - This is a wiring diagram for the Audio and Hands-Free (Bluetooth) system of a vehicle. It shows connections for the glass antenna, circuit,… 2010 Hyundai Genesis - This is a wiring diagram for the audio system of a 2010 Hyundai Genesis Coupe. It shows the connections for USB and AUX inputs, as well as… 2010 Hyundai Genesis - This is a wiring diagram for the JBL amplifier and audio system in a 2010 Hyundai Genesis. It details the connections for the speakers, rem… 2010 Hyundai Genesis - This is a wiring diagram for the JBL amplifier in a vehicle audio system. It shows the connections between the amplifier and various speake… 2010 Hyundai Genesis - This is a wiring diagram for the audio system in a vehicle, showing speaker connections and remote control inputs. 2010 Hyundai Genesis - This is a document showing various electrical connector diagrams for audio systems. Each connector is labeled with a code and a pinout diag… 2010 Hyundai Genesis - This image displays a diagram of audio connectors labeled M77, M78, M81, and R04, along with associated part numbers. The title of the docu…
