DRL Bypass

From 2002 Pontiac Grand Prix, documented by Chris Bradley.

12 photos
← Back to this vehicle

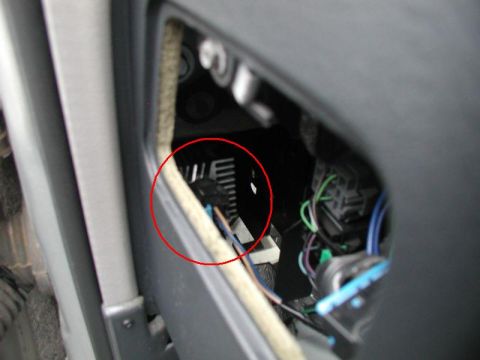

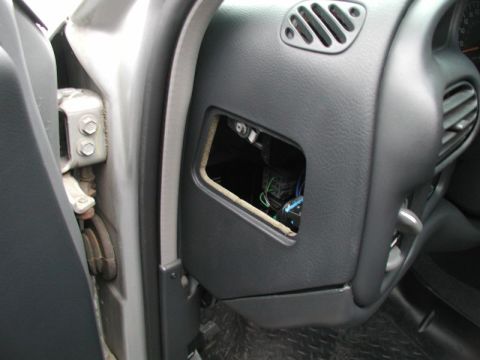

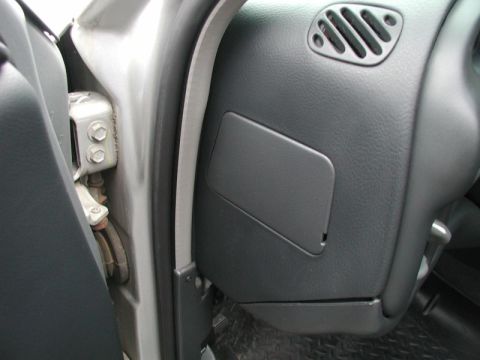

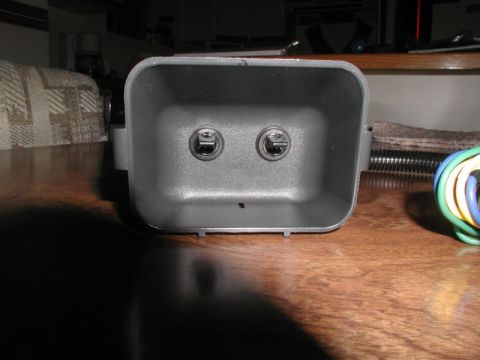

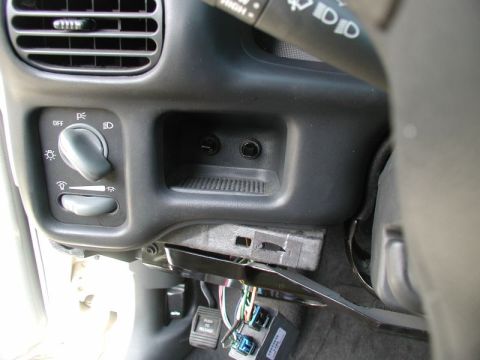

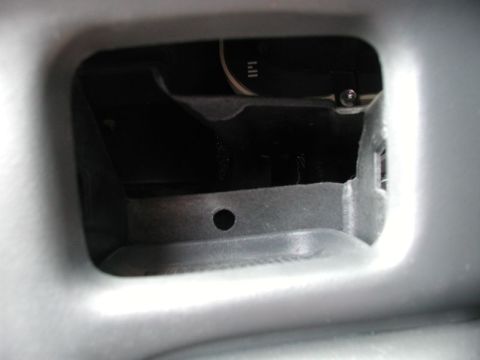

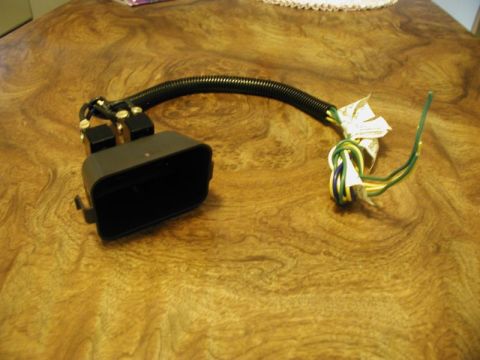

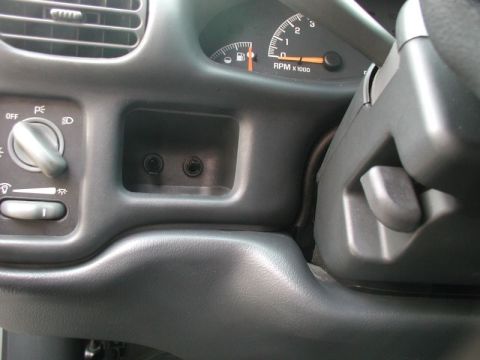

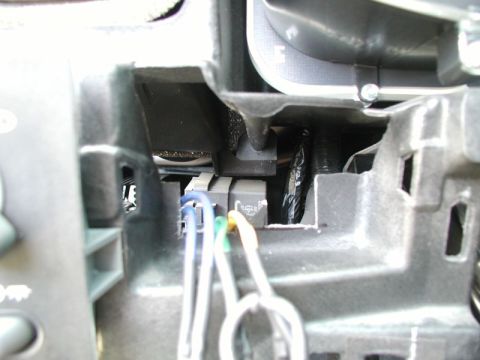

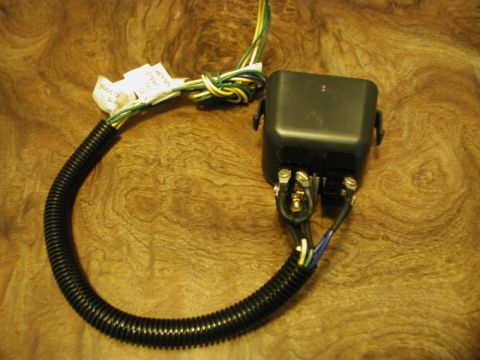

2002 Pontiac Grand Prix - Remove the access cover on the left side of the dash. 2002 Pontiac Grand Prix - Remove the access cover on the left side of the dash. 2002 Pontiac Grand Prix - Locate the DRL diode, cut the blue wire and connect both ends to a 15a, SPST switch; I used a Cole Hersee 54100. 2002 Pontiac Grand Prix - I put the switch in the pocket to the left of the steering wheel. I also attempted to put a switch on the sentinel, but that didn't work ou… 2002 Pontiac Grand Prix - I put the switch in the pocket to the left of the steering wheel. I also attempted to put a switch on the sentinel, but that didn't work ou… 2002 Pontiac Grand Prix - I put the switch in the pocket to the left of the steering wheel. I also attempted to put a switch on the sentinel, but that didn't work ou… 2002 Pontiac Grand Prix - A gray plastic housing with two circular openings is shown from the front, resting on a wooden surface. A bundle of colored wires emerges f… 2002 Pontiac Grand Prix - Some plastic will have to be removed to clear the switches. 2002 Pontiac Grand Prix - I left the part of the alignment hole for some added support. 2002 Pontiac Grand Prix - Dash trim panel back in place and switch tested. 2002 Pontiac Grand Prix - All done. 2002 Pontiac Grand Prix - All done.
