Door Panel Lights

From 2002 Pontiac Grand Prix, documented by Chris Bradley.

38 photos
← Back to this vehicle

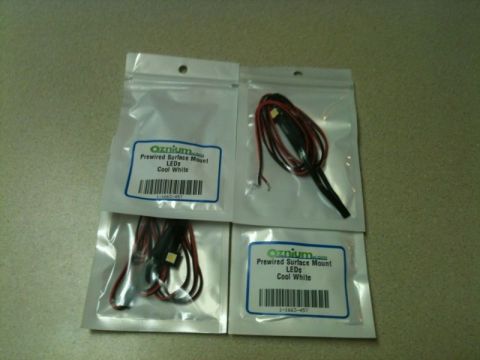

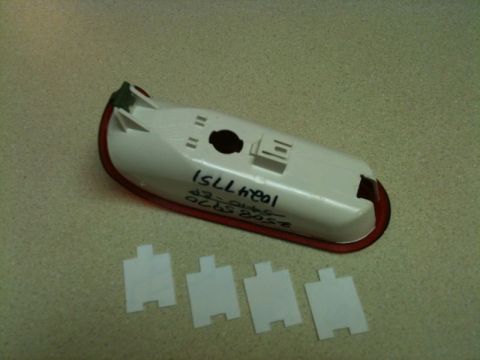

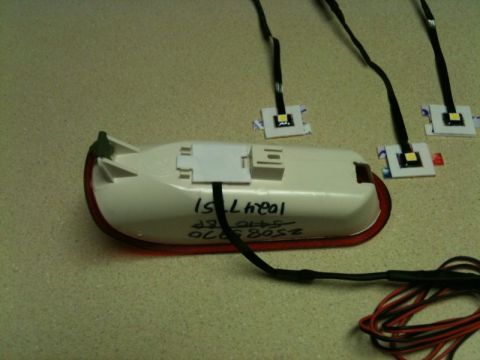

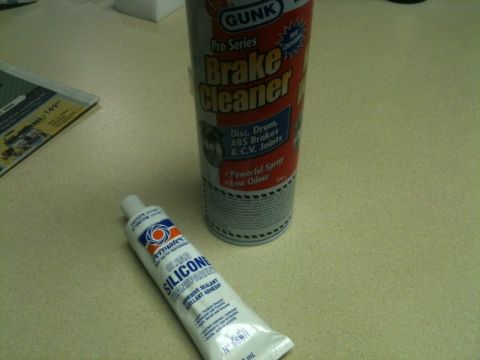

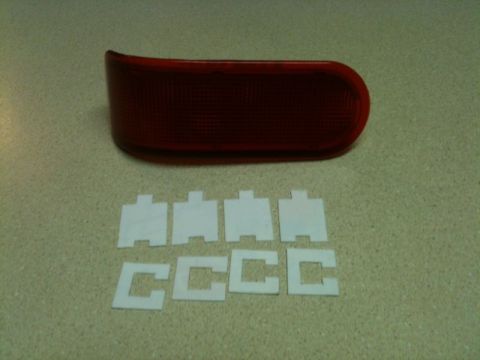

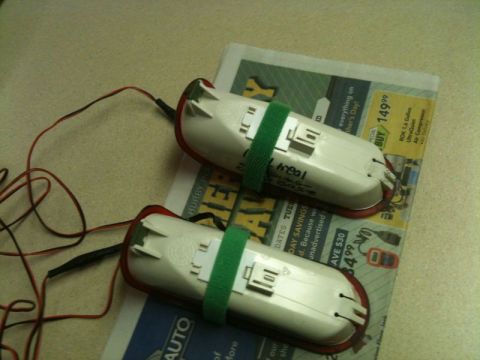

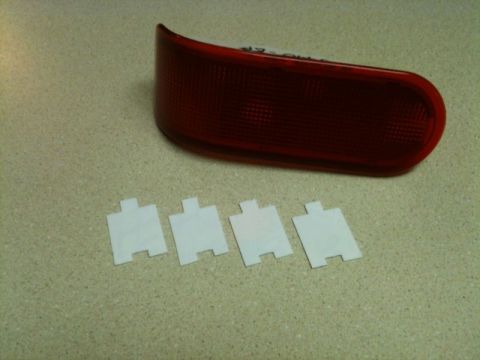

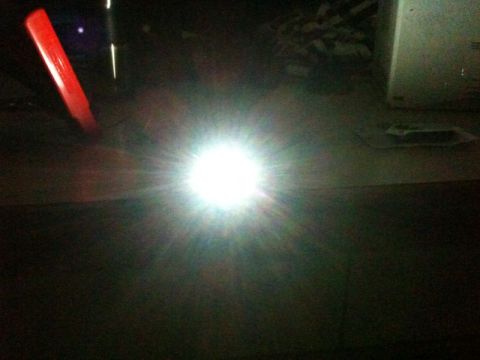

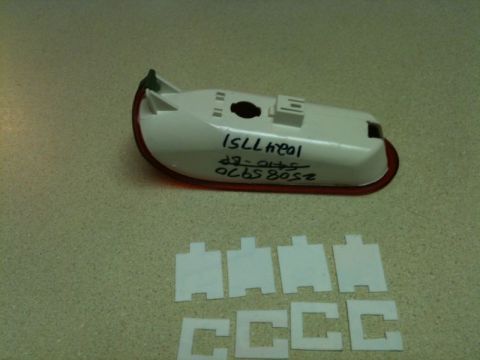

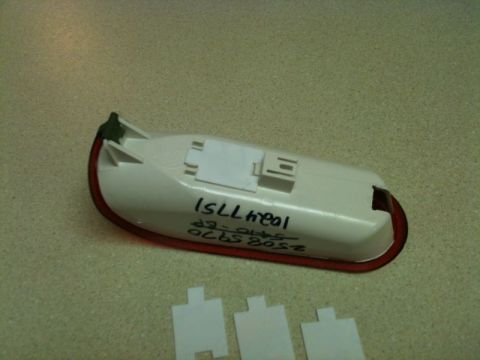

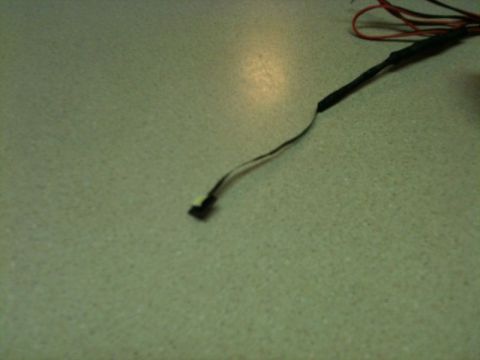

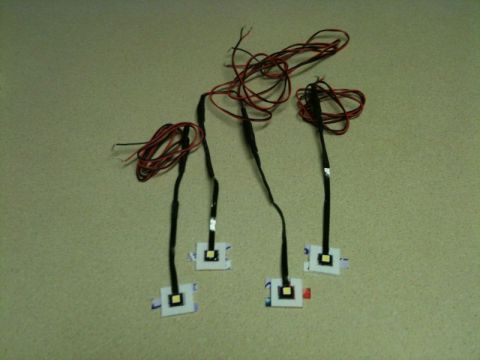

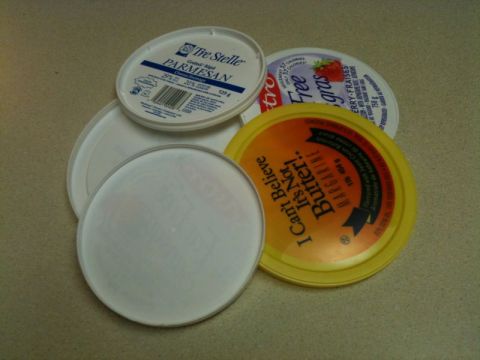

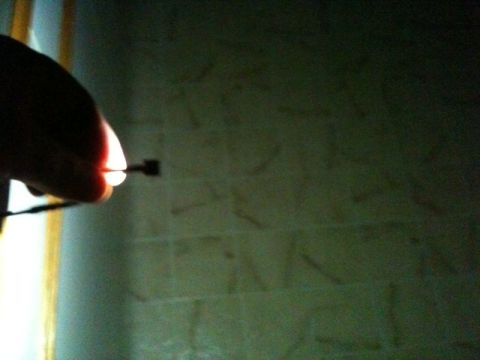

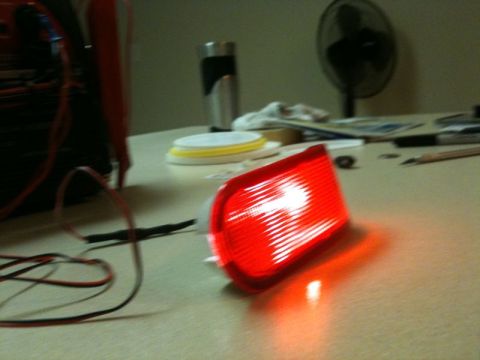

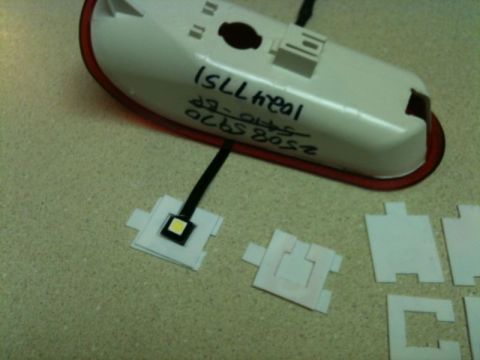

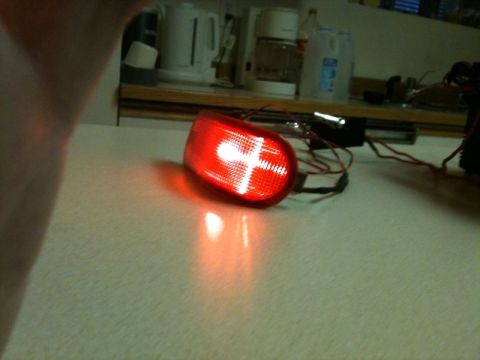

2002 Pontiac Grand Prix - Oznium pre-wired surface mount LED in cool white. 2002 Pontiac Grand Prix - Pretty bright for a single LED. 2002 Pontiac Grand Prix - Pretty bright for a single LED. 2002 Pontiac Grand Prix - Door panel light. 2002 Pontiac Grand Prix - Test with LED. 2002 Pontiac Grand Prix - Test with LED. 2002 Pontiac Grand Prix - Test with LED. 2002 Pontiac Grand Prix - Material for the LED mount. 2002 Pontiac Grand Prix - Top pieces. 2002 Pontiac Grand Prix - These will sit on the housing and hold the LED's. The tabs will keep them in place. 2002 Pontiac Grand Prix - These will sit on the housing and hold the LED's. The tabs will keep them in place. 2002 Pontiac Grand Prix - Bottom pieces; the "C" shape will keep the LED in place. 2002 Pontiac Grand Prix - The notch is to let the ribbon cable pass through. 2002 Pontiac Grand Prix - The notch is to let the ribbon cable pass through. 2002 Pontiac Grand Prix - The notch is to let the ribbon cable pass through. 2002 Pontiac Grand Prix - I used a two-part plastic epoxy to glue everything together. 2002 Pontiac Grand Prix - Final test fit. 2002 Pontiac Grand Prix - A can of GUNK Pro Series Brake Cleaner and a tube of Permatex Clear Silicone Adhesive Sealant are shown on a speckled countertop next to a… 2002 Pontiac Grand Prix - Two white automotive tail light assemblies with red trim are secured with green velcro straps and connected to red and black wires. They ar… 2002 Pontiac Grand Prix - Two red aftermarket trailer lights are shown, each with a green strap securing it. The lights are resting on a Princess Auto flyer. 2002 Pontiac Grand Prix - The brightness of the LED creates this "cross". I suspect this will bother me. 2002 Pontiac Grand Prix - Two clear taillight assemblies are shown laid out on a Father's Day newspaper advertisement. Each assembly has a white plastic housing with… 2002 Pontiac Grand Prix - Wire harness to run in the door. It splits to a plug for the door light, and the other end is for some future door handle lighting. 2002 Pontiac Grand Prix - Right front, stock with no light or wiring. 2002 Pontiac Grand Prix - Right front, door re-assembled, wiring run to kick panel, lit with power supply. 2002 Pontiac Grand Prix - Right front, door re-assembled, wiring run to kick panel, lit with power supply. 2002 Pontiac Grand Prix - Left front, stock with no light or wiring. 2002 Pontiac Grand Prix - Left front, door re-assembled, wiring run to kick panel, lit with power supply. 2002 Pontiac Grand Prix - Left front, door re-assembled, wiring run to kick panel, lit with power supply. 2002 Pontiac Grand Prix - Right front, door re-assembled, wiring run to kick panel, lit with power supply. 2002 Pontiac Grand Prix - Front doors wired. I made a 194 adapter harness that plugs into the dome light socket; didn't feel like hacking the wiring. 2002 Pontiac Grand Prix - Front doors wired. I made a 194 adapter harness that plugs into the dome light socket; didn't feel like hacking the wiring. 2002 Pontiac Grand Prix - Front doors done. 2002 Pontiac Grand Prix - Front doors done. 2002 Pontiac Grand Prix - Wiring harness #3. 2002 Pontiac Grand Prix - Wiring harness #4. 2002 Pontiac Grand Prix - All done. 2002 Pontiac Grand Prix - All done.
