Fog Hi

From 2002 Pontiac Grand Prix, documented by Chris Bradley.

8 photos
← Back to this vehicle

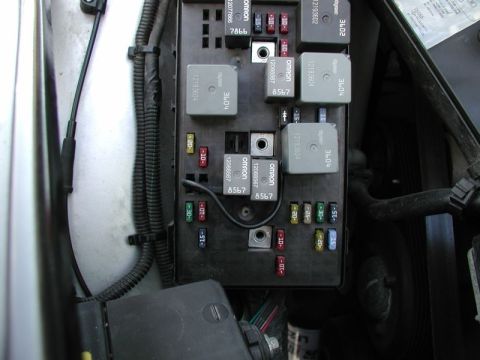

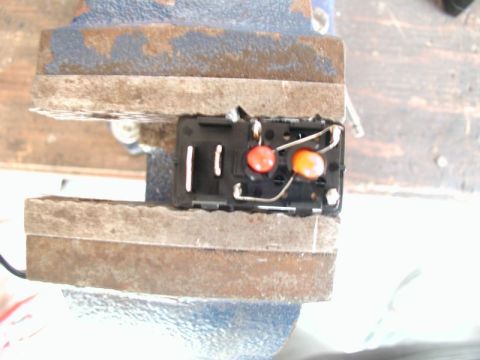

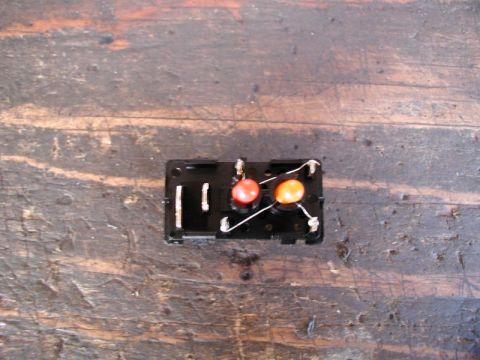

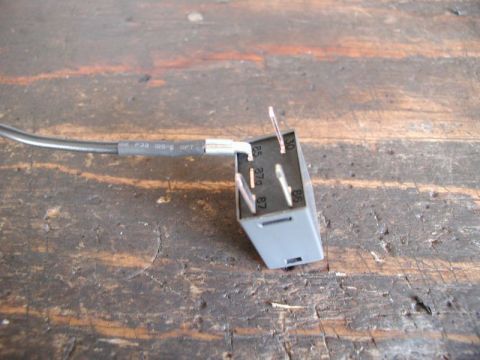

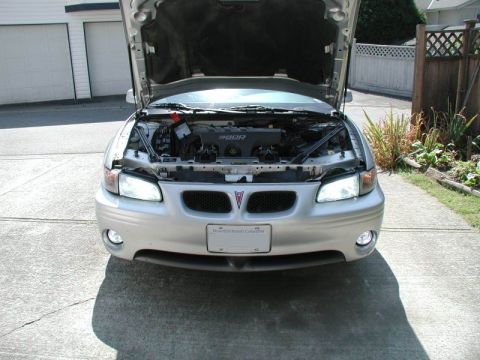

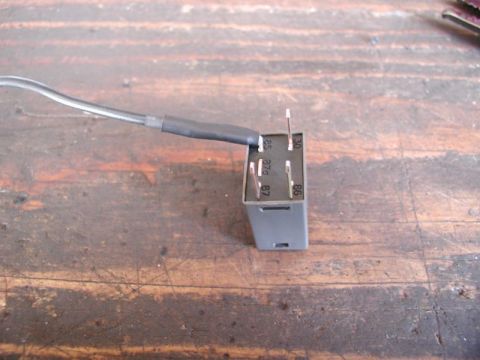

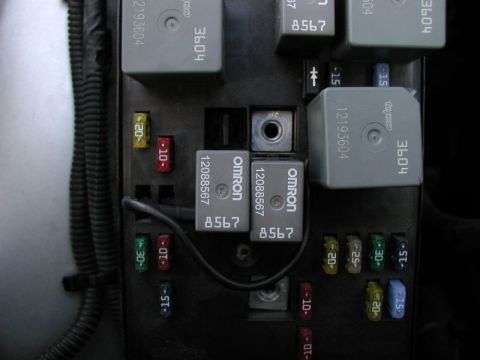

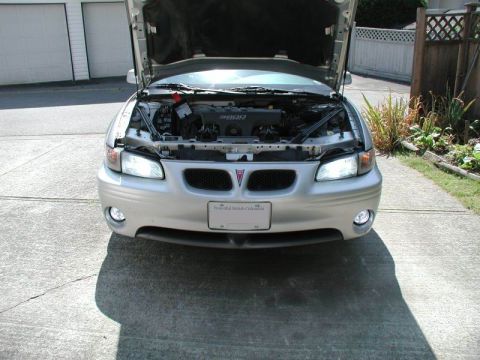

2002 Pontiac Grand Prix - Remove relay #17 from the underhood fuse panel. Bend terminal #85 and attach a piece of wire to it. 2002 Pontiac Grand Prix - Remove relay #17 from the underhood fuse panel. Bend terminal #85 and attach a piece of wire to it. 2002 Pontiac Grand Prix - Re-install relay #17. Remove relay #11 and attach the other end of the wire to terminal #86 and re-install. 2002 Pontiac Grand Prix - Re-install relay #17. Remove relay #11 and attach the other end of the wire to terminal #86 and re-install. 2002 Pontiac Grand Prix - Low beams with fog lights. 2002 Pontiac Grand Prix - Hi beams with fog lights. 2002 Pontiac Grand Prix - Unsolder the orange bulb from the hi beam +/- terminal and solder it to the red bulb - terminal. 2002 Pontiac Grand Prix - Unsolder the orange bulb from the hi beam +/- terminal and solder it to the red bulb - terminal.
