Fuel Level Sensor

From 2002 Pontiac Grand Prix, documented by Chris Bradley.

24 photos
← Back to this vehicle

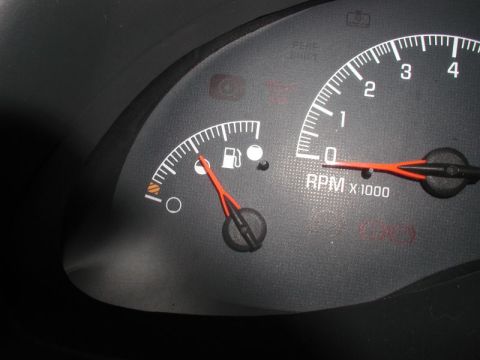

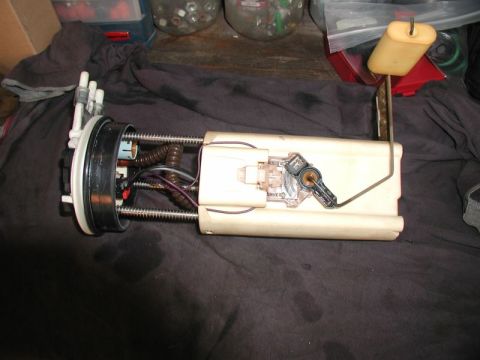

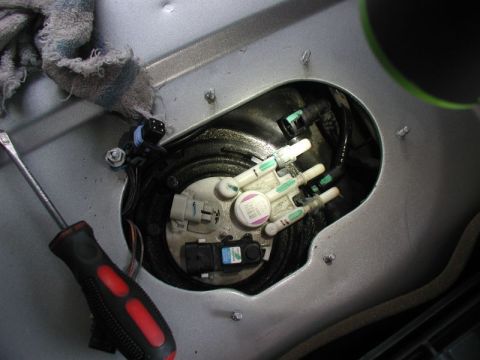

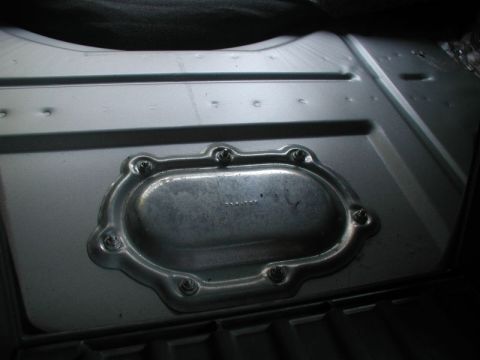

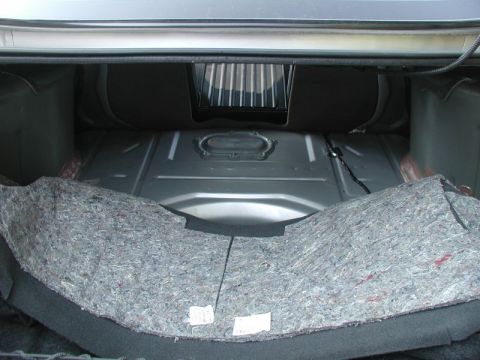

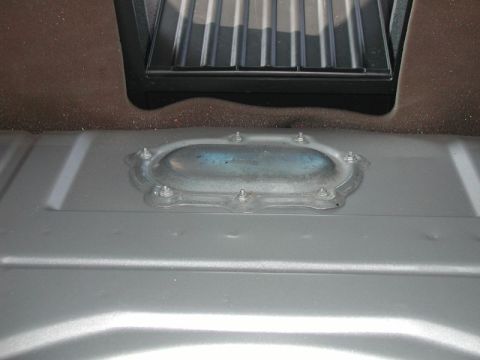

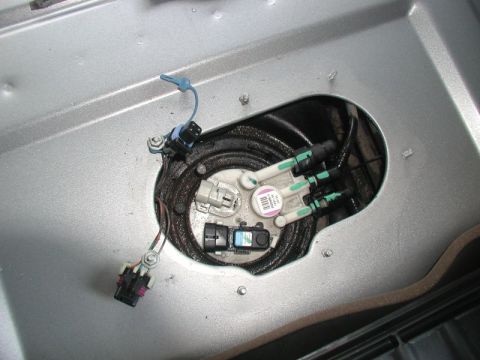

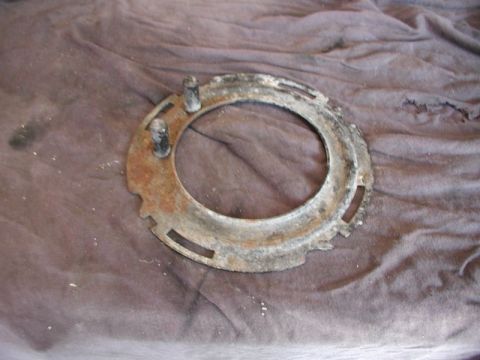

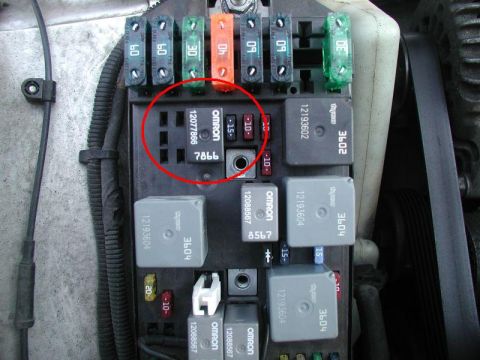

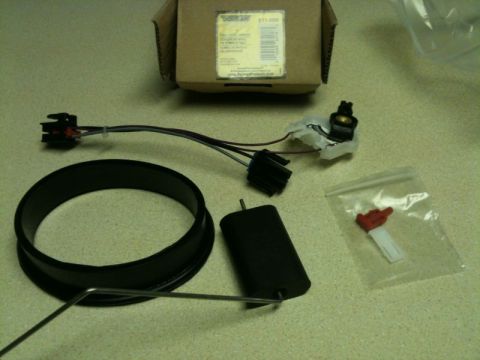

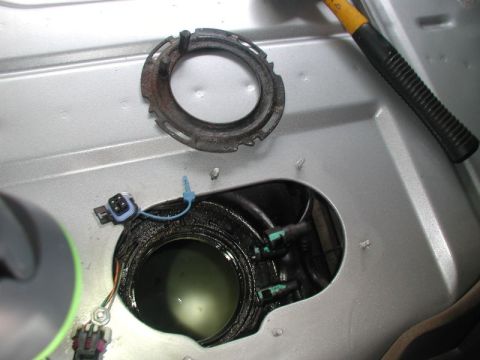

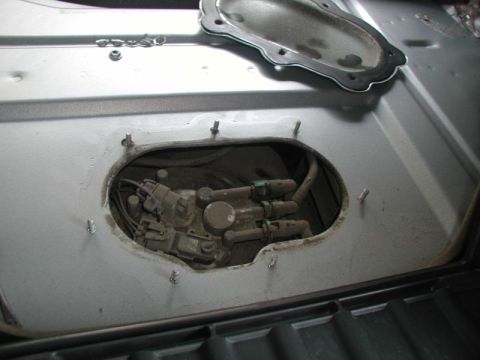

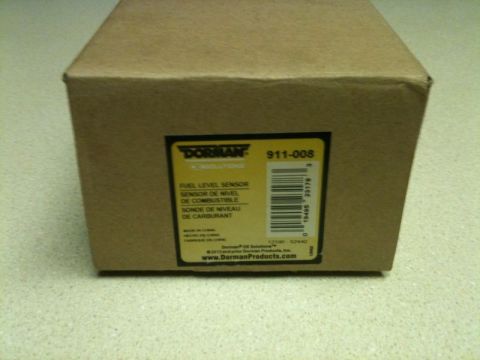

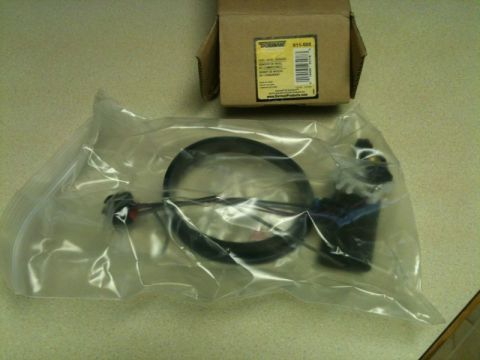

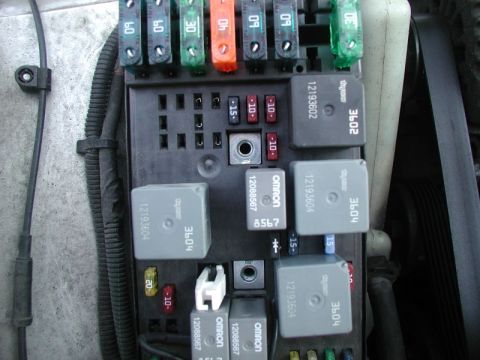

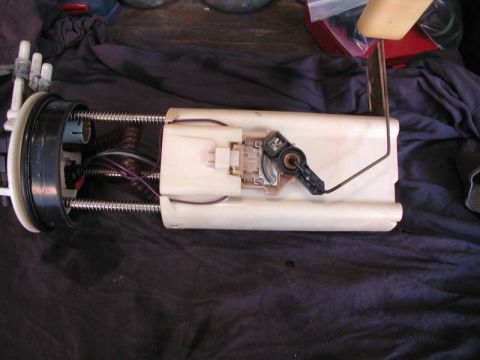

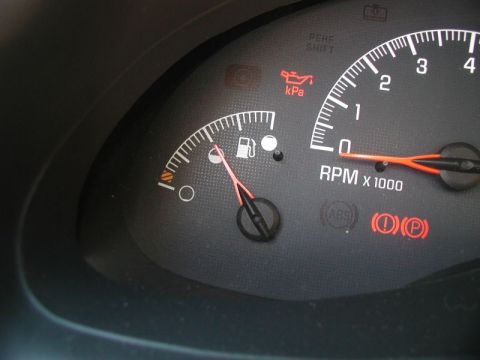

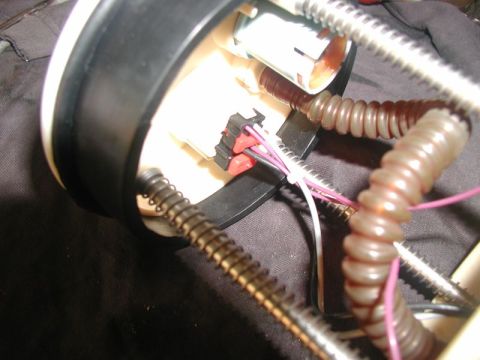

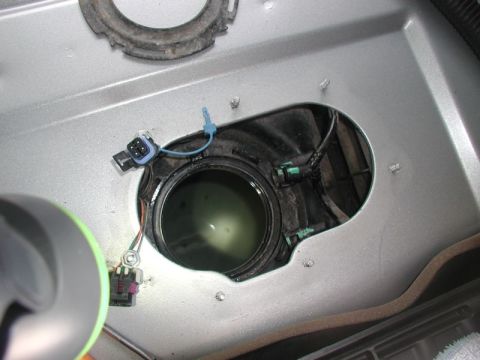

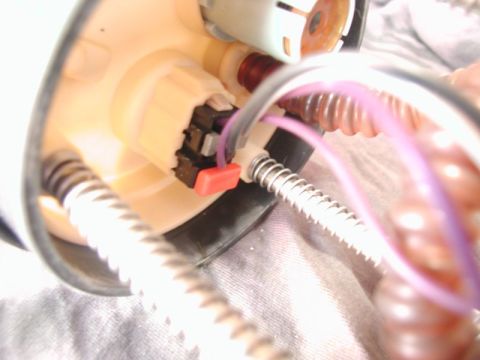

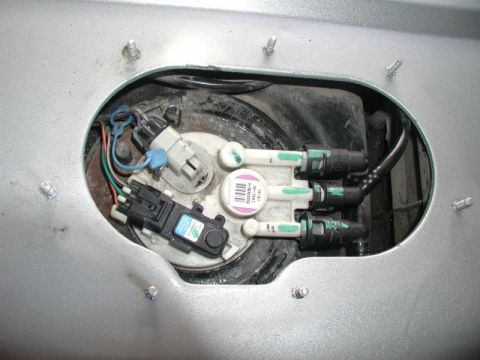

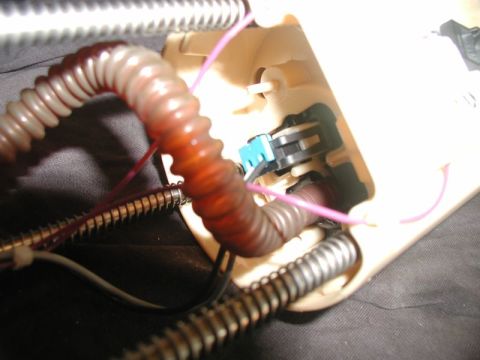

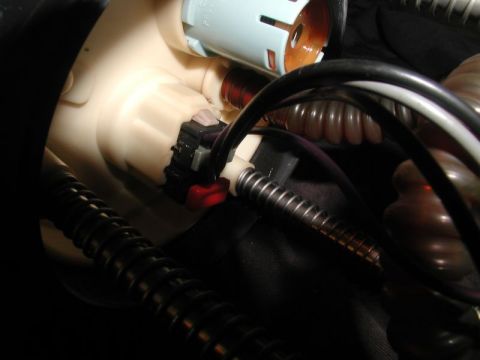

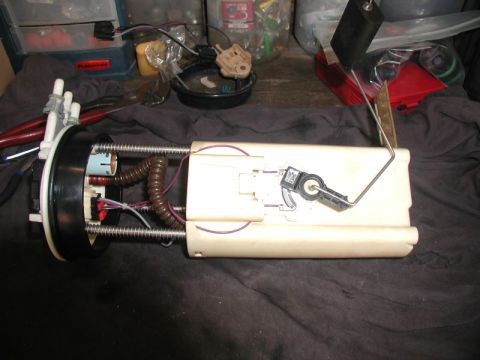

2002 Pontiac Grand Prix - Dorman #911-008. 2002 Pontiac Grand Prix - Comes with new sensor, seal, float, wiring and retaining clips. 2002 Pontiac Grand Prix - Comes with new sensor, seal, float, wiring and retaining clips. 2002 Pontiac Grand Prix - Start the car and remove the fuel pump relay. Turn the ignition off when the car stalls. 2002 Pontiac Grand Prix - Start the car and remove the fuel pump relay. Turn the ignition off when the car stalls. 2002 Pontiac Grand Prix - Pull back the carpet in the trunk to expose the access panel. 2002 Pontiac Grand Prix - Pull back the carpet in the trunk to expose the access panel. 2002 Pontiac Grand Prix - Remove the 7 10mm nuts and pry the panel off. 2002 Pontiac Grand Prix - Remove the 7 10mm nuts and pry the panel off. 2002 Pontiac Grand Prix - Disconnect the two plugs. 2002 Pontiac Grand Prix - Disconnect the three fuel lines. For the two outer hoses, squeeze the two tabs inward and pull the hose off. For the inner hose, squeeze th… 2002 Pontiac Grand Prix - Remove the lock ring; rotate counter clockwise until it clears the 4 lock tabs. 2002 Pontiac Grand Prix - A disassembled fuel pump assembly with a fuel level sender is shown resting on a dark cloth. The assembly includes a white plastic housing,… 2002 Pontiac Grand Prix - Remove the old sensor, wiring and seal. 2002 Pontiac Grand Prix - Remove the old sensor, wiring and seal. 2002 Pontiac Grand Prix - A close-up view shows a white plastic fuel pump housing with a black electrical connector and a red release tab. Several ribbed hoses and c… 2002 Pontiac Grand Prix - New seal, sensor, float and wiring installed. 2002 Pontiac Grand Prix - New seal, sensor, float and wiring installed. 2002 Pontiac Grand Prix - New seal, sensor, float and wiring installed. 2002 Pontiac Grand Prix - The lock ring. 2002 Pontiac Grand Prix - Install is the reverse of the removal. 2002 Pontiac Grand Prix - Everything back in place. 2002 Pontiac Grand Prix - This is a close-up shot of the dashboard gauges of a 2002 Pontiac Grand Prix. The image shows the fuel gauge and the tachometer. 2002 Pontiac Grand Prix - The gauge reading properly.
