Intake Silencer Removal

From 2003 Ford Escape “Lab Scape” — documented by WD40.

5 photos
← Back to this vehicle

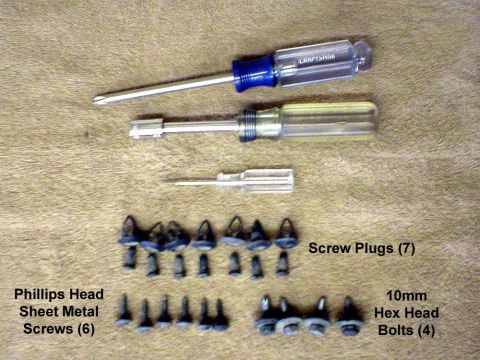

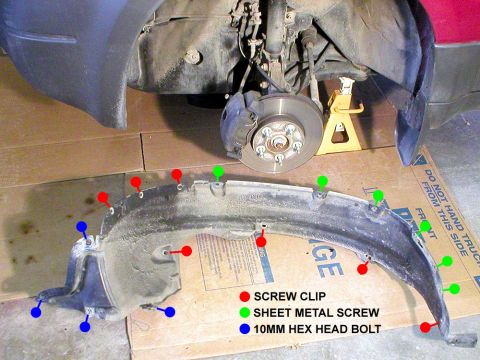

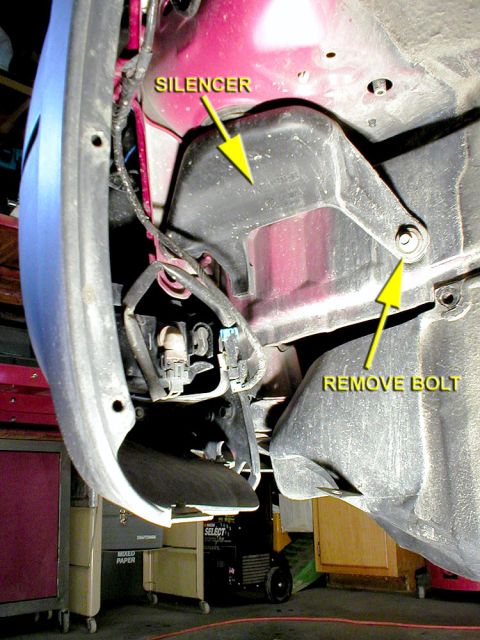

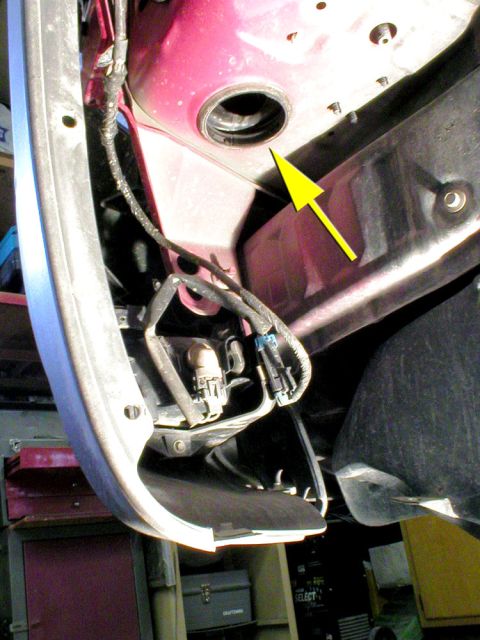

2003 Ford Escape - 1) Remove the driver’s side front wheel and fender liner. See the follow-on pictures for quantity and type of fasteners to remove from the… 2003 Ford Escape - Here’s a pic of the fender liner after removal. Fastener locations and type are noted. Hint: You’ll see I was able to remove the liner with… 2003 Ford Escape - Here’s all the hardware, and tools used. The small screwdriver was used to pop out the plastic screw-plugs. The nut driver is a 10mm hex. 2003 Ford Escape - This is what we’re really after. Remove the one bolt holding it in place, and the silencer will pull right off. Hint: I re-installed the bo… 2003 Ford Escape - This is the gaping hole that we just opened up. It provides a substantial increase in air volume available to the engine, which should equa…
