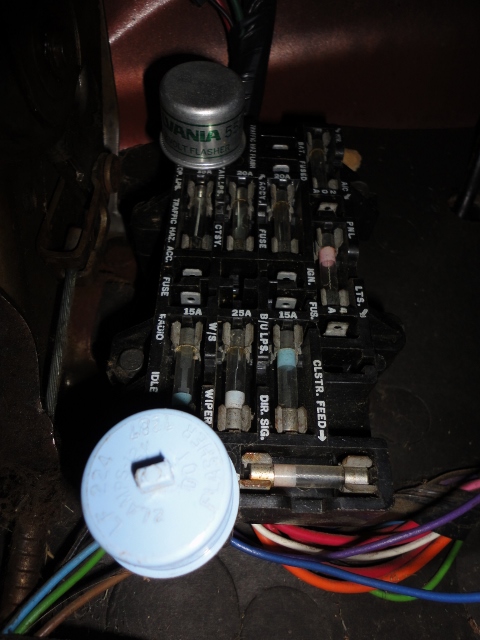

Vehicle fuse box with labeled glass fuses, a Sylvania flasher, and colored wiring
Home/ Registry/ Chevrolet/ C/K Pickup/ 1973-1987/ “Brown Darter” supermotors.net/registry/26771

“Brown Darter”1978 Chevrolet C/K Pickup

documented by 95F1504x4EB 15 photos documented since 1 years documented ♡ Follow this build

Photos

1978 Chevrolet C/K Pickup: Original Turn Signal Flasher location under dash (light blue tab sticking through) 1978 Chevrolet C/K Pickup: Original Turn Signal Flasher removed from behind dash 1978 Chevrolet C/K Pickup: Original Turn Signal Flasher (LF224: 2 lamp model) 1978 Chevrolet C/K Pickup: Original Fuse Panel (no wiring for turn signal flasher in lower left corner, heavy duty hazard light flasher… 1978 Chevrolet C/K Pickup: Sylvania 552 heavy duty flasher (2-6 lamps) 1978 Chevrolet C/K Pickup: Sylvania 552 heavy duty flasher (2-6 lamps) 1978 Chevrolet C/K Pickup: Testing the heavy duty 552 flasher with my 5'X8' trailer lights (no more quick flash and dim trailer lights) 1978 Chevrolet C/K Pickup: Turn signal flasher wiring transferred to fuse panel lower left corner because the replacement 552 flasher wi… 1978 Chevrolet C/K Pickup: Turn signal flasher transplanted onto fuse panel (search begins for a 552 flasher to replace the original 224… 1978 Chevrolet C/K Pickup: New Heavy Duty 552 Flasher1. Purchased a lot of 3 off Ebay. 1978 Chevrolet C/K Pickup: New Heavy Duty 552 Flasher2. Purchased a lot of 3 off Ebay. 1978 Chevrolet C/K Pickup: New Heavy Duty 552 Flasher3. Purchased a lot of 3 off Ebay. 1978 Chevrolet C/K Pickup: New Heavy Duty 552 Flasher4. Purchased a lot of 3 off Ebay. 1978 Chevrolet C/K Pickup: New Heavy Duty 552 Installed2 1978 Chevrolet C/K Pickup: New Heavy Duty 552 Flasher Installed1
See every Chevrolet C/K Pickup in the registry The 1973-1987 Chevrolet C/K Pickup registry

Technical reference · 1973-1987 Chevrolet C/K Pickup

Factory documentation members uploaded for this generation, sorted by how much of it there is.

Wiring Diagrams (4) Exploded Parts (1) Data/Spec Plates (1) Service Procedures (1)
