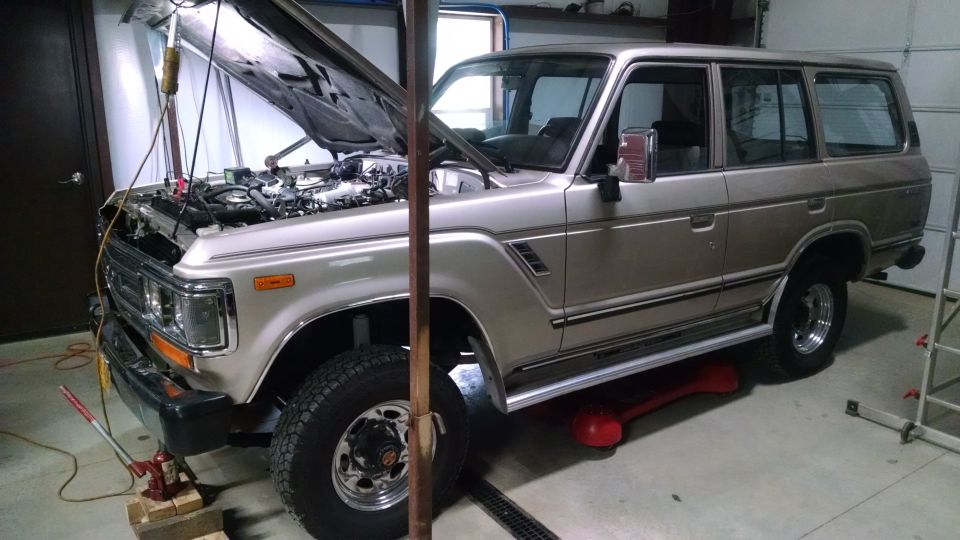

Tan Toyota Land Cruiser SUV with hood up in a garage, 3/4 front view
Home/ Registry/ Toyota/ Land Cruiser/ “Range Cruiser NOT MINE” supermotors.net/registry/28219

“Range Cruiser NOT MINE”1988 Toyota Land Cruiser

documented by Steve83 35 photos documented since ♡ Follow this build

The story

Restorable? Aftermarket: antenna (broken off), CB antenna (not mounted or connected), RKE/PL wiring (not connected, PW conversion (remote motors), cruise (not working - VSS MIA), battery, battery disconnect switch, battery terminals, running boards (badly installed, but still solid), sunroof (works, and doesn't appear to leak), Cl.3 hitch receiver, 4-pin round trailer connector, electronic taillight adapter.

Speedo cable leaking oil; worn; close to catalytic converter.
Fusible links missing & not installed correctly.
Key comes out at any position.
Floor shifter bushings missing; link bar bushings worn.
VCG & oil filter adapter leaking; pan gasket recently replaced.
MC recently replaced.
A/C recently replaced, but still not working, and leaking profusely at condenser fitting.
Evidence of rodents in both kicks & hood insulation.
Sagging headliner & visors.
Front bumper bent; all end caps damaged.
Rear wiper blade missing.
RV mirror loose.
RHS mirror head chipped.
Hood stops need new rubber; hood insulation needs 3 pins.
Wiper motor plate missing 1 bolt & nut.
Battery tray very rusty.
CEL & 4WD lights loose in dash. — Steve83

Photos

1988 Toyota Land Cruiser — 1988 FJ62 4.0L auto in decent running condition Aftermarket running boards, sunroof, PW, PL (disabled), cruis… 3F-E vacuum hose information diagram beside Toyota Motor Corporation ID plate Toyota Vehicle Emission Control Information label, 3F-E FED catalyst, 1988 light-duty truck 1988 Toyota Land Cruiser — Problems include: - battery terminals & fusible links - antenna mast & unmounted CB antenna base - valve cove… 1988 Toyota Land Cruiser — The trans shifter is loose above & below the floor; the key comes out in several positions; the aftermarket P… 1988 Toyota Land Cruiser — Interior rear cargo area of a vehicle, looking out a window into a garage. 1988 Toyota Land Cruiser — Although it seems to work, and doesn't appear to leak, it doesn't look right overhanging the roof ribs. 1988 Toyota Land Cruiser — The hitch receiver seems to fit well, but it only has a round 4-pin connector with a very old electronic tail… 1988 Toyota Land Cruiser — The front bumper is bent, and all 4 end caps are damaged. 1988 Toyota Land Cruiser — The aftermarket running boards were installed wrong (to frame AND body), and this side isn't even attached to… 1988 Toyota Land Cruiser — I guess the switch was added for storage, but it's a poor way to accomplish what a trickle charger would do M… 1988 Toyota Land Cruiser — The aftermarket cruise servo's cable was coiled up right in front of it. Its VSS wiring is ripped away undern… 1988 Toyota Land Cruiser — The aftermarket power window system barely works; partially due to the glass runs being old. 1988 Toyota Land Cruiser — There are at least 5 aftermarket systems hacked into the dash wiring below the column, but some of them are a… 1988 Toyota Land Cruiser — The rodent who nested in the kick doesn't appear to be responsible for the wiring problems. Interior dashboard of a Toyota Land Cruiser with radio, climate controls, and transfer case selector. Transfer gear shifting instructions decal showing H2 N L4 switch and lever positions Bilingual A.T.P and A.T. oil temp warning-light instruction decal in vehicle 1988 Toyota Land Cruiser — Just to get a general idea, I pulled the easiest plug (#4) to inspect. It has the correct amount of tan ash o… 1988 Toyota Land Cruiser — This wasn't cheap, but it certainly wasn't as expensive as I worried it might be. 1988 Toyota Land Cruiser — I chose to disturb as LITTLE of the plastic as possible on this old truck, so I installed these bushings one… 1988 Toyota Land Cruiser — These grommets are responsible for the shifter's action, against the transmission lever. The originals were d… 1988 Toyota Land Cruiser — After a few voltage checks under load, I realized that there was high resistance at both the alternator outpu… 1988 Toyota Land Cruiser — This was the big problem: the alternator pivot bolt was barely hand-tight. So it wasn't clamped onto the engi… 1988 Toyota Land Cruiser — All the mating surfaces are bright now (including the one I had to use the wire toothbrush on), and I'll be s… 1988 Toyota Land Cruiser — Since I was cleaning up the others, I pulled the compressor & cleaned the main battery ground terminal to the… 1988 Toyota Land Cruiser — Unidentified hitch receiver 1988 Toyota Land Cruiser — Unidentified hitch receiver 1988 Toyota Land Cruiser — Unidentified hitch receiver w/round 4-pin connector 1988 Toyota Land Cruiser — Air cleaner label 1988 Toyota Land Cruiser — Smog pump label Close-up of a black engine belt with green stripes and text TR22657 GREEN STRIPE. II BELT 15A1670 Gates Green Stripe XL serpentine belt with part number 13A1195 on a pulley 1988 Toyota Land Cruiser — Coil & igniter labels Close-up of an ignition coil with part number 23500 visible, mounted with a metal strap
