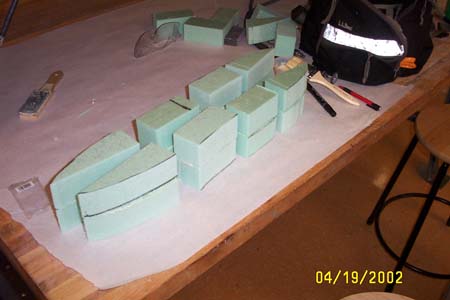

Carving the greenfoam for the body.

712 hits | | Posted: 6/30/03

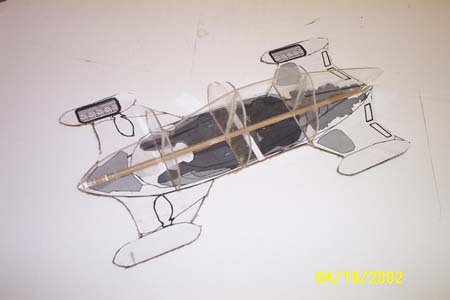

The drawing for the car was blown up to scale, and a Plexiglas frame was built around it. Note clean...

745 hits | | Posted: 6/30/03

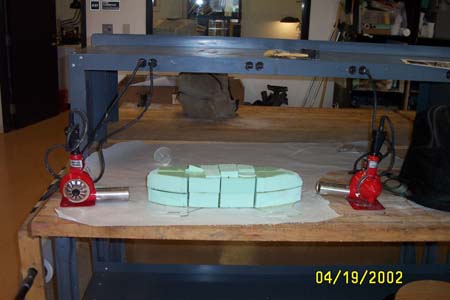

The foam wedges are epoxied in between the bulkheads on the frame.

838 hits | | Posted: 6/30/03

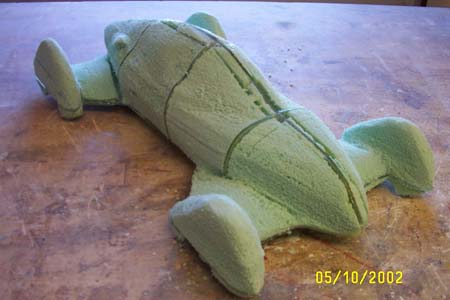

The foam is sanded and carved down to the desired shape.

933 hits | | Posted: 6/30/03

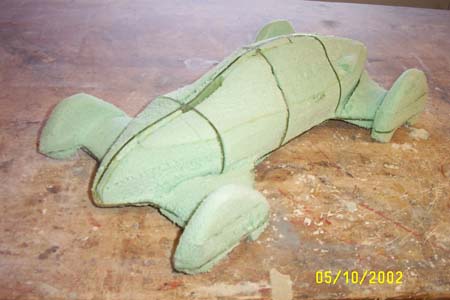

This was accomplished using palm sanders, filecards, sanding blocks and penknives.

782 hits | | Posted: 6/30/03

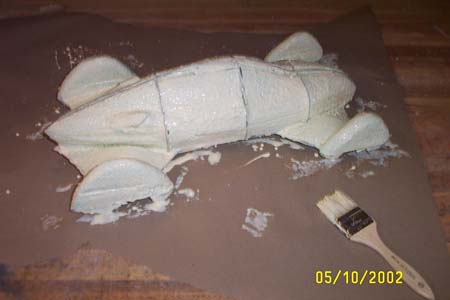

Since fiberglass will eat through greenfoam, it is covered with three coats of wood glue to protect ...

956 hits | | Posted: 6/30/03

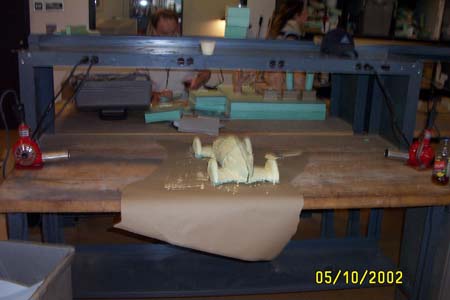

The wood glue drying under twin heat guns, set on low. Note distance of guns to avoid melting of the...

988 hits | | Posted: 6/30/03

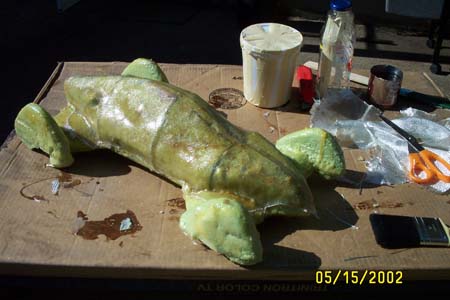

The fiberglass weave in place. Not shown: Two gelcoats, second fiberglass layer.

958 hits | | Posted: 6/30/03

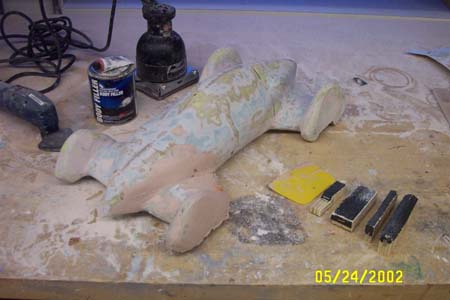

Fiberglass resin and Bondo are then mixed together and applied liberally over the model. Once a thic...

938 hits | | Posted: 6/30/03

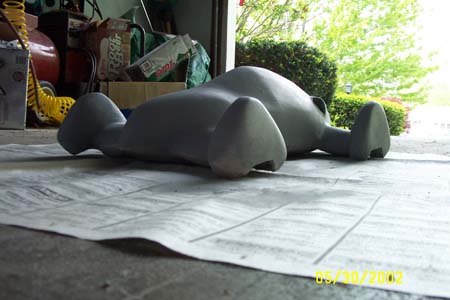

Primer is sprayed on and sanded off to determine where the low spots on the model are. Bondo can the...

1076 hits | | Posted: 6/30/03

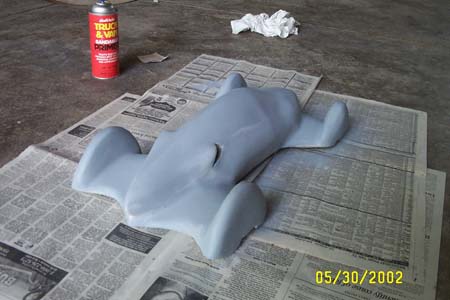

After countless man-hours of sanding with progressively finer grits (approx. 50-60 hrs.), the model ...

851 hits | 25.27 KB | Posted: 6/30/03

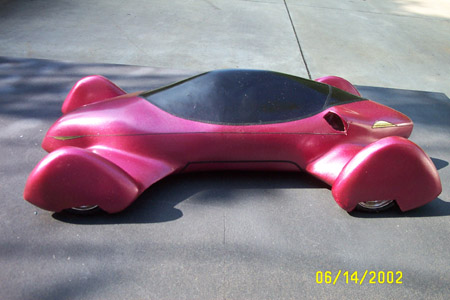

The completed model. More images of the model are available under the "3/D Concept Models" section.
