J-mod and transmission and underside pics.

From 1998 Ford Crown Victoria “EmbassyVic”, documented by Embassy Vic.

42 photos
← Back to this vehicle

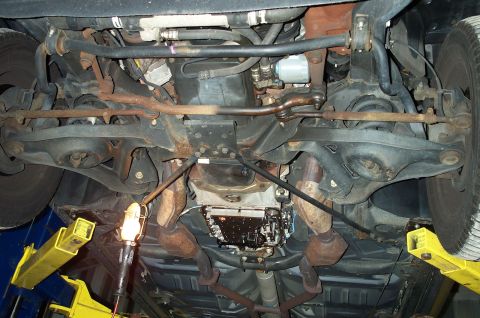

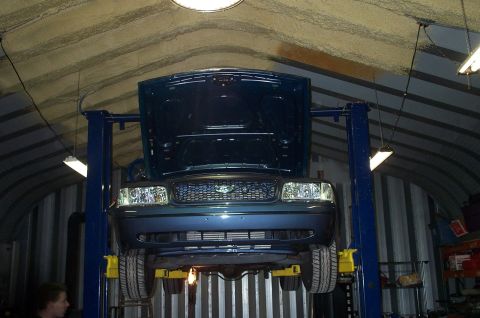

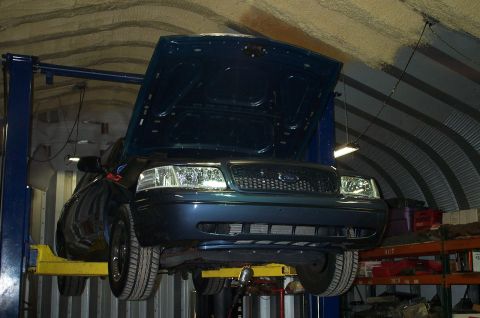

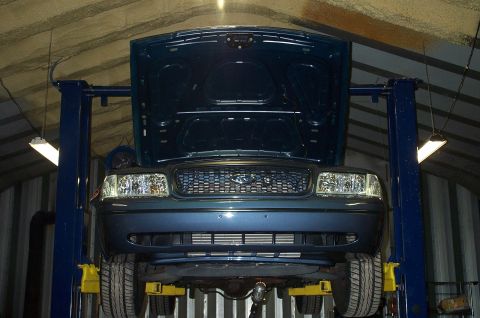

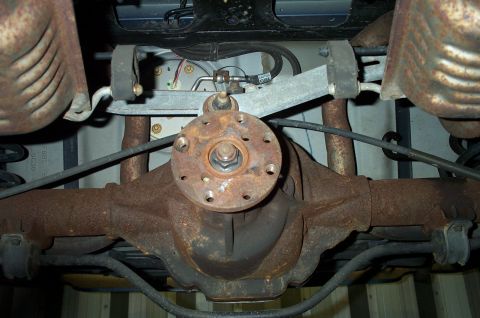

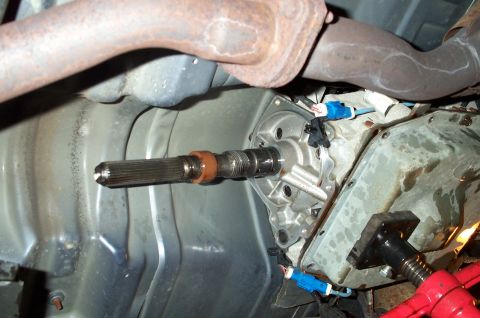

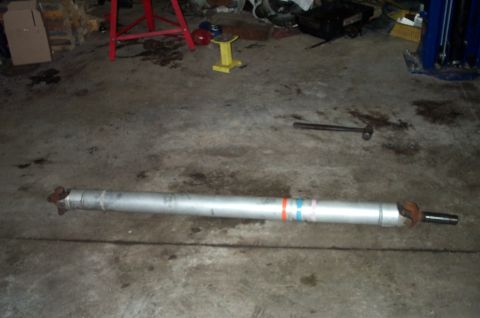

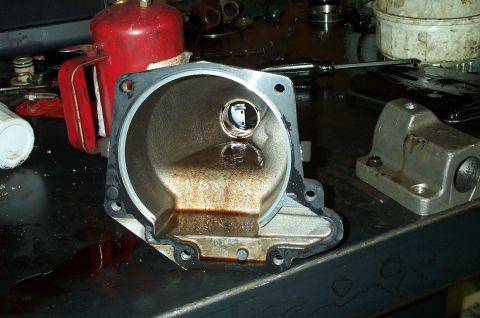

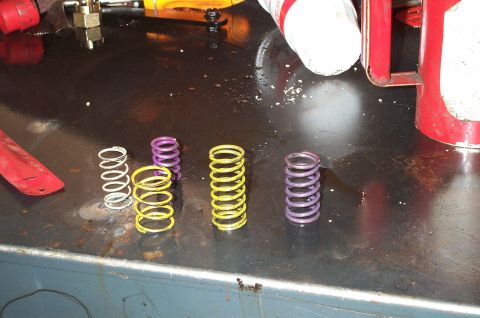

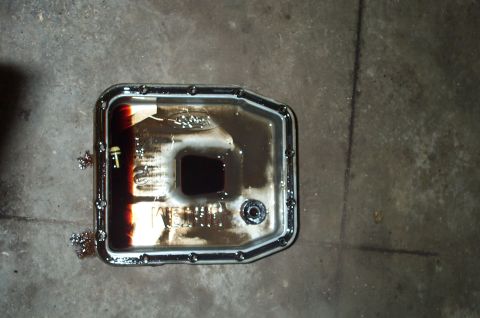

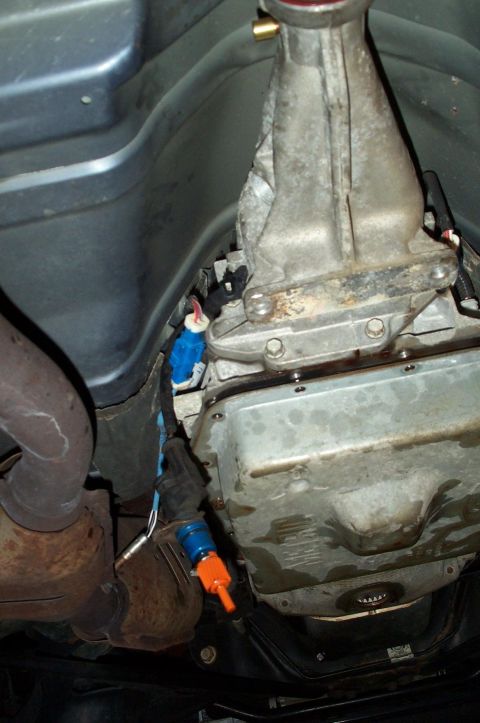

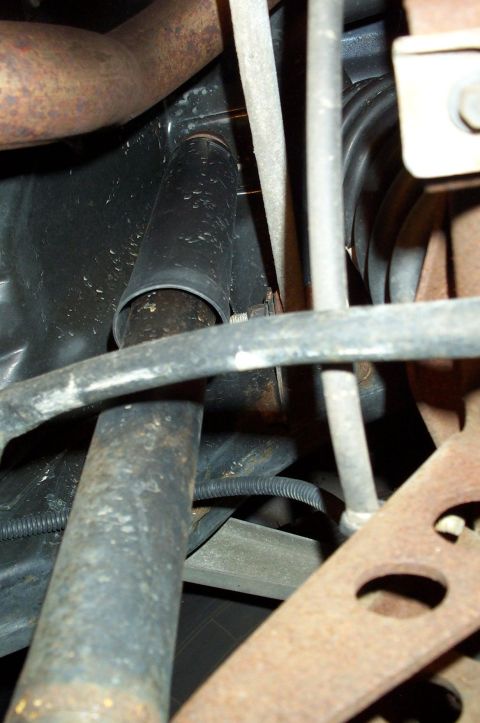

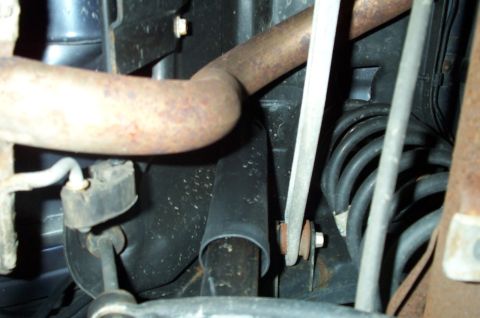

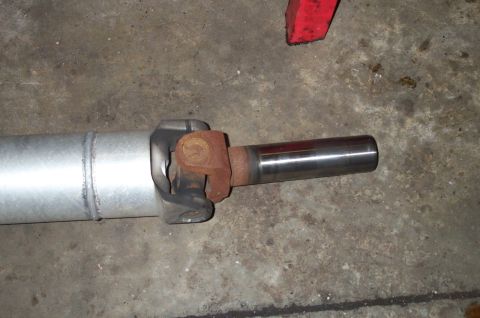

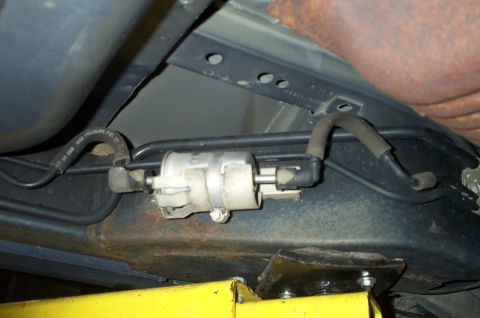

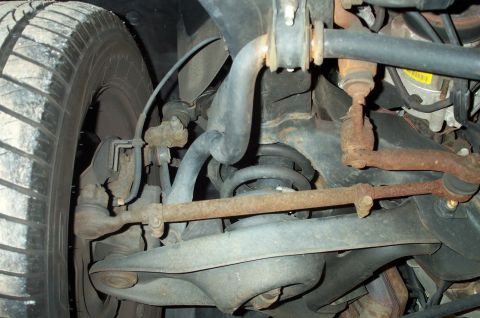

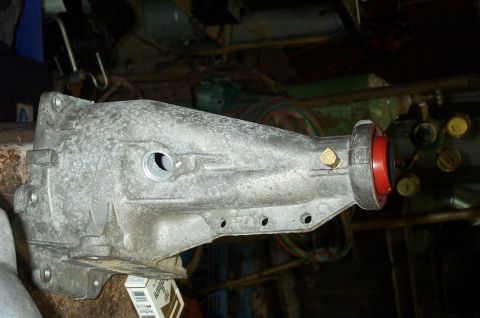

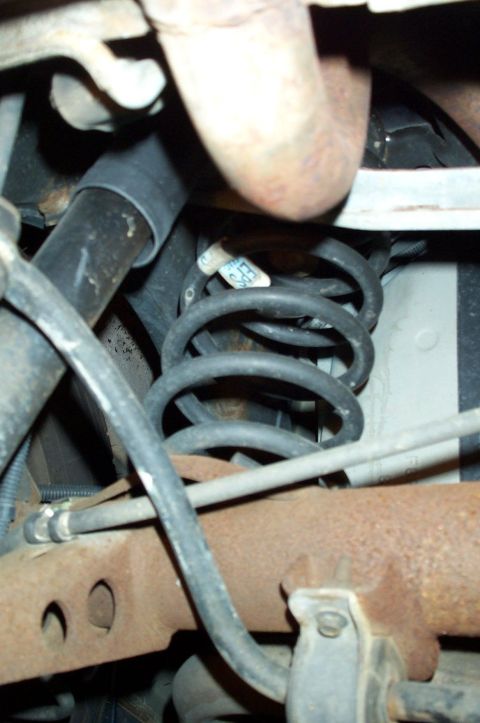

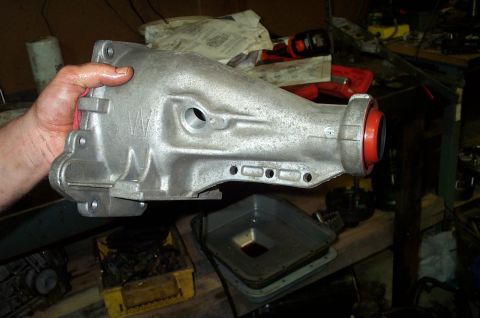

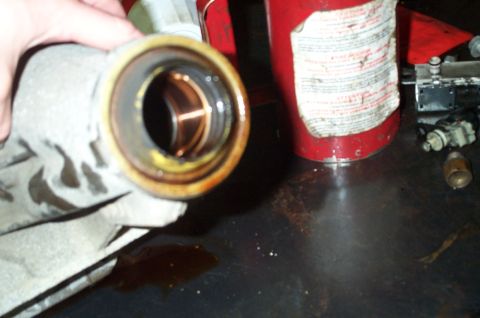

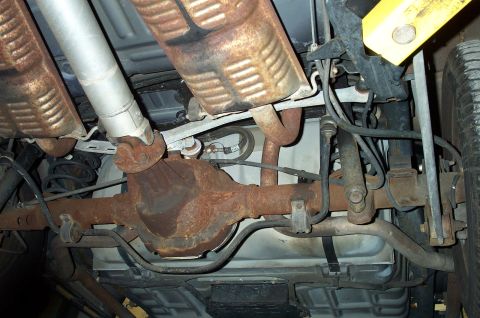

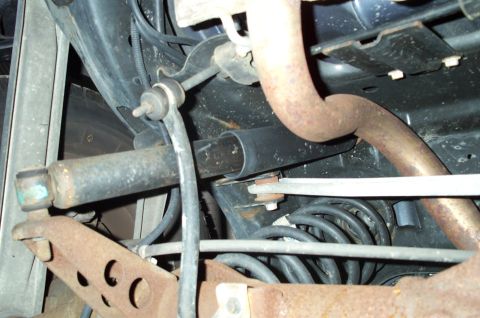

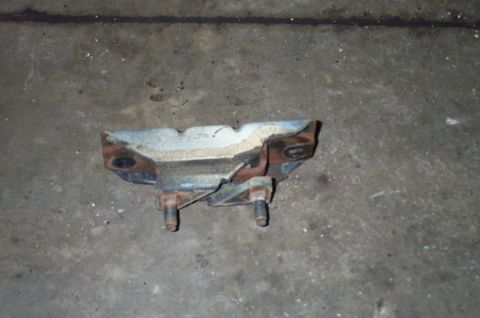

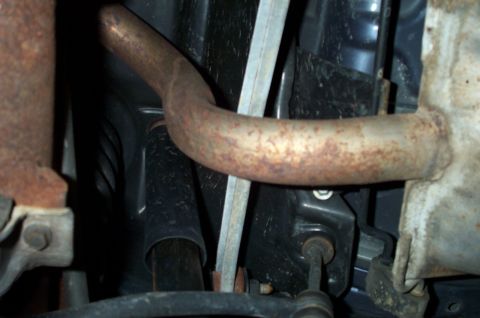

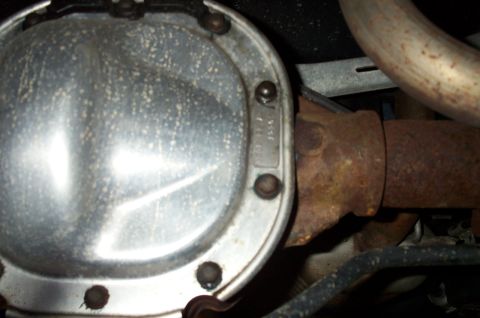

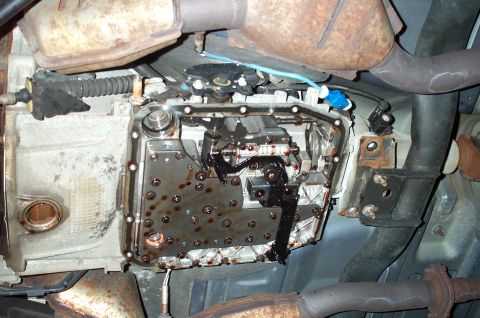

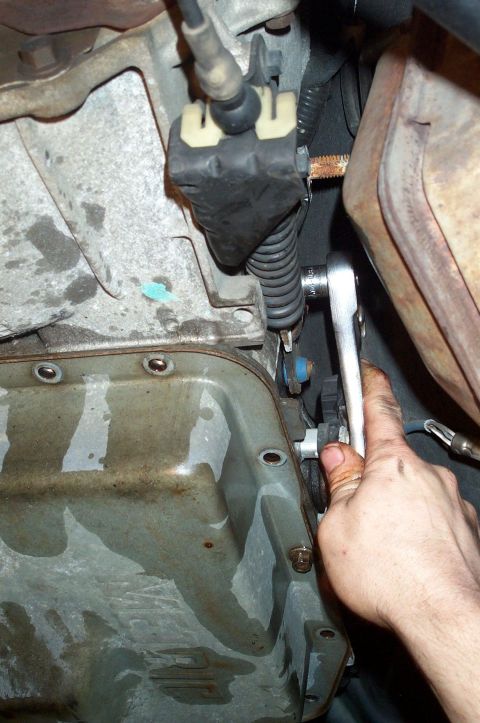

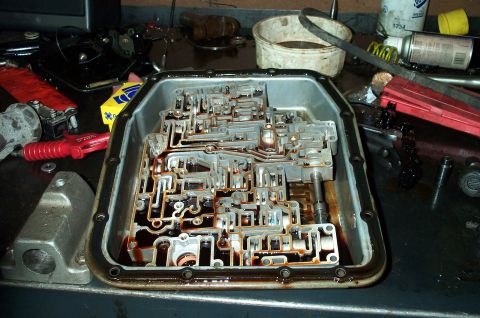

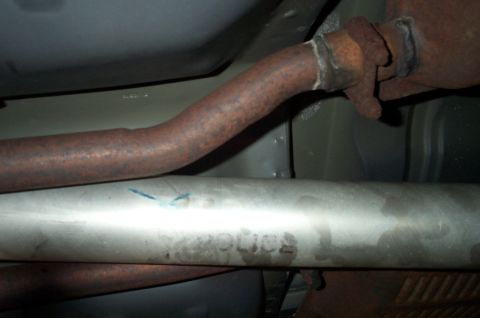

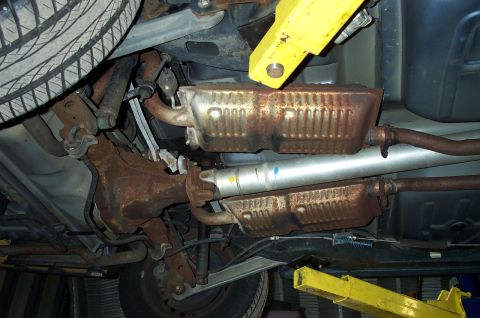

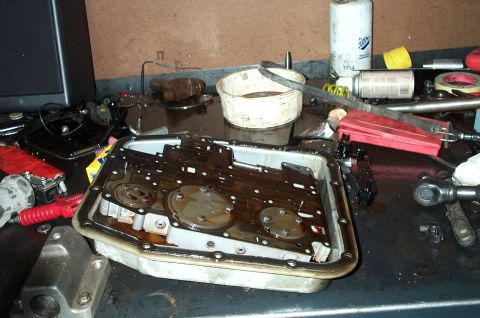

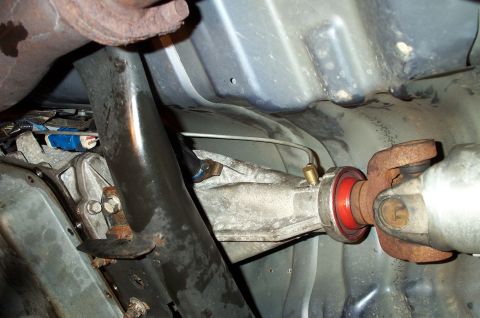

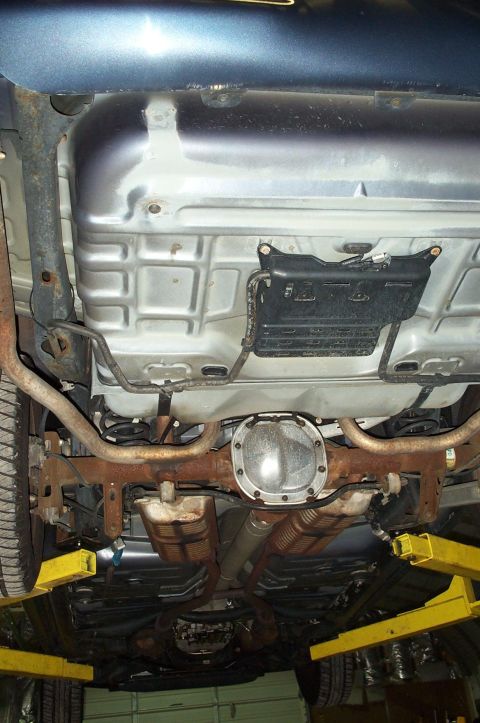

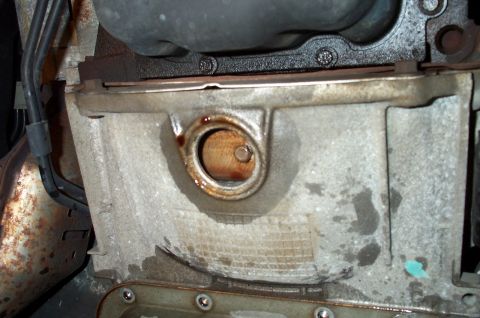

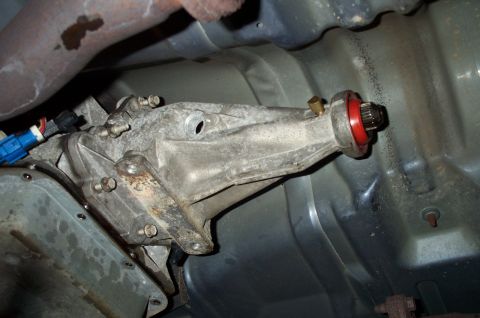

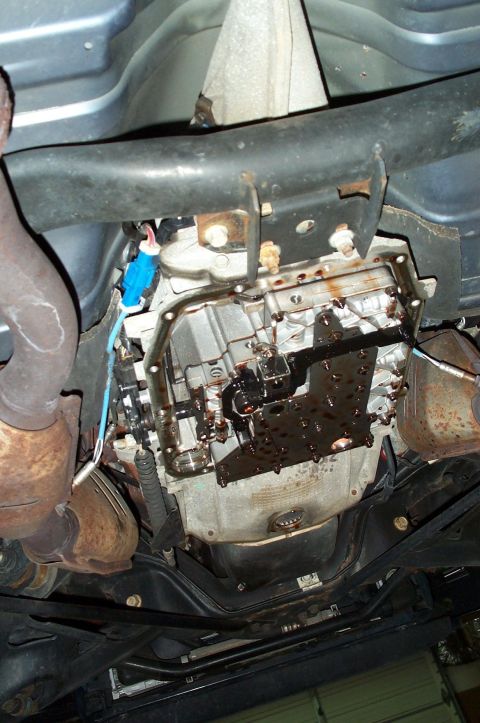

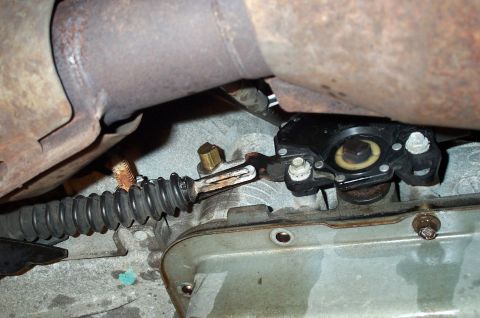

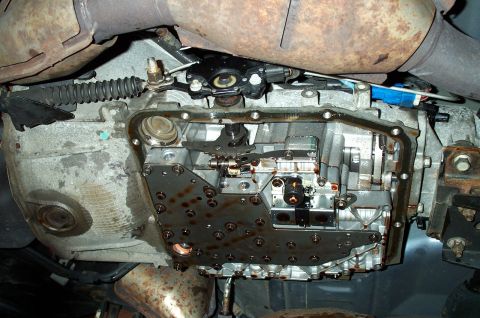

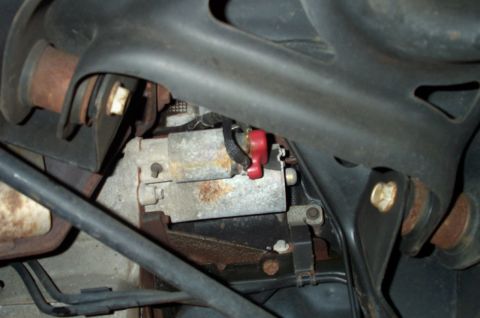

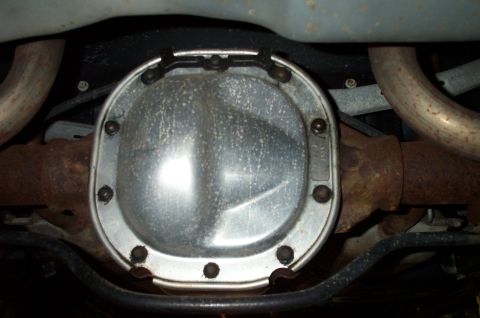

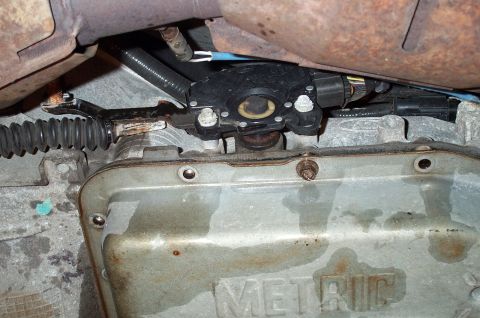

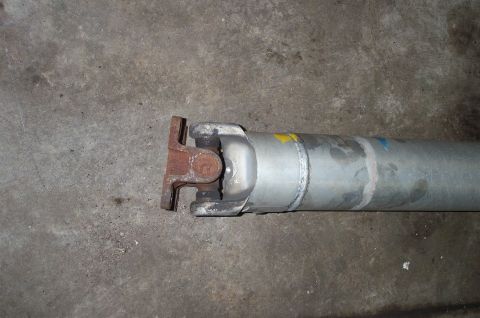

1998 Ford Crown Victoria - On the lift. 1998 Ford Crown Victoria - Front view of a dark blue Ford sedan raised on a two-post lift with its hood open, showing the grille with Ford oval, dual headlights, and… 1998 Ford Crown Victoria - A dark blue/teal Ford sedan raised on a blue two-post lift with its hood open, viewed from the front in a curved corrugated-metal Quonset-s… 1998 Ford Crown Victoria - A pic of the undercarriage, taken from the front. 1998 Ford Crown Victoria - A pic of the undercarriage, taken from the rear. 1998 Ford Crown Victoria - The transmission, with the pan removed. 1998 Ford Crown Victoria - The transmission, with the pan removed. 1998 Ford Crown Victoria - The trans pan w/it's overdue-for-a-flush-fluid. 1998 Ford Crown Victoria - Misc springs from various transmissions. Note the different colors. 1998 Ford Crown Victoria - Tailshaft w/housing removed. 1998 Ford Crown Victoria - The old tailshaft housing and it's rear bushing. This is be replaced with a bushing that is lubricated by the tapping and running of an add… 1998 Ford Crown Victoria - A cast aluminum transmission tailshaft housing sits on a workbench, showing its bolt flange, gasket surface, and a machined bearing bore wi… 1998 Ford Crown Victoria - Another tailshaft housing, w/out the tapped fitting for the lubrication modification. 1998 Ford Crown Victoria - The "new" tailshaft housing, w the tapped brass fitting for the lubrication modification. 1998 Ford Crown Victoria - The "new" tailshaft housing installed. Note the brass fitting. 1998 Ford Crown Victoria - The speedo gear (orange). 1998 Ford Crown Victoria - Close-up underside view of a metal transmission or oil pan with a round drain opening showing brown fluid staining and residue, mounted bel… 1998 Ford Crown Victoria - Underside view of a vehicle showing a hand using a ratchet wrench on linkage components near a metal oil pan and rubber boots/springs. The… 1998 Ford Crown Victoria - Underside view of a transmission showing the shift linkage and range sensor mounted on top, with the manual shift lever and cable connectio… 1998 Ford Crown Victoria - Note the brass fitting for the lubrication modification. 1998 Ford Crown Victoria - The line ran and installed at the rear fitting, near the bushing. 1998 Ford Crown Victoria - Note the addtional line for the the "lube mod". 1998 Ford Crown Victoria - An automatic transmission valve body and oil pan sit on a workbench, coated in reddish-brown transmission fluid, with the gasket surface, b… 1998 Ford Crown Victoria - An automatic transmission valve body sits inside an oil-pan or housing on a workbench, its aluminum casting showing intricate fluid passage… 1998 Ford Crown Victoria - The following are miscellaneous pics of the undercarriage. 1998 Ford Crown Victoria - Undercarriage shot of an exhaust system on a lift, showing rusty pipes, dual catalytic converters and a fresh silver muffler. 1998 Ford Crown Victoria - Undercarriage view of a vehicle's rusty rear axle, driveshaft, dual exhaust and suspension links. 1998 Ford Crown Victoria - The nearly impossible to remove rear shocks. 1998 Ford Crown Victoria - Underbody view showing a rusty exhaust pipe crossing above a dark rear shock absorber and a coiled black rubber hose or spring, with a moun… 1998 Ford Crown Victoria - Close-up underside view of a vehicle chassis showing a rust-mottled curved metal exhaust or transfer pipe crossing the frame, with a black… 1998 Ford Crown Victoria - Close-up underside view of a vehicle's suspension and undercarriage, showing a black rubber shock absorber boot/dust cover, coil spring, va… 1998 Ford Crown Victoria - Underside view of a rear differential fitted with a bare metal (aluminum) cover secured by perimeter bolts, flanked by the axle tubes and r… 1998 Ford Crown Victoria - Note the axle tag in the 2 o'clock position on the diff cover. 1998 Ford Crown Victoria - Underside view of a rear solid axle differential, heavily surface-rusted, with the pinion flange, hub and driveshaft yoke visible at center… 1998 Ford Crown Victoria - Inline fuel filter clamped to a rusty frame rail with pressure and return lines connected, viewed from underneath the vehicle. 1998 Ford Crown Victoria - An aluminum driveshaft lies on a concrete garage floor, with a U-joint yoke at one end and a splined slip yoke at the other, marked with re… 1998 Ford Crown Victoria - Close-up of a driveshaft's slip yoke and universal joint, showing a polished splined output shaft, a rusty U-joint cap, and a metal yoke, l… 1998 Ford Crown Victoria - Close-up of a driveshaft laid on a concrete floor, showing the metal tube with faint yellow and blue paint marks and a rusty U-joint yoke f… 1998 Ford Crown Victoria - A close up of the P71 aluminum driveshaft. Note the "POLICE" stamp. 1998 Ford Crown Victoria - Underbody close-up of a rusted metal bracket and lever with a red plastic clip, surrounded by black hoses and frame. 1998 Ford Crown Victoria - A rusty metal transmission crossmember or mount bracket resting on a dusty concrete floor, showing two bolt holes on the upper flanges and… 1998 Ford Crown Victoria - Underbody view of a coil suspension spring with a paper tag reading 'EPS' still attached, surrounded by a rusted exhaust pipe, brake and fu…
