Baer disc brakes install

From 1966 Ford Fairlane “Fairlane GT” — documented by ezgoing.

24 photos
← Back to this vehicle

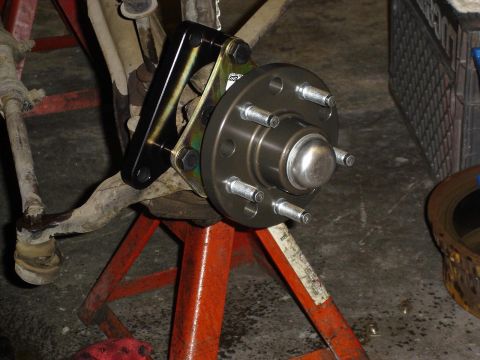

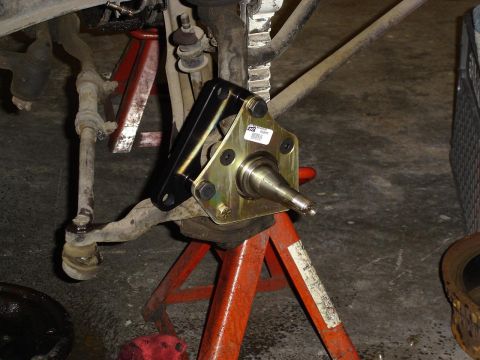

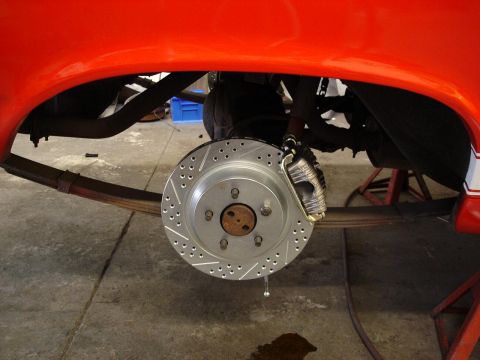

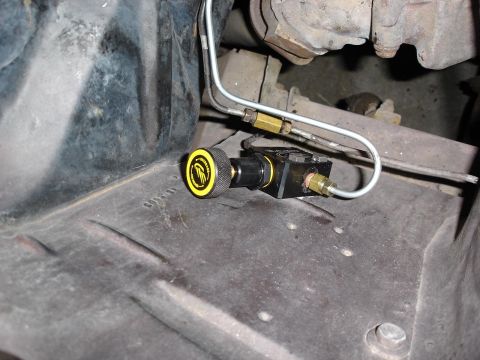

1966 Ford Fairlane - The old 14 inch wheels before the install. Nice, but they won't work with the big 13 inch Baer rotor and caliper. Bear recommends at least… 1966 Ford Fairlane - 17x7 Cragar S/S on the front with 4 inch backspace and 225/40 Nitto tires. No clearance problems with the fender or the subframe. I like th… 1966 Ford Fairlane - 13 inch rotors on the front and 12 inch rotors on the rear. Awesome! 1966 Ford Fairlane - The old, single reservoir, master cylinder. Thank you Lord that it never failed on me during all those years of daily driving. 1966 Ford Fairlane - The new master cylinder. It puts the brake lines a bit close to the valve covers, because the ports are on right side, but it works just fi… 1966 Ford Fairlane - Proportion valve, located on the right side of the engine bay (from the driver's seat point of view). Part# is 2000035. 1966 Ford Fairlane - Old front drum. Good bye sluggish brakes. 1966 Ford Fairlane - Down to the spindle. You can see the old hub in the blue tub. 1966 Ford Fairlane - The Baer hub and caliper bracket which will go on the front spindle. 1966 Ford Fairlane - Baer caliper bracket is installed on the front spindle. 1966 Ford Fairlane - Baer hub installed on the front spindle. 1966 Ford Fairlane - Front 13 inch rotor and caliper. Front kit part# is 4261029. Master cylinder comes with the kit. 1966 Ford Fairlane - Parts and pieces. All for the rear end, except for the master cylinder and proportion valve, of course. Rear kit part# is 4262036. 1966 Ford Fairlane - Old rear wheel and tire. Duffee Motorsports works on alot of Fords. :) 1966 Ford Fairlane - Old rear drum. They were noisey. Despite my maintenence. Bye Bye. 1966 Ford Fairlane - Down to the rear axle housing. 1966 Ford Fairlane - Baer clamp installed to hold the new brake line. 1966 Ford Fairlane - New brake line on. 1966 Ford Fairlane - Assembly continues. Baer bracket for the caliper is on and the axle is in. 1966 Ford Fairlane - Rear 12 inch rotor and caliper installed. 1966 Ford Fairlane - A look at the back side of the rear rotor. Note: new mounting tabs had to be welded on to each rear subframe rail to accomodate the park ca… 1966 Ford Fairlane - 17x9 Cragar S/S wheels on the rear with 5 inch backspace and 255/40 Nitto tires. 1966 Ford Fairlane - The axle flange had to be machined in order for the rear rotor to fit over it. 1966 Ford Fairlane - You can see the shiny new surface where the axle flange was machined.
