XM Receiver Install

From 2000 Jeep Cherokee — documented by casm.

11 photos
← Back to this vehicle

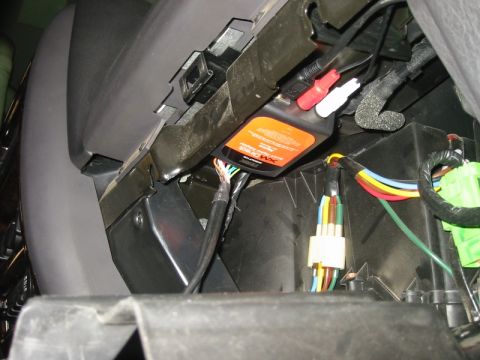

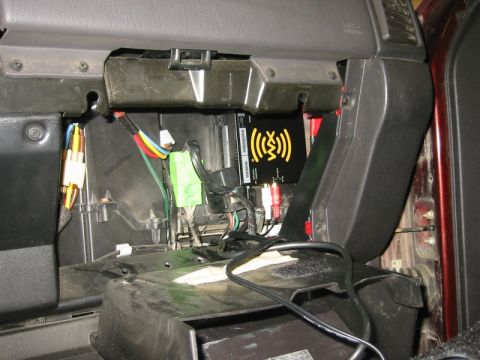

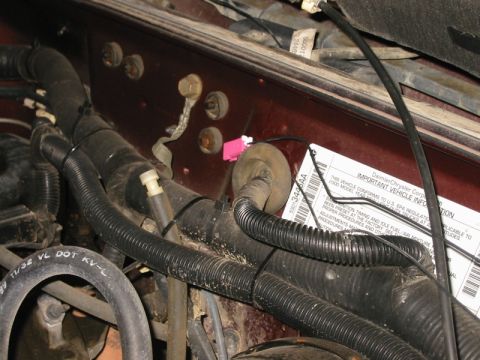

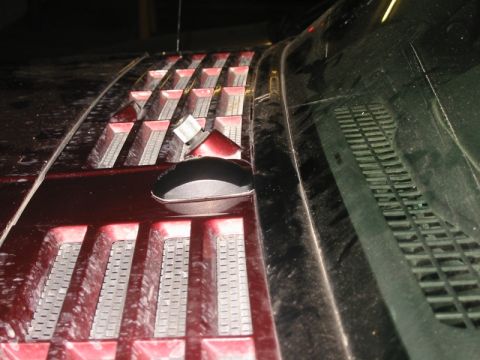

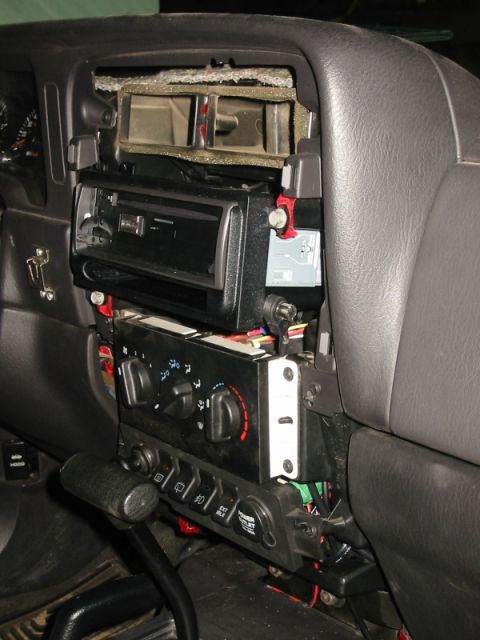

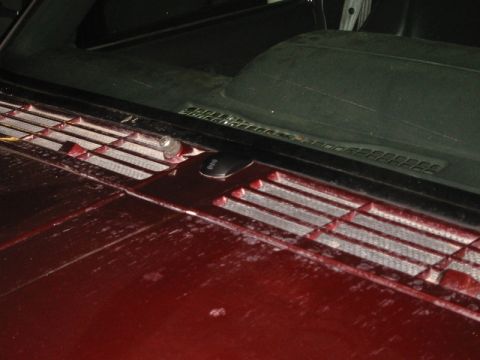

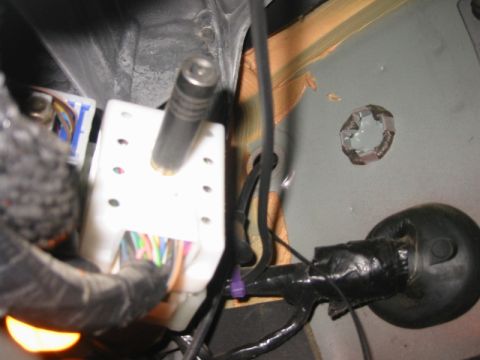

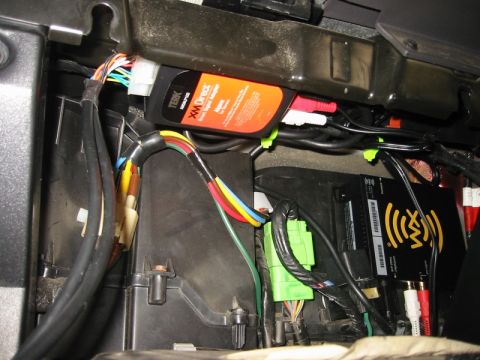

2000 Jeep Cherokee - Mounting location of XM receiver. It's held in place with industrial velcro; attaching the audio cables and control unit cable before putti… 2000 Jeep Cherokee - First attempted mounting location of the interface box that talks to the stereo. Didn't work out too well; ended up relocating the box. 2000 Jeep Cherokee - Everything in place and excess cabling neatly zip-tied up. Having to later relocate the interface box to a location where it could reach th… 2000 Jeep Cherokee - Disaster; the AI-Net cable is about eight inches too short to reach the head unit. Ended up moving the interface box as the only extension… 2000 Jeep Cherokee - Detail showing the routing of the antenna lead through the grommet that carries the wiring for the wiper motor from the engine bay to the c… 2000 Jeep Cherokee - Antenna in place against the windshield seal; this is just a test-fit without it permanently stuck in place. Note that the wiring to the an… 2000 Jeep Cherokee - Antenna in place against the windshield seal; the backing from the adhesive has been removed and it's now permanently mounted. Note that th… 2000 Jeep Cherokee - Detail showing the grommet around the hood release cable (look to the left of the plug in the bulkhead) that was removed to drop the antenn… 2000 Jeep Cherokee - This was the second attempt at making it all fit. Note the yellow zipties along the bottom edge of the glove box aperture: they're used to… 2000 Jeep Cherokee - Where the interface box ultimately ended up. I was trying to avoid using this location if at all possible, but it ended up being the only f… 2000 Jeep Cherokee - Success! All that remains to be done at this point is to activate my subscription.
