3/24/08 - Antec Case Modding

From 1978 Chevrolet C/K Pickup “RootBreaker” — documented by Jeffrey Riggs.

14 photos
← Back to this vehicle

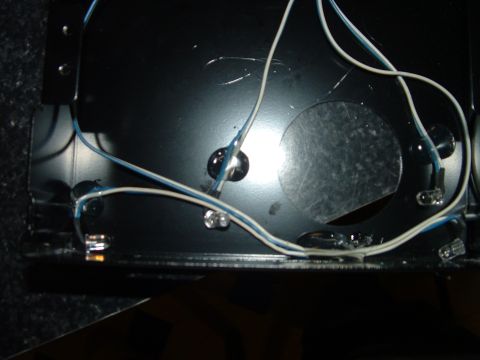

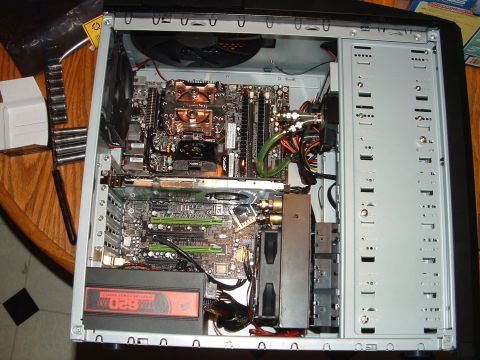

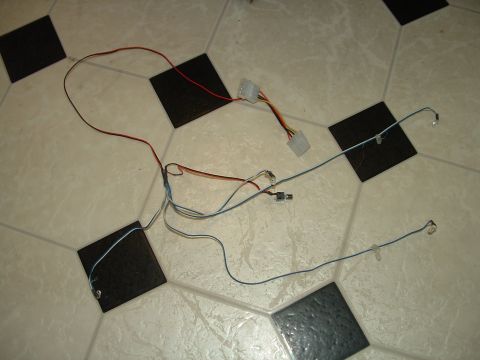

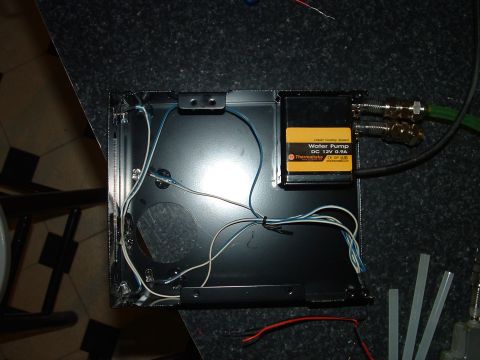

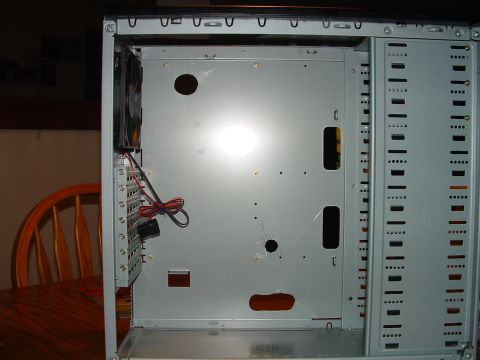

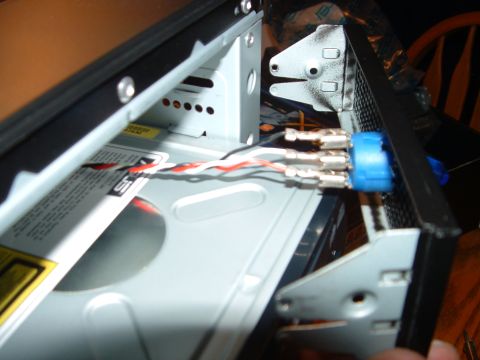

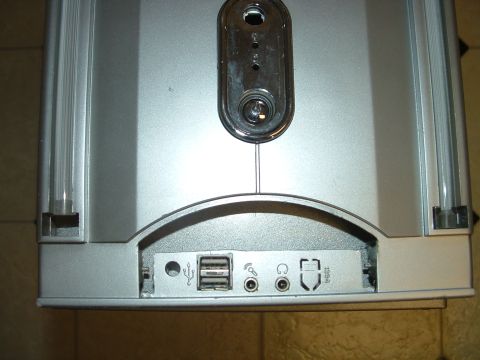

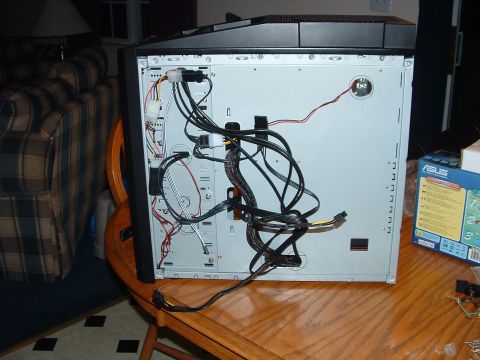

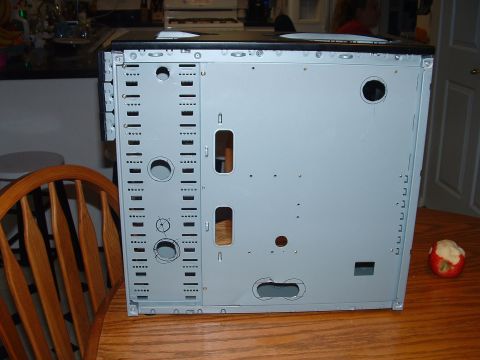

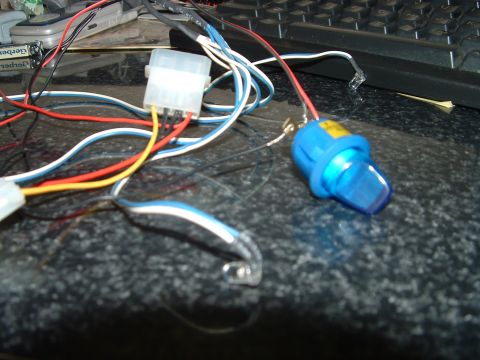

1978 Chevrolet C/K Pickup - Junk case donation for LED's 1978 Chevrolet C/K Pickup - crap case shot 2 1978 Chevrolet C/K Pickup - stock wiring pulled 1978 Chevrolet C/K Pickup - stock wiring with blue led togglelinc switch temporarily wired in... and it works!!!! 12v switch... led's were on a 5v rail... so may need… 1978 Chevrolet C/K Pickup - drilled some holes for cables to route out back.... 1978 Chevrolet C/K Pickup - Back shot...you case see where I drilled 3 holes on the left... Top one is for top power/reset/usb/audio/firewire connectors to come out ba… 1978 Chevrolet C/K Pickup - I added a switch to the LED's... why? I dunno why... came out OK I guess.. but do I need it...no... I may take the switch out...not sure ye… 1978 Chevrolet C/K Pickup - The only problem with the thermaltake kit I have is that you cannot see the water level. They give you a 5 1/4" bay unit where you should b… 1978 Chevrolet C/K Pickup - another shot of LED's 1978 Chevrolet C/K Pickup - all these wires would have been inside the case... but not now..... all behind the sheet metal that you will not see... 1978 Chevrolet C/K Pickup - Final Layout.. not sure as there are some issues... I plan on water cooling as you see the reservoir and radiator inside the case... howeve… 1978 Chevrolet C/K Pickup - Front view... Yes I know the switch is not centered... I screwed up. I have a second switch but they are not going to be even... plus I may… 1978 Chevrolet C/K Pickup - Top shot.. you can see the path the wires will take... from the top, through the side....
