4382 hits | 55.77 KB | Posted: 8/12/05

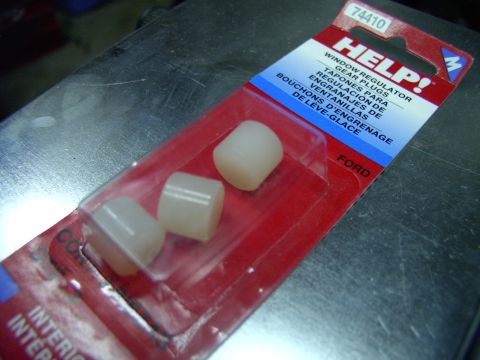

Help # 74410 gets you the nylon power window regulator gear plugs. At $6.00 it's a deal and you won'...

2239 hits | 43.56 KB | Posted: 8/13/05

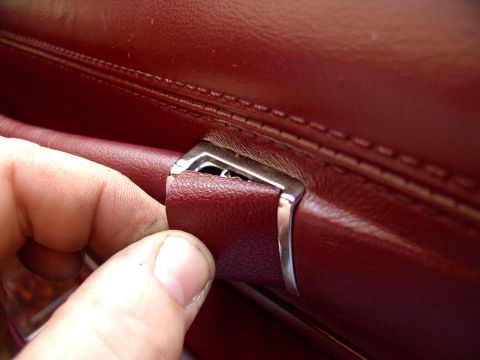

Pop the door pull handle trim covers off with a "right small" screwdriver and stash em' where you wo...

2035 hits | 57.54 KB | Posted: 8/13/05

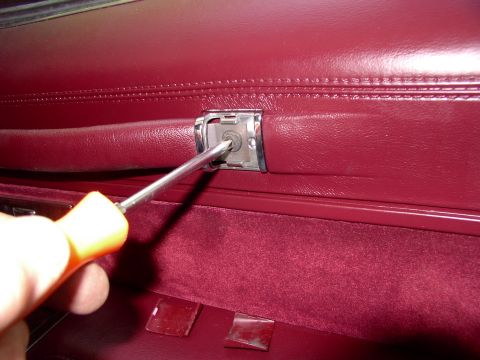

Off come these screws next

2574 hits | 41.93 KB | Posted: 8/13/05

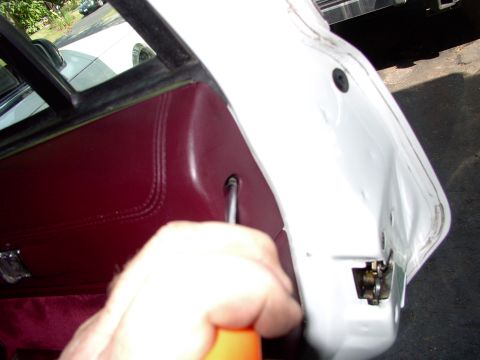

After this 3 rd screw and the fourth one on the inner side are removed you just pull from the bottom...

2962 hits | 44.31 KB | Posted: 8/13/05

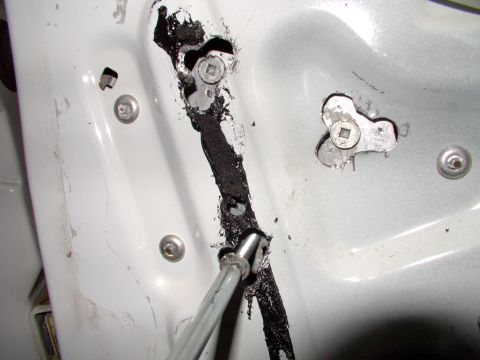

There was NO WAY I was drilling out all those rivets and removing the entire lift framework only to ...

2830 hits | 60.2 KB | Posted: 8/13/05

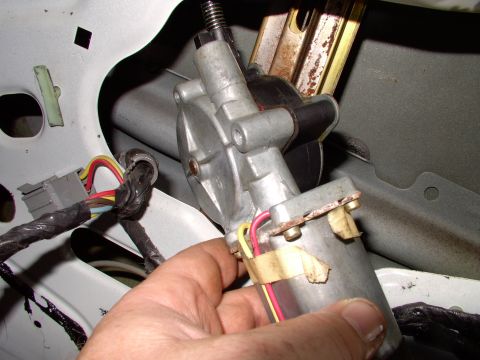

After the three bolts are out and you've unplugged the motor, just pull the motor out far enough to ...

2491 hits | 60.64 KB | Posted: 8/13/05

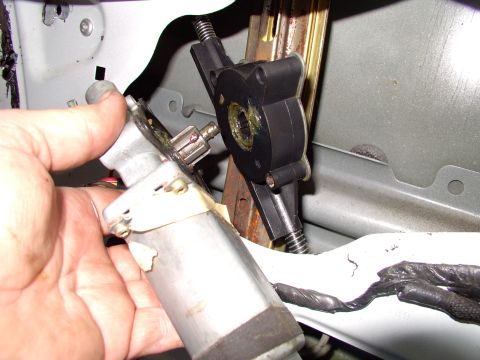

The motor just pulls seperate of the cable gearbox, which I did not want to mess with anyway.

2359 hits | 57.58 KB | Posted: 8/13/05

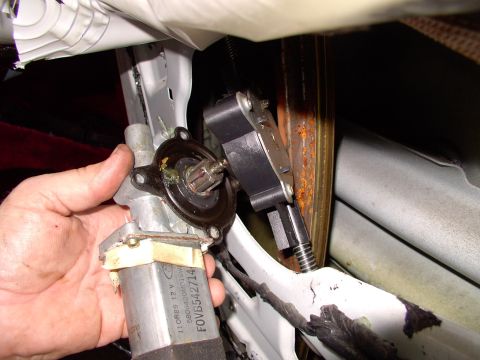

Now you and the motor can head to the bench, leaving the cable gearbox ALONE and untouched.

2216 hits | 68.66 KB | Posted: 8/13/05

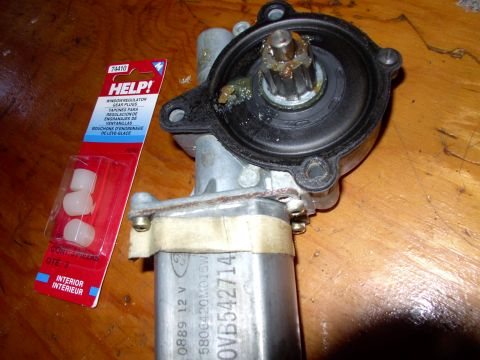

You're not going to believe how cheap, easy and fast this is to do !

2142 hits | 64.04 KB | Posted: 8/13/05

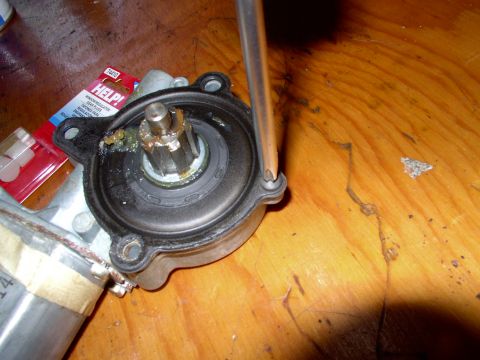

Out comes one philips screw

2104 hits | 64.56 KB | Posted: 8/13/05

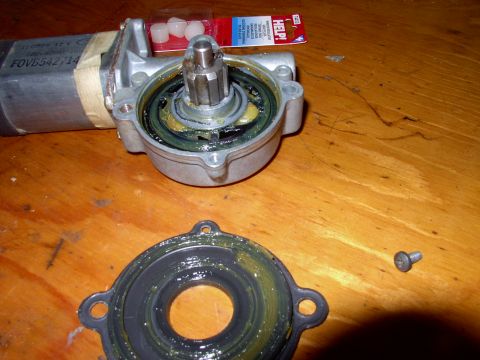

Everything looks normal so far

2067 hits | 58.76 KB | Posted: 8/13/05

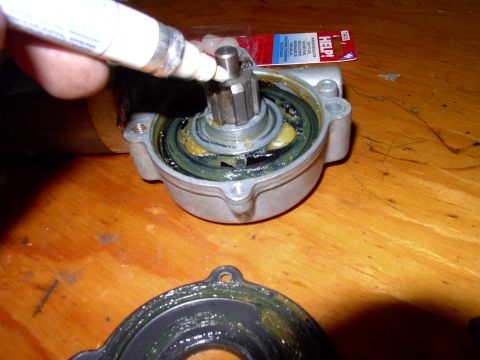

Just to be safe I index marked the gear with the case, to help reassembly.

2058 hits | 67.09 KB | Posted: 8/13/05

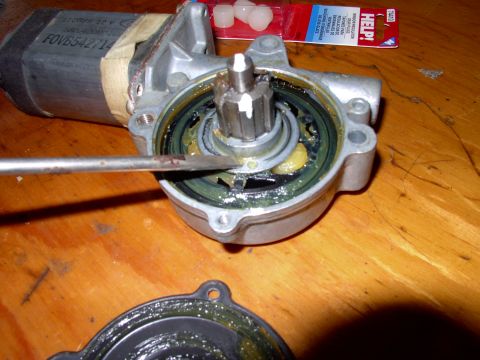

In case anything moves I'll have a reference point to go by.

2695 hits | 65.3 KB | Posted: 8/13/05

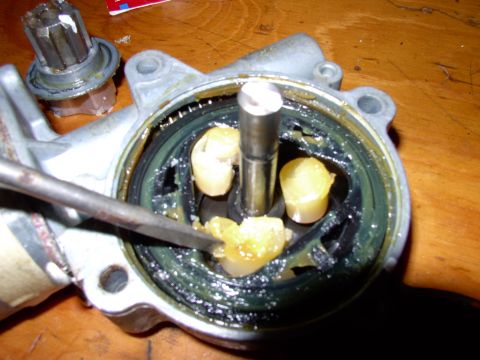

With the center gear off (behind motor housing on bench) you can see those little nylon gear plugs h...

2597 hits | 59.17 KB | Posted: 8/13/05

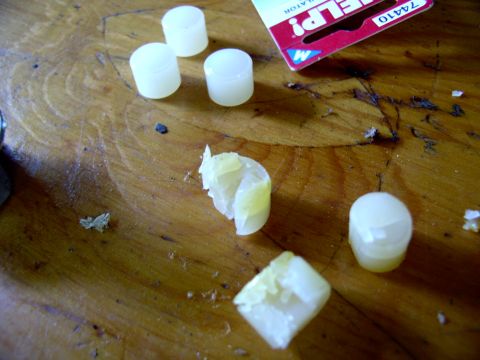

The new ones at the rear of the photo against the crushed originals closer to you.

2138 hits | 67.84 KB | Posted: 8/13/05

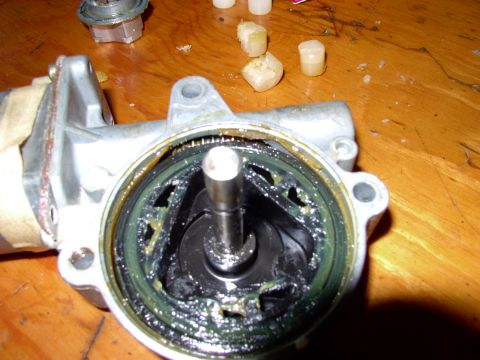

Here's a shot of the empty gear casing.

2300 hits | 71.5 KB | Posted: 8/13/05

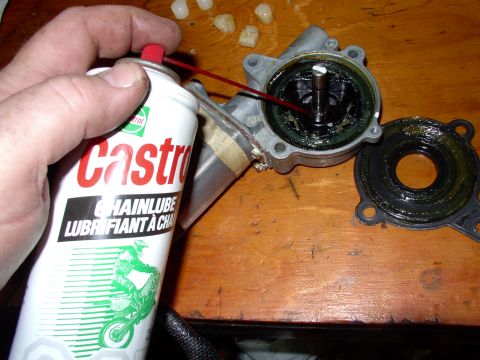

I pre-sprayed the housing with motorcycle chain lube before dropping in the new nylon gear plugs

2636 hits | 62.78 KB | Posted: 8/13/05

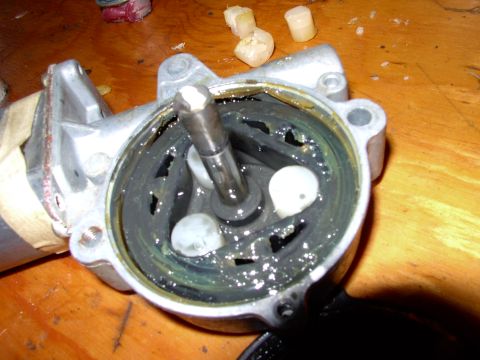

That's all there really is to the gearbox insides. Not really a bad system especially considering ho...

2237 hits | 66.32 KB | Posted: 8/13/05

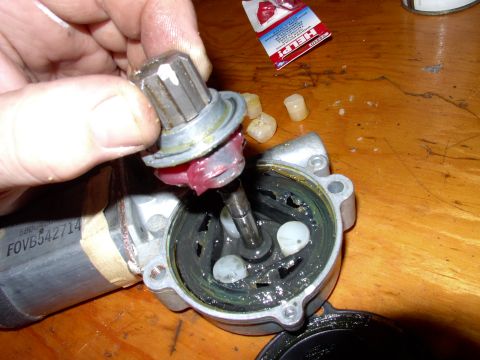

After slapping plenty of synthetic grease onto the top gear, It's pushed back on the shaft indexed t...

2241 hits | 69.06 KB | Posted: 8/13/05

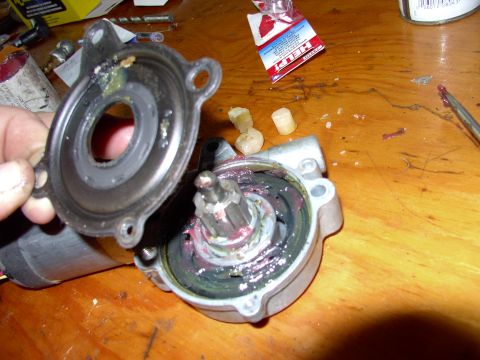

Put the cover and one screw back on and bolt it back onto the cable gearbox through the new holes in...
