Sidestand Bracket Plates Blueprint - 3/16" Flat Strap Fabrication Drawing

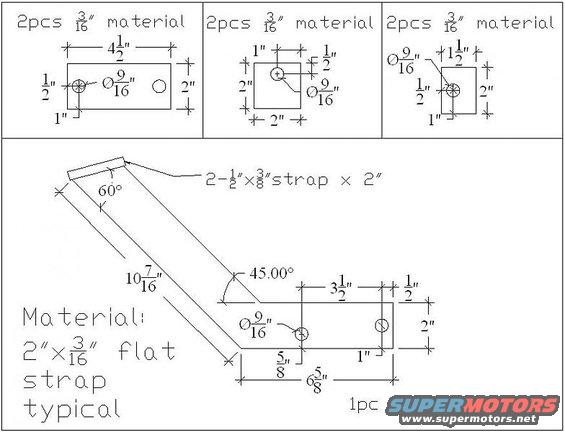

This is a fabrication blueprint (CAD-style dimensioned drawing) for a set of small steel plates and a bent flat-strap bracket, uploaded as part of a set of drawings (with related files Baseplate, Hinge assembly, Sidestand, Sidestand lift) apparently for a motorcycle sidestand/lift project. The top of the sheet shows three small rectangular plates, each to be made in quantities of 2 pieces from 3/16" material: a 4-1/2" x 2" plate with Ø9/16" holes located 1/2" and 1" from the edges; a 2" x 2" plate with a Ø9/16" hole 1" from one edge and 1/2" from the top; and a 1-1/2" x 2" plate with a Ø9/16" hole 1" and 1/2" from the edges. The lower portion shows a one-piece bracket made from 2" x 3/16" flat strap (noted as typical material): a 10-7/16" long arm angled at 45.00° to a 6-5/8" horizontal section 2" wide, with two Ø9/16" holes spaced 3-1/2" apart (1/2" and 1" from the ends, 5/8" from the lower edge), plus a short 2-1/2" x 3/8" strap x 2" piece welded at 60° to the top end.
