Jeep TSB 23-024-08 page 2 with latch catch plate diagram and lab…

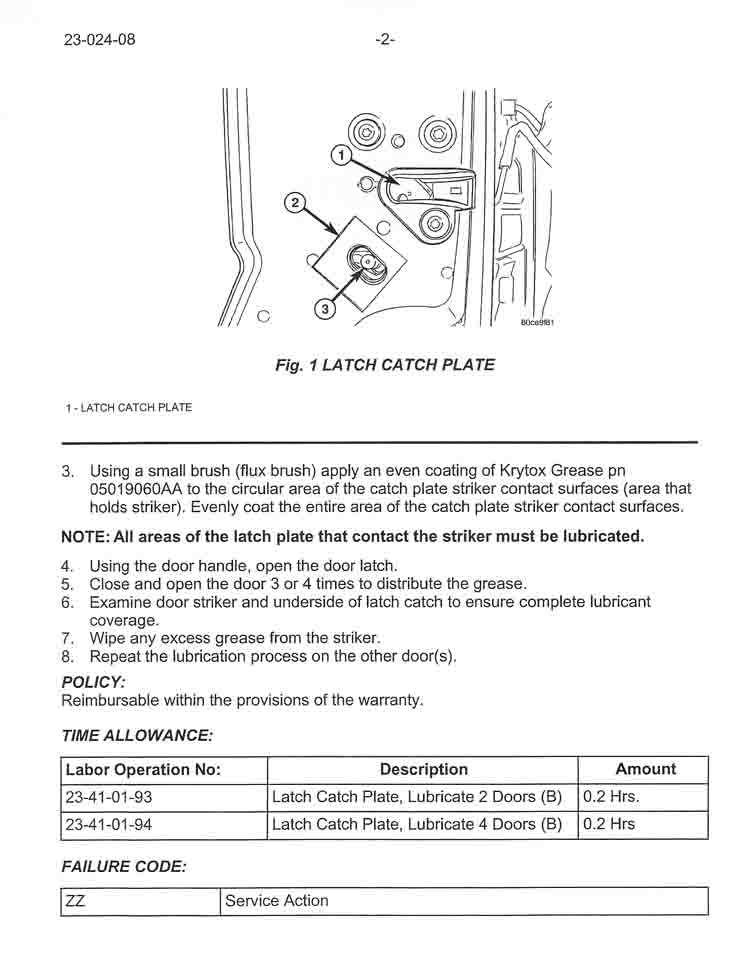

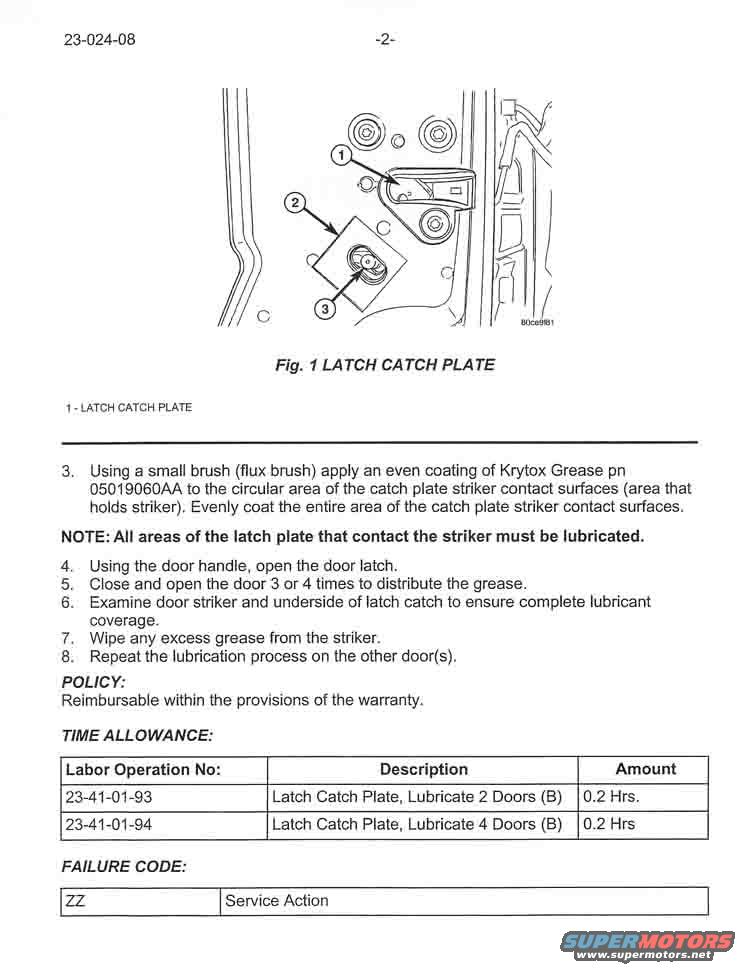

Page 2 of Service Bulletin 23-024-08, with a line diagram labeled Fig. 1 Latch Catch Plate showing the door jamb striker area and callouts, plus repair steps for brushing Krytox grease PN 05019060AA onto the catch plate striker contact surfaces. The bottom lists labor operations 23-41-01-93 and 23-41-01-94 at 0.2 hours each and failure code ZZ.
