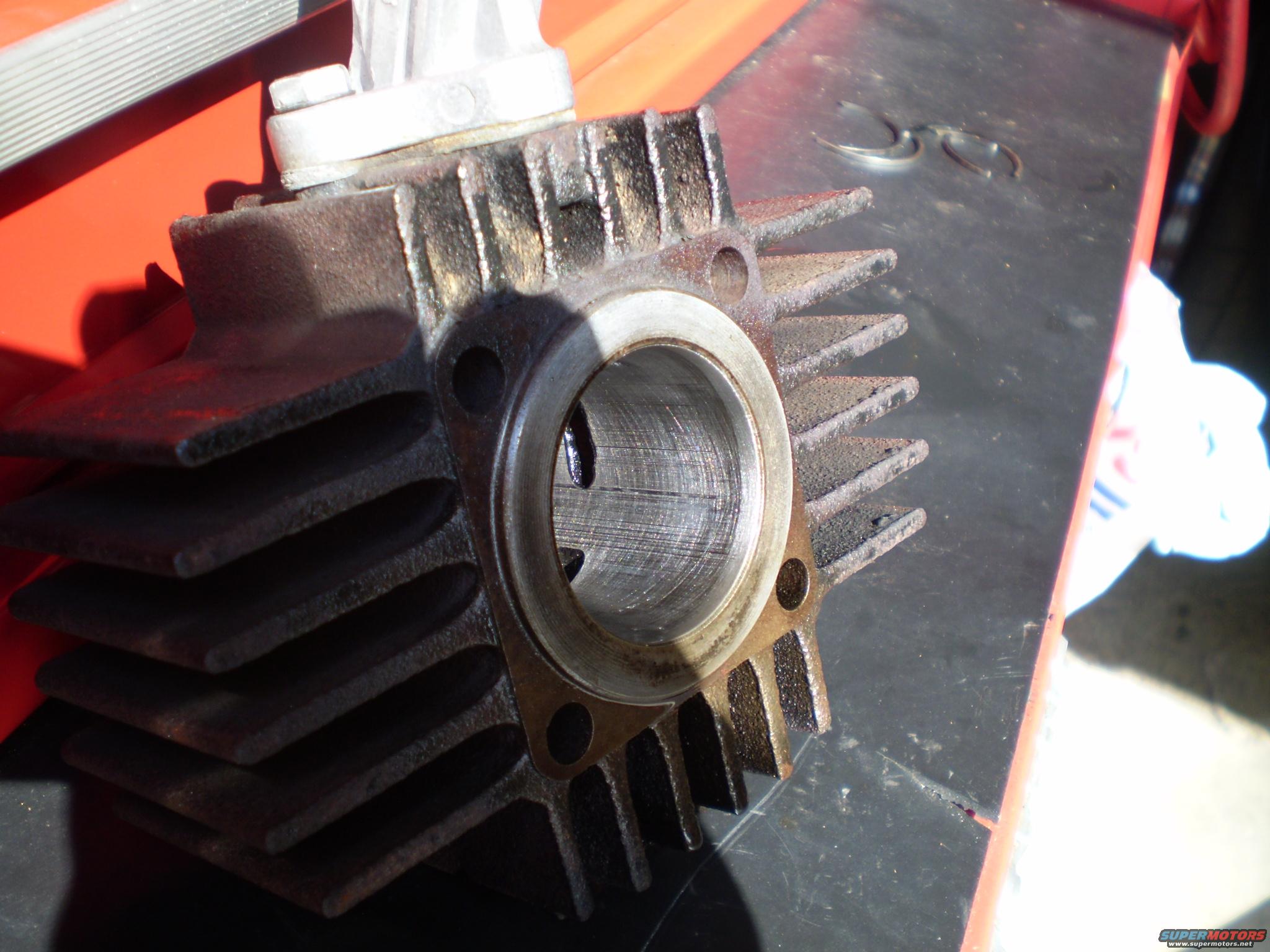

A removed two-stroke cylinder standing on a red tool box top, viewed down into the bore to show honing marks and the transfer/exhaust port openings, with rusty cast-iron cooling fins and four stud holes around the base flange. The intake spigot is fitted at the top rear.
