TrackBar Drop Bracket

From 1975 Ford Bronco “EB eB SOLD” — documented by Steve83.

18 photos
← Back to this vehicle

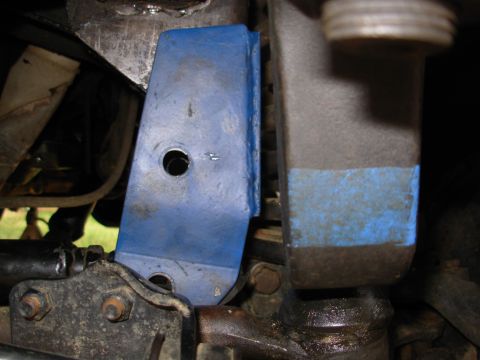

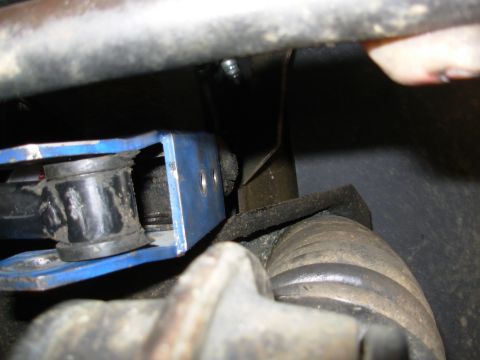

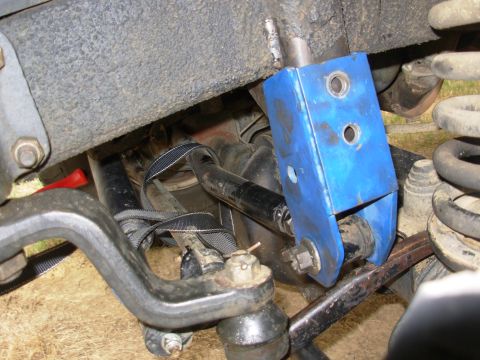

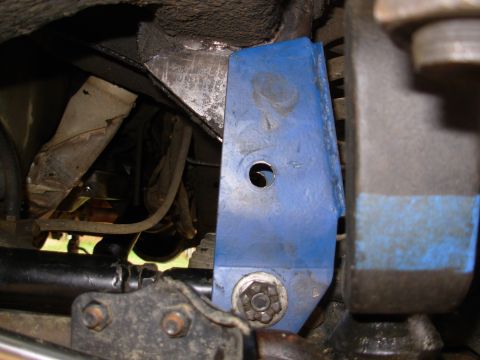

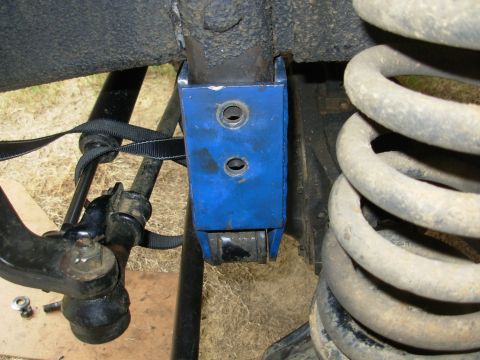

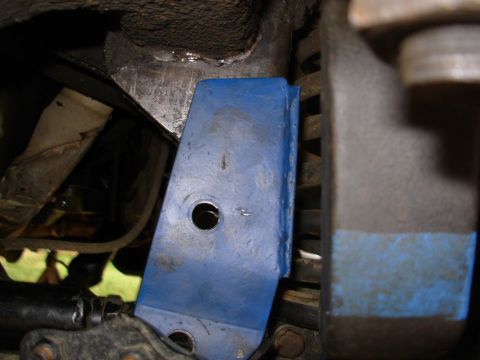

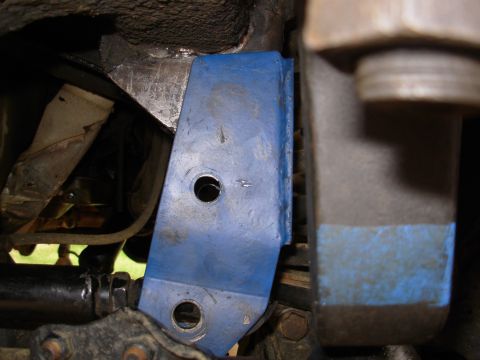

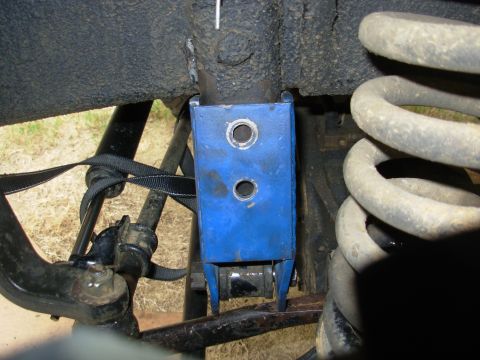

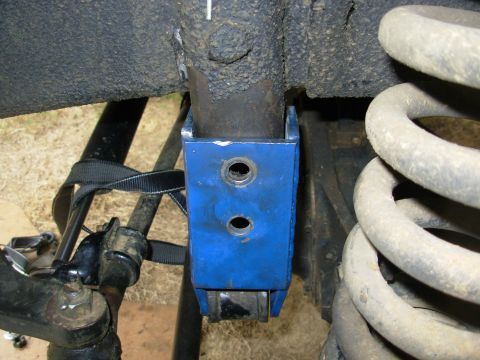

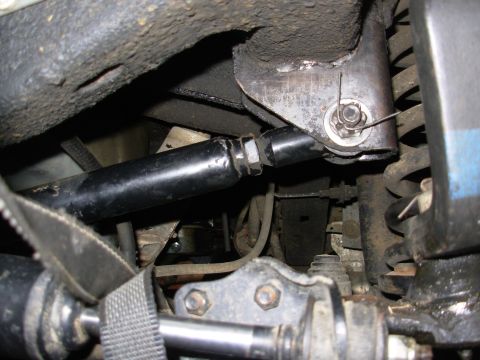

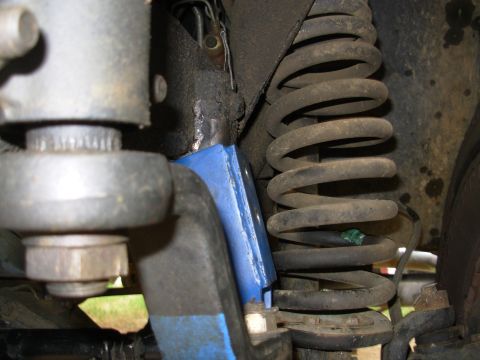

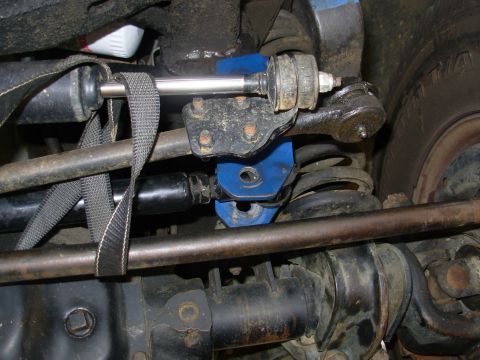

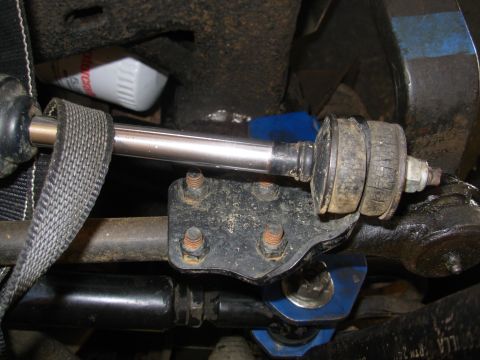

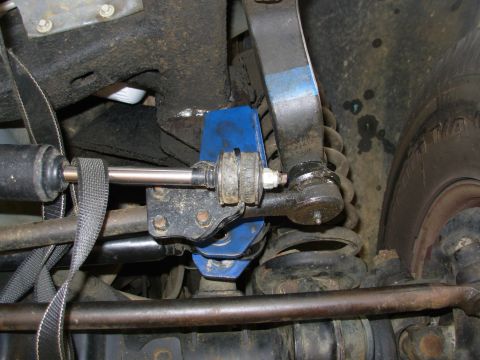

1975 Ford Bronco - There's some noticeable bumpsteer with the stock pitman arm being unaligned to the track bar. It's actually worse than it appears from this… 1975 Ford Bronco - Pitman arm swap. (2/26/07) 1975 Ford Bronco - This is after installing the correct drop pitman arm. (2/26/07) It's actually better than it appears from this angle. 1975 Ford Bronco - Frank has been driving this way for about a year, with no major problems. It's much better than before we installed the drop pitman arm & h… 1975 Ford Bronco - I test fitted the bracket by pulling the track bar bolt and dropping the bar (the truck didn't move in relation to the axle) so I could eye… 1975 Ford Bronco - Here, it's obvious how far away from the frame the new bracket is. 1975 Ford Bronco - It's pushed up as far as possible (against the bottom of the frame), and the hole in the original bracket is barely visible in the bottom o… 1975 Ford Bronco - Just another angle showing how it sits. 1975 Ford Bronco - Note that this is an adjustable track bar, and it's adjusted all the way in. http://classicbroncos.com/forums/showthread.php?p=1648850#post… 1975 Ford Bronco - Since it doesn't lie flat with the bolt in, I removed it to see how far away it is from the track bar eye when it's flat against the frame… 1975 Ford Bronco - Since it doesn't lie flat with the bolt in, I removed it to see how far away it is from the track bar eye when it's flat against the frame… 1975 Ford Bronco - Since it doesn't lie flat with the bolt in, I removed it to see how far away it is from the track bar eye when it's flat against the frame… 1975 Ford Bronco - But pressing against the frame bracket does nothing to align it with the hole. 1975 Ford Bronco - So here it is flat against the frame AND pushed down until the upper hole is aligned with the one in the frame bracket. 1975 Ford Bronco - It's obvously flat against the frame, but it's equally obvious that the holes aren't drilled straight down from the original location, so t… 1975 Ford Bronco - It's obvously flat against the frame, but it's equally obvious that the holes aren't drilled straight down from the original location, so t… 1975 Ford Bronco - Just another angle showing how far away from the bar eye the bracket's hole is when the bracket is flat against the frame & aligned with th… 1975 Ford Bronco - THAT's where it goes: on a '76-77 frame. No wonder it didn't fit on a '75. The white line painted on the frame at the top of the pic is a l…
