MSD 6AL install

From 1981 Ford Bronco “1BadBronco” — documented by Matt Kenney.

10 photos
← Back to this vehicle

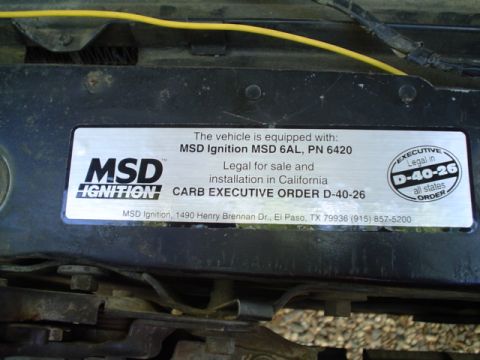

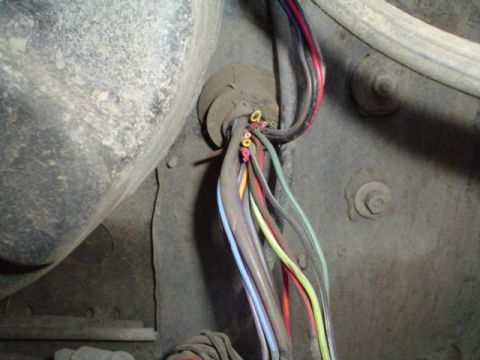

1981 Ford Bronco - Look mom dual ignitions!!! JK the 6A under the dash doesnt have a home right now 1981 Ford Bronco - These are the tools necessary for the install. Not pictured is some solder or any crimp connecters nessecary. 1981 Ford Bronco - Step one... disconnect battery. Step two find suitable mounting spot. With an NP 435 this was the most logical spot inside the cab. Drill h… 1981 Ford Bronco - Next would be to connect the fat red wire to the battery(or battery power in this case) Then the thick black wire to ground, I used the pas… 1981 Ford Bronco - the smaller red wire, thats next to the white wire that never gets used, goes to a 12V switched source. this case its the blue switch... tu… 1981 Ford Bronco - the purple and green wires are the crank trigger or distributor wire, plug one end into the short wires hanging out of the ignition and...{… 1981 Ford Bronco - the other end here 1981 Ford Bronco - the brown and orange wire go to the pos and neg of the coil. The green wire of your tach can go to the tach output on the ignition. 1981 Ford Bronco - If your not the "backup type of person" remove your stock ignition and cut every single wire going to it.(not responsible for you cutting a… 1981 Ford Bronco - California and sticker crazy people affix this CARB sticker underhood... your done!! Happy Horsepower!
