Panther Electronic Engine Controls / Ignition

From 1996 Mercury Grand Marquis “The "LSE S/C"” — documented by Drock96marquis.

23 photos
← Back to this vehicle

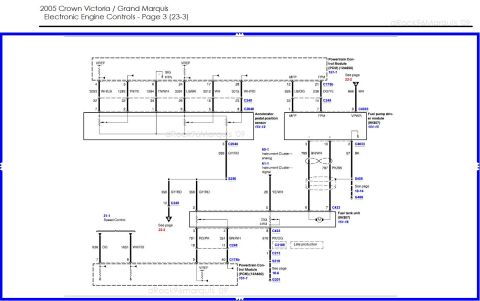

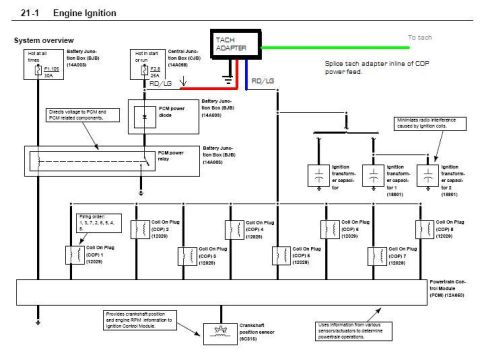

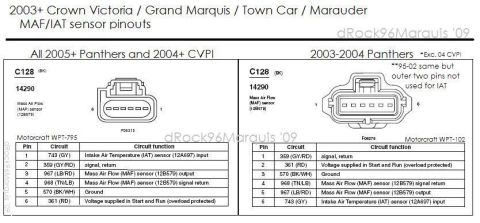

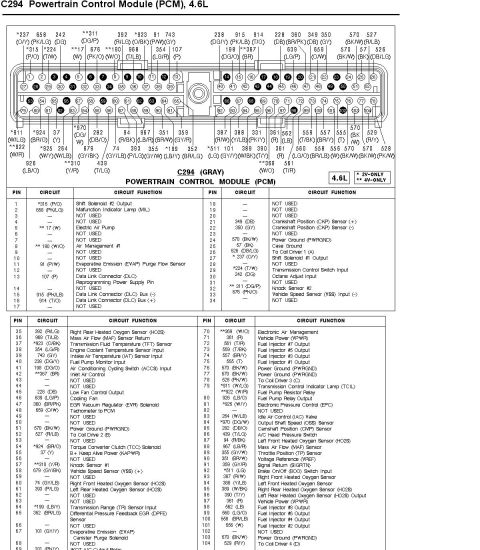

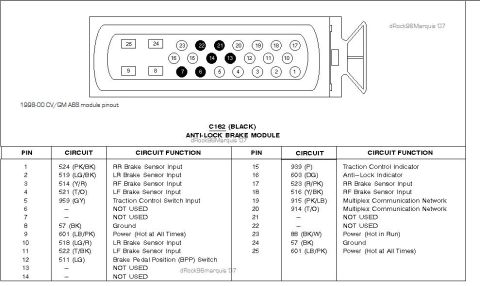

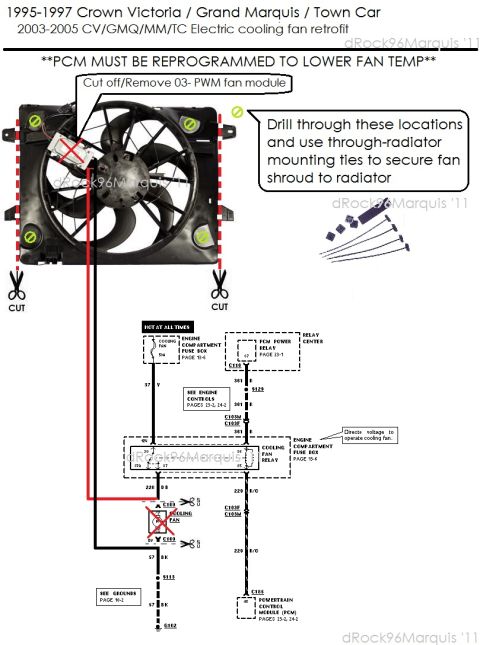

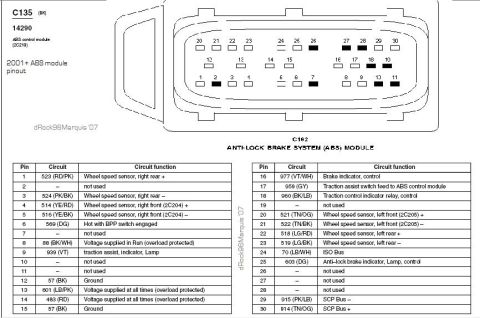

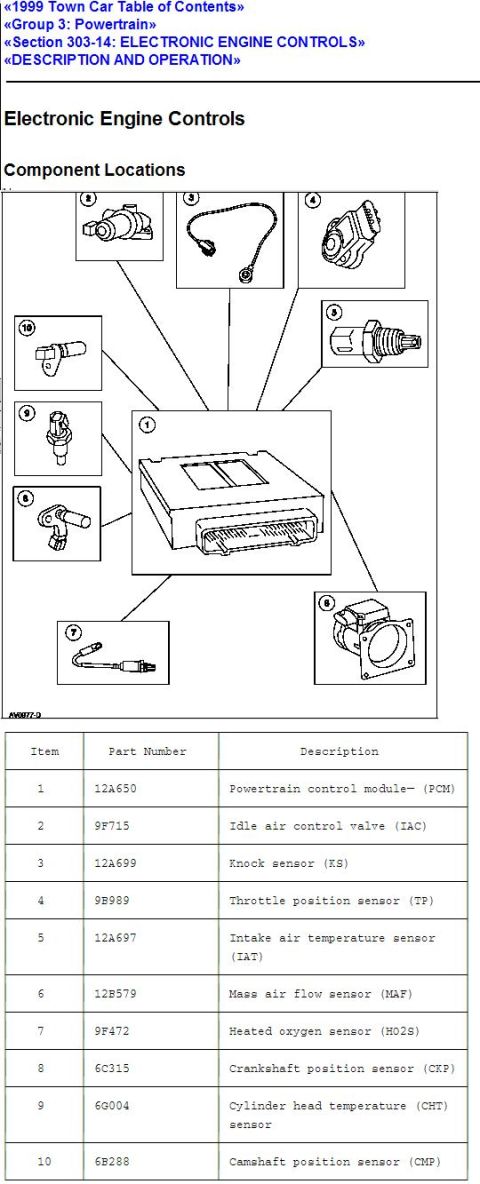

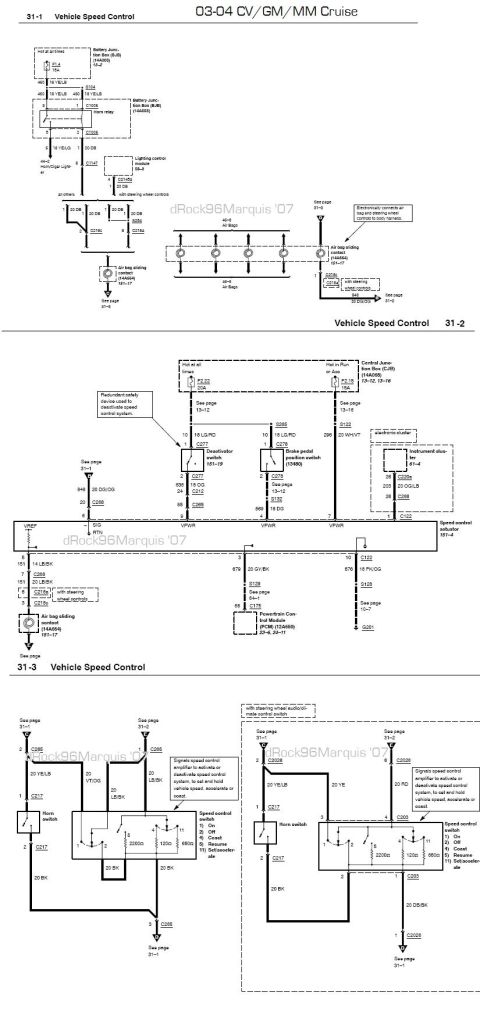

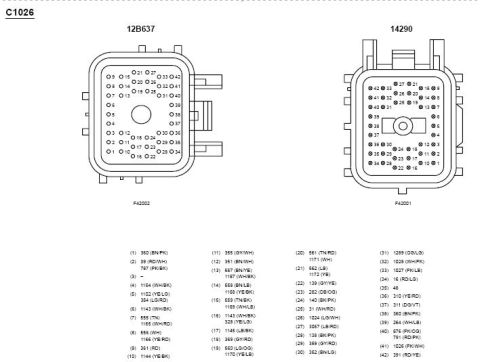

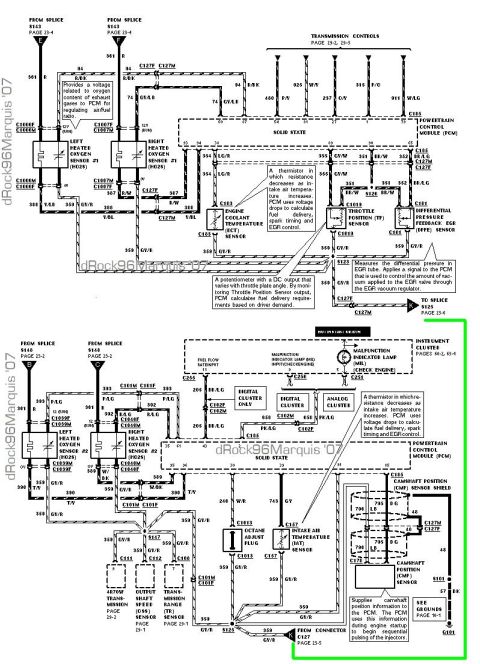

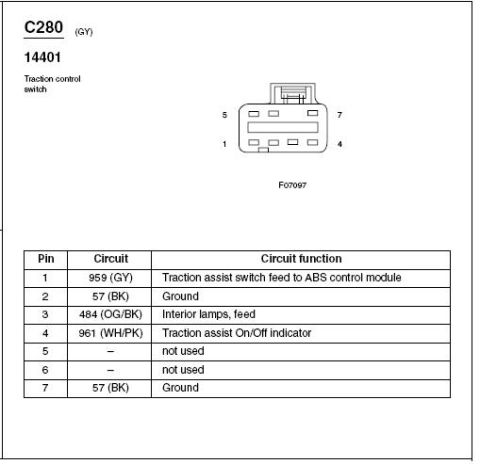

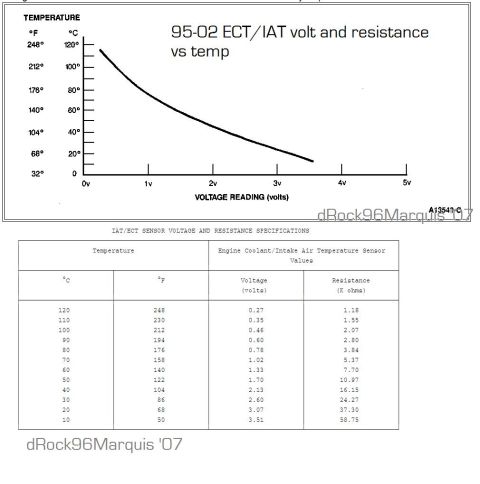

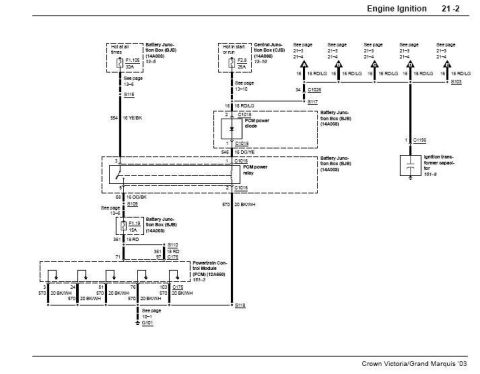

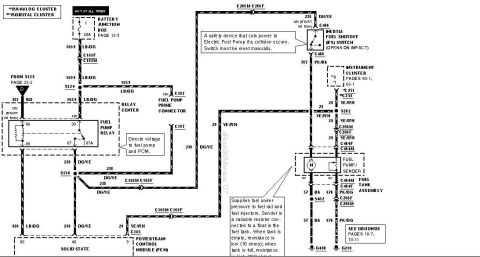

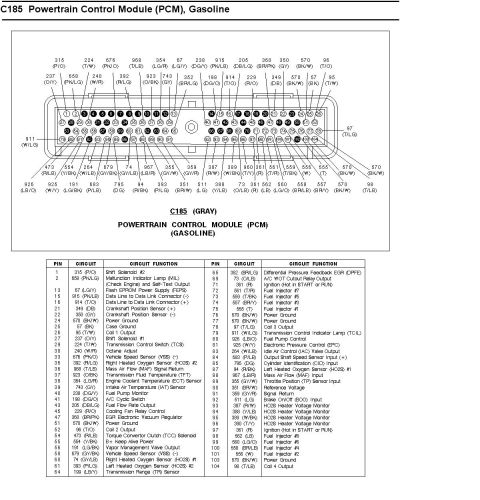

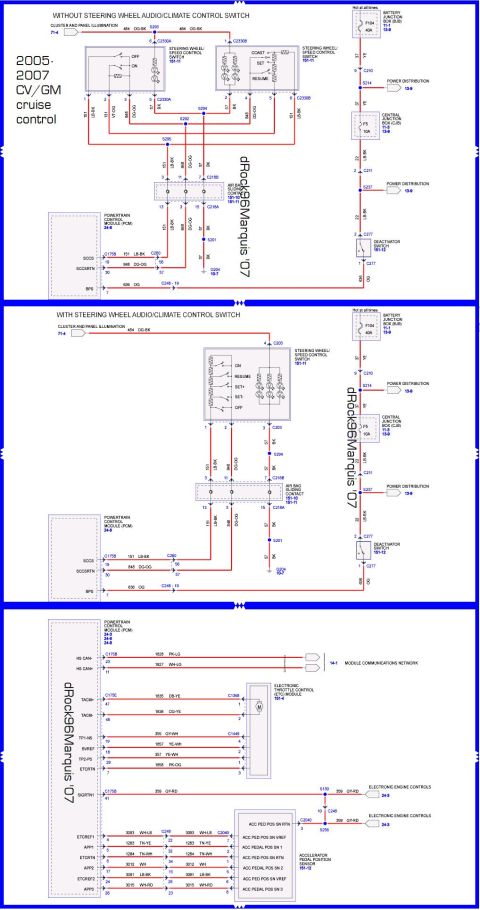

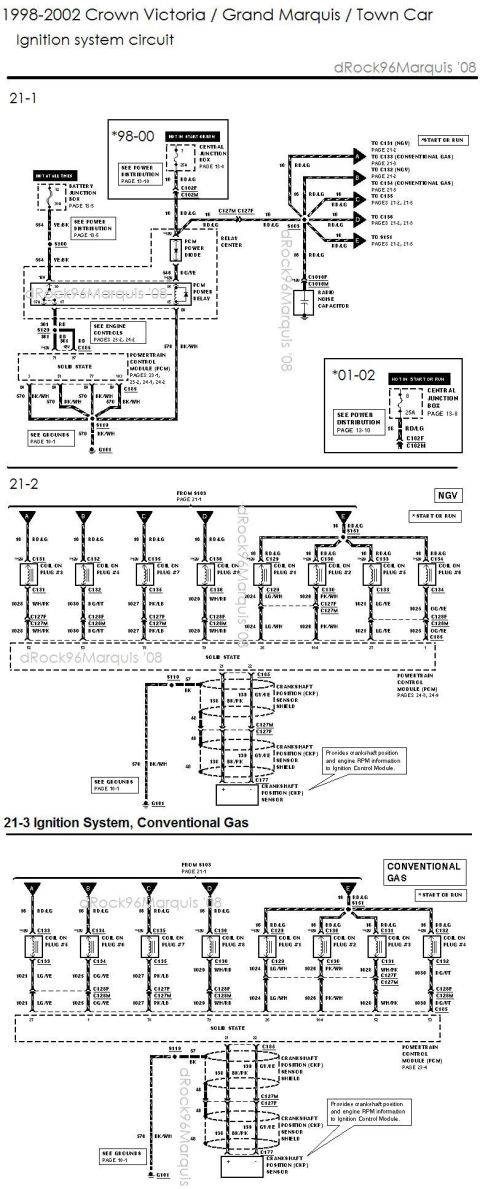

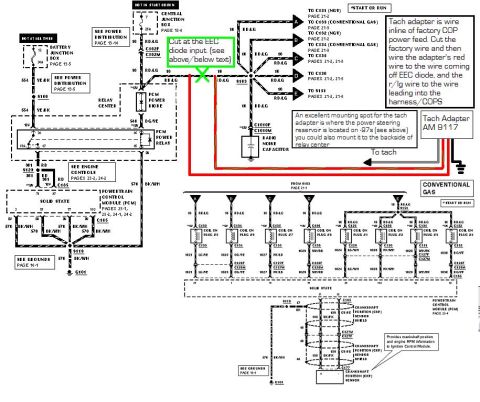

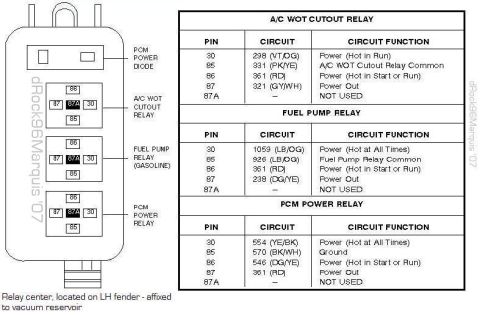

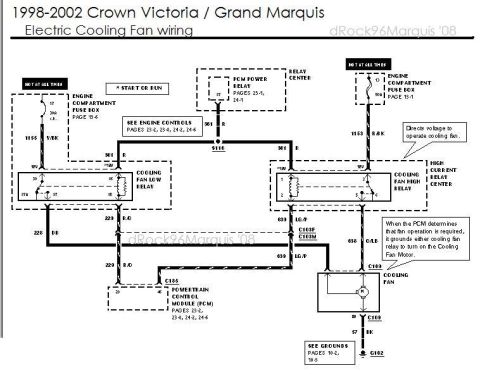

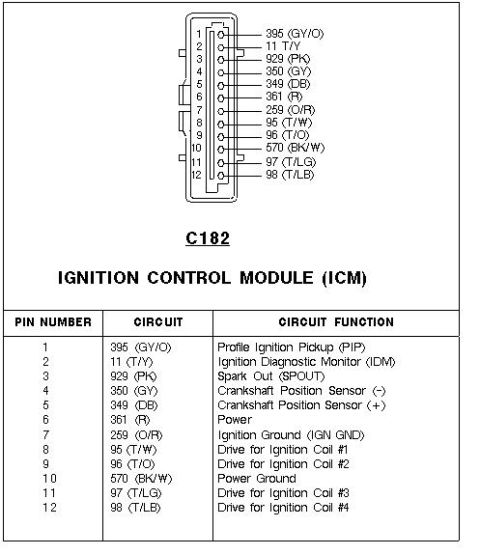

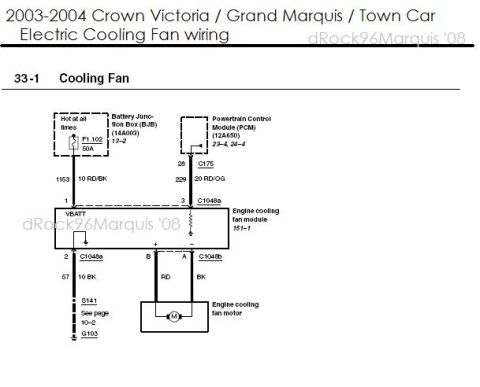

1996 Mercury Grand Marquis - 1998-2002 Crown Vic / Grand Marquis/ Town Car Ignition system wiring 1996 Mercury Grand Marquis - 1998-2002 CV/GMQ/TC cooling fan wiring 1996 Mercury Grand Marquis - 2003-2004 CV/GMQ/TC cooling fan 1996 Mercury Grand Marquis - 1999 Town Car Electronic Engine Controls summary 1996 Mercury Grand Marquis - 2003+ Trac switch 1996 Mercury Grand Marquis - Relay Center - LH Fender apron 1995-2002 1996 Mercury Grand Marquis - 1998-2002 fuel system wiring 1996 Mercury Grand Marquis - 95-97 o2 sensor wiring 1996 Mercury Grand Marquis - 03-04 cruise 1996 Mercury Grand Marquis - 2001+ cv/gm/mm ABS module pinout 1996 Mercury Grand Marquis - '98 cv/gm ABS module pinout 1996 Mercury Grand Marquis - 95-02 panther IAT and ECT temp vs volts/ohms chart 1996 Mercury Grand Marquis - 2005+ CV/GM cruise control. 1996 Mercury Grand Marquis - http://www.crownvic.net/drock96marquis/tach.htm PCM diode /cop layout, 03 1996 Mercury Grand Marquis - http://www.crownvic.net/drock96marquis/tach.htm 03 c1026 1996 Mercury Grand Marquis - http://www.crownvic.net/drock96marquis/tach.htm 03-05 Tach info 1996 Mercury Grand Marquis - http://www.crownvic.net/drock96marquis/tach.htm 1996 panther plaform PCM pinout 1996 Mercury Grand Marquis - http://www.crownvic.net/drock96marquis/tach.htm 1996 Mustang 4.6l 2v and 4v PCM pinout 1996 Mercury Grand Marquis - http://www.crownvic.net/drock96marquis/tach.htm 98-02 Tach retrofit wiring 1996 Mercury Grand Marquis - http://www.crownvic.net/drock96marquis/tach.htm EDIS Tach install 1996 Mercury Grand Marquis - 1995+ CV/GMQ/TC/MM MAF connectors 1996 Mercury Grand Marquis - 2005 CV/GMQ engine controls page 3 (I will be uploading the rest within the next day or two) 1996 Mercury Grand Marquis - 03-05 Cv/GMQ/MM/TC electric cooling fan retrofit into 95-97 CV/GMQ/TC
