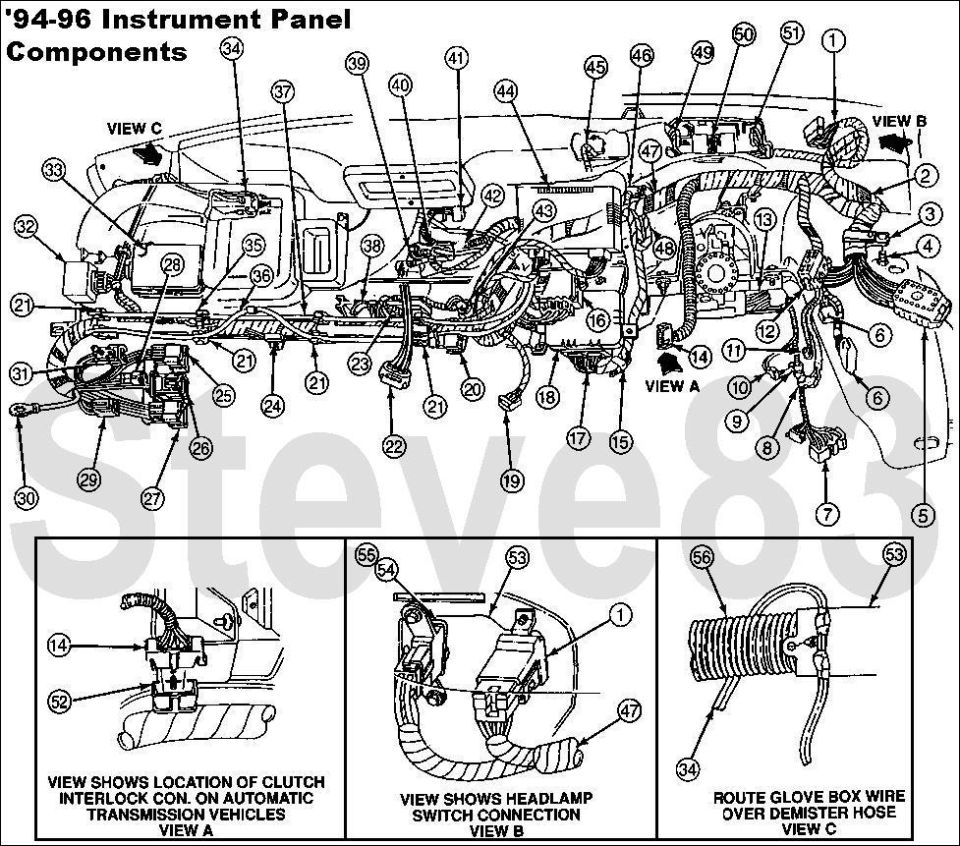

Dash Components '94-96 ('96 DLC not shown, near 24)
IF THE IMAGE IS TOO SMALL, click it.



To find something on this list, press CTRL F (Find) and type the name while watching the number of hits, and what becomes highlighted. Try other names if necessary.

1 - Takeout to Headlamp Switch (Part of 14401)
2 - Takeout to Fuse Box (Part of 14401)
3 - CB Retainer 14A282
4 - Screw N606678-S36
5 - Engine Control Sensor Wiring 12A581
6 - Connector to 14A504 (Part of 14401)
7 - Multi-Function Switch13K359
8 - Connector to Stoplamp Switch (Part of 14401)
9 - Clip
10 - E4OD Pigtail (Part of 14401)
11 - Connector to Park Lamp Signal Switch (Part of 14401)
12 - Rear Lamp Wiring 14405
13 - Takeout to Ignition Switch and Steering Column (Part of 14401)
14 - Connector to Clutch Interlock Switch (Part of 14401)
15 - Takeout to Remote Keyless Entry Module
16 - Connector to Warning Buzzer Chime (Part of 14401)
17 - Connector to Remote Keyless Entry Module
18 - Air Bag Diagnostic Module (ADM)
19 - Connector to Overspeed Warning (Part of 14401)
20 - Connector to Trailer Brake Connector (Part of 14401)
21 - Wiring Shield (2 Req'd) 14A099
22 - Vacuum Hose Clip
23 - Connector to Ash Receptacle Wiring (Part of 14401)
24 - Connector to PSOM Test Circuit (Part of 14401)
25 - Connector to 14A265 Wiring Assembly14A265
26 - Connector to 14B095 Wiring Assembly14B095
27 - Connector to 18A586 Wiring Assembly18A586
28 - Connector to Right Courtesy Lamp Switch (Part of 14401)
29 - Connector to Inertia Switch (Part of 14401)
30 - Takeout to Ground (Part of 14401)
31 - Connector to Clearance Lamp (Part of 14401)
32 - Connector to Wiper Control Module (Part of 14401)
33 - Rear Brake Anti-Lock Control Module F-SERIES ONLY
34 - Takeout to Glovebox Lamp (Part of 14401)
35 - Takeout to Brake Anti-Lock Module Test Circuit (Part of 14401)
36 - Takeout to Radio Antenna (Part of 14401)
37 - Takeout to Bowden Cable (Part fo 14401)
38 - Takeout to Cigar Lighter (Part of 14401)
39 - Takeout to Heater Mode Switch (Part of 14401)
40 - Takeout to A/C Illumination (Part of 14401)
41 - Connector to Radio (Part of 14401)
42 - Takeout to A/C Blower Switch (Part of 14401)
43 - Takeout to Power Point (Part of 14401)
44 - Connector to Premium Sound Amplifier (Part of 14401)
45 - Takeout to Shift on the Fly Switch (SOF) (Part of 14401)
46 - Takeout to Electric Defroster (Bronco) 14A262
47 - Main Wiring14401
48 - Take-Out to ESOF Switch, and Electric Defrost Switch (Part of 14401)
49 - Takeout to Cluster (Plug A) (Part of 14401)
50 - Takeout to PSOM (Part of 14401)
51 - Takeout to Cluster (Plug B) (Part of 14401)
52 - Cap 14B155-BA (Engr.No. E8TB-14A624-AB)
53 - Instrument Panel 04320
54 - Connector to Dual Fuel Tank Switch (Part of 14401)
55 - Connector to Rear Window Control Switch (Bronco) (Part of 14401)
56 - Demister Hose (Part of 04320)
