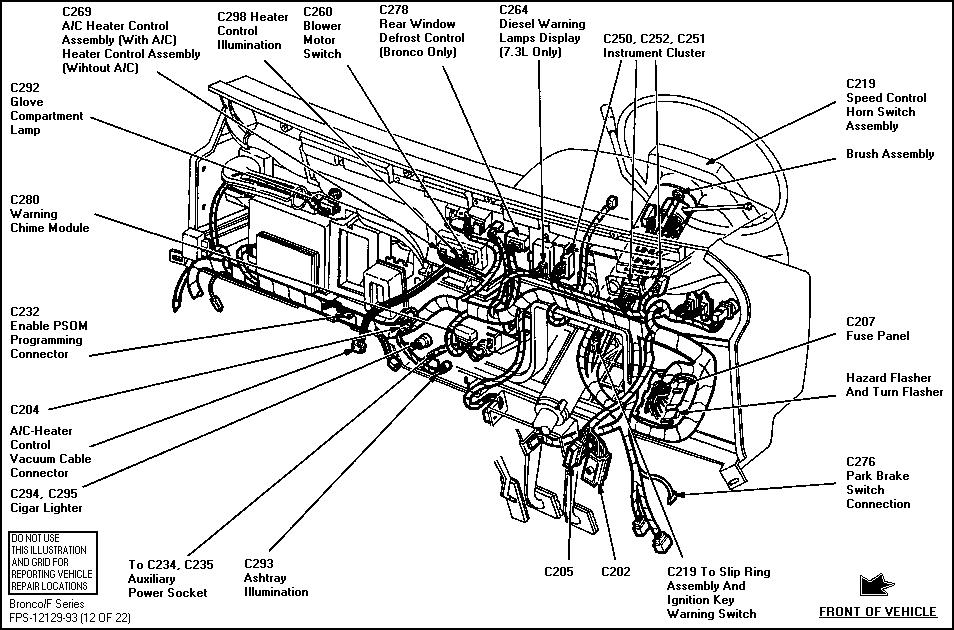

Ford Bronco series dashboard wiring and connector location diagr…

'93 Bronco Dash Connectors
IF THE IMAGE IS TOO SMALL, click it.

'92-96 Dash Removal
1) Remove the glove box (tilt, depress stops, pop hinge), knee bolster (2 7mm/T20 screws), upper (3 phillips) & lower (3 pushpins) A-pillar covers; remove the ground eyes from the green bolts and replace the bolts; unplug any dash connectors including the radio antenna
2) Remove the e-brake wire, then 3 11mm (7/16") nuts and lay the e-brake pedal on the floor; unplug the BOO
3) Remove the intermediate shaft bolt (13mm) from the u-joint, compress the shaft forward to disengage the u-joint, and replace the bolt
4) (Auto trans ONLY) Disconnect the shifter cable eye from the shifter arm, release the catch and slide the cable end out of the steering column bracket near the firewall; remove the shift indicator cable eye from the shifter peg and spin the adjuster wheel until the cable end can be pulled through, then replace the wheel on the cable end; unplug the TCS/TCIL connector & shift interlock solenoid connector (if present)
5) Remove the ignition lock cylinder (key in RUN, press pin thru small hole), tilt lever (unscrew by flats), 3 (or 4) column shroud screws, shrouds, back out ig.sw. connector bolt (8mm or 5/16"), two MFS screws (T15/20) and connectors, sliding contact or clock spring connector (ensure shorting bar makes contact on column side), 4 (or 5) 13mm nuts from the steering column mounts, lower & remove the column
6) Remove 4 15mm bolts from the steering column support to the cowl, 1 8mm (5/16") bolt from the support to the pedal bracket, an 8mm (5/16") bolt from each dash support bar above the tunnel and from the R end, the vacuum line connector behind the ash tray
7) Working through the glovebox opening, disconnect the temperature blend cable from the heater core housing
8 ) Remove 4 7mm/T20 screws across the top of the dash, and with an assistant, remove the dash assembly from the truck
