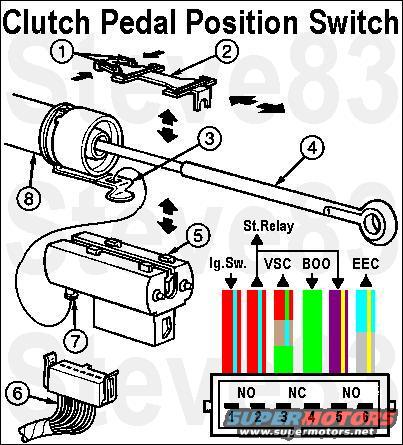

clutchpedalpossw.jpg Clutch Pedal Position Switch '87-96 is installed on the clutch MC pushrod above the gas pedal.

1 - Lock Tabs (part of Retainer Plate)
2 - Retainer Plate
3 - Catch (part of Clutch Master Cylinder)
4 - Pushrod (part of Clutch Master Cylinder)
5 - Clutch Pedal Position (CPP) Switch [url=https://www.amazon.com/dp/B000C5FUW6]Motorcraft SW5993[/url] or [url=https://www.amazon.com/dp/B000C81KQI]Standard NS127[/url]
6 - Connector 261 (part of Harness 14404)
7 - Catch Boss (part of CPP)
8 - Clutch Master Cylinder

Pin - Circuit - Function
1 - 32 R/LB - Ig.Sw. START to CPP
2 - 32 R/LB (or 33 W/Pk) - CPP to THEFT (option '94-95 only), or Starter Relay & 480 Pu/Y
3 - 306 LG or R/LG or T/LB - CPP to Cruise
4 - 511 LG - Brake Lamps & BOO to CPP
5 - 480 Pu/Y (or Gy/Y) - 32 R/LB to CPP
6 - 481 LB/Y or Gy/Y - CPP to EEC pin 30 (START input)
Pin numbers are reversed for '96-up.

LOGIC
Pins 1-2: NO - Ig.Sw. to starter relay interrupt
Pins 3-4: NC - VSC (cruise) ground input (enable)
Pins 5-6: NO - EEC input (idle strategy)

Switch Removal:
1) squeeze lock tabs
2) slide retainer plate rearward
3) depress catch (if present)
4) slide CPP down & rearward off of pushrod

[url=https://www.supermotors.net/registry/media/1159225][img]https://www.supermotors.net/getfile/1159225/thumbnail/cppjumper.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/1040136][img]http://www.supermotors.net/getfile/1040136/thumbnail/52clutch7.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/831772][img]http://www.supermotors.net/getfile/831772/thumbnail/igswlogic.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/285644][img]http://www.supermotors.net/getfile/285644/thumbnail/starterexploded.jpg[/img][/url]

The jumper used with automatic transmissions closes 1&2, 3&4, 5&6.
clutchpedalpossw.jpg | Hits: 8546 | Posted on: 7/5/12 | View original size (52.03 KB)

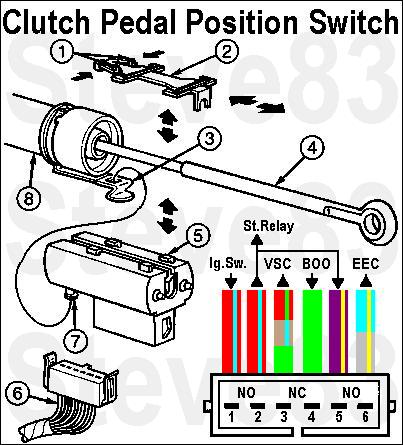

Clutch Pedal Position Switch '87-96 is installed on the clutch MC pushrod above the gas pedal.
