The donor truck

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

63 photos
← Back to this vehicle

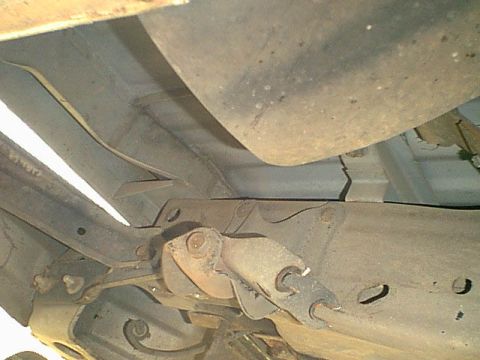

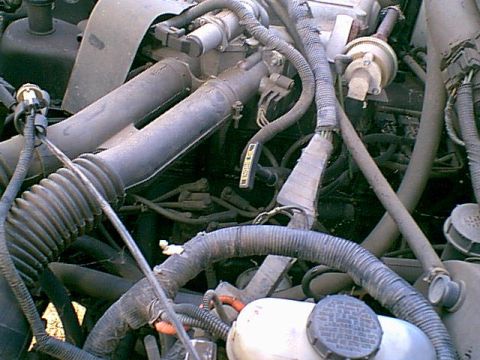

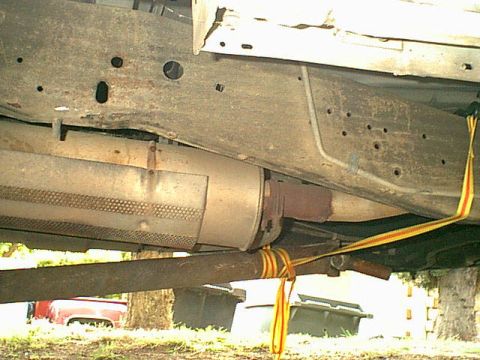

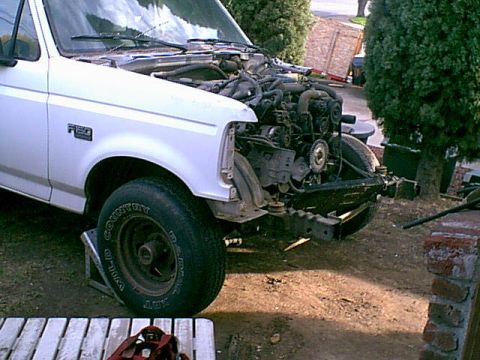

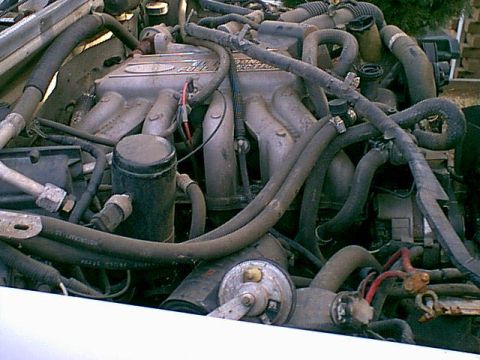

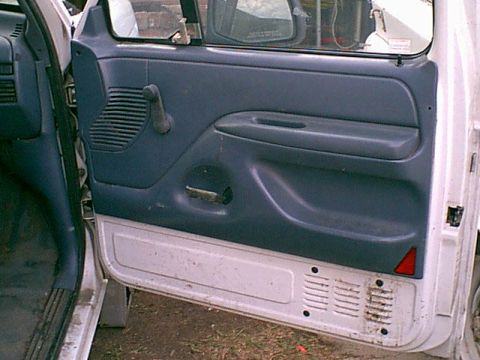

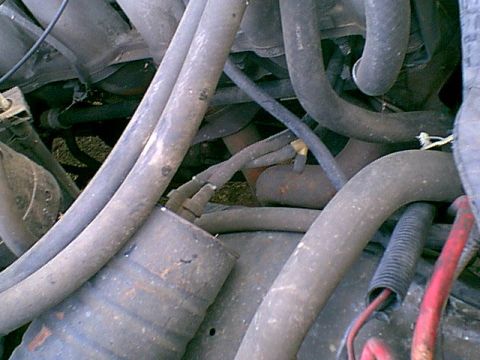

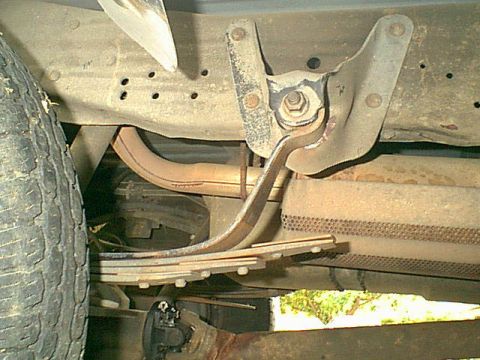

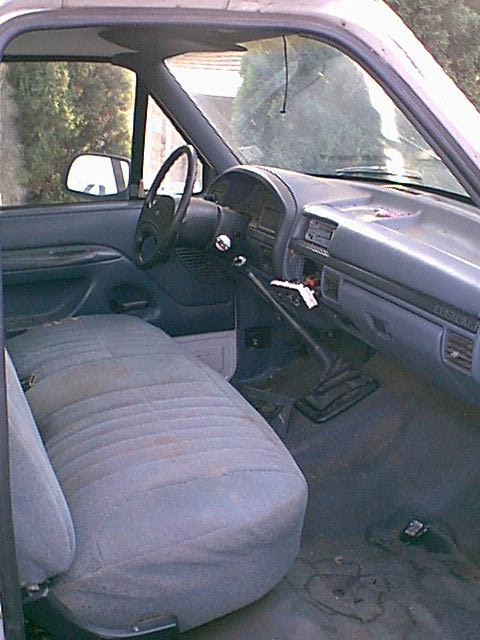

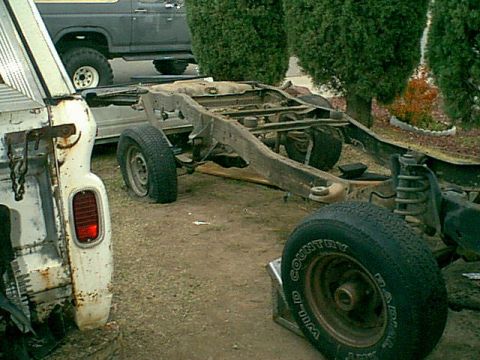

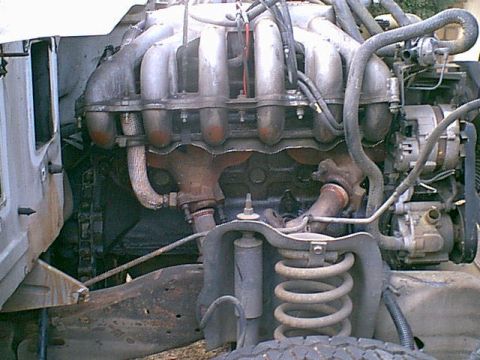

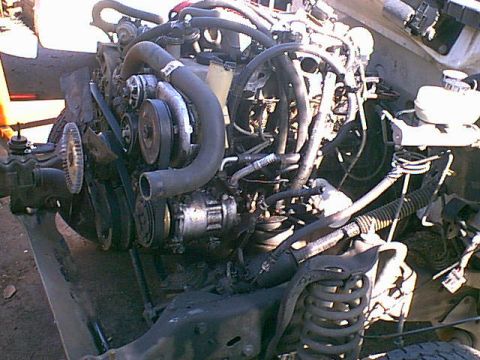

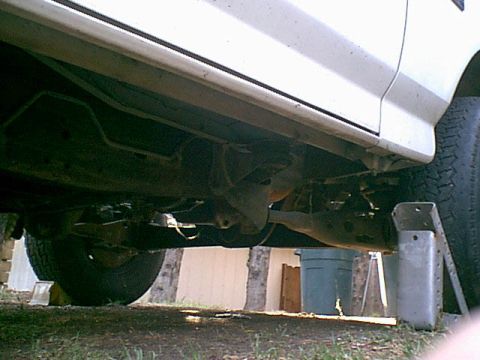

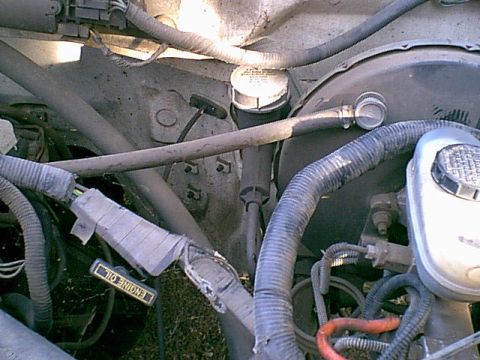

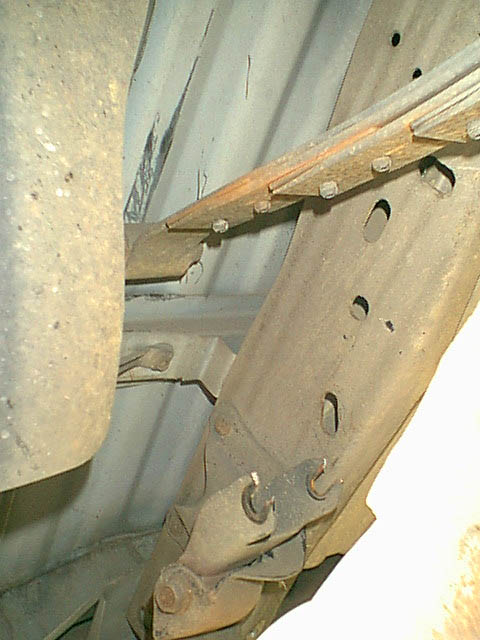

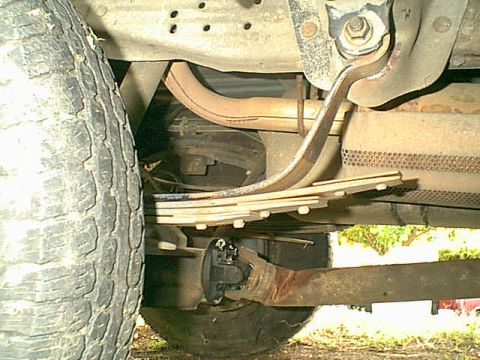

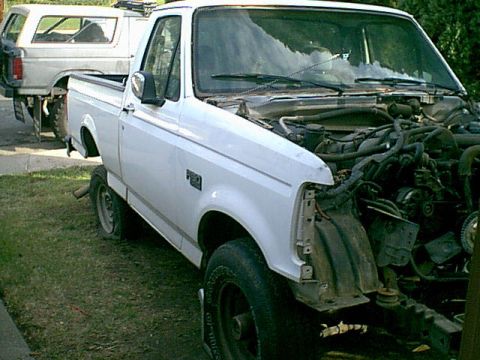

1983 Ford Bronco - here is the donor truck. a 1992 F150 custom truck. theis truck was rear ended and demed a full loss. the next owner needed the front sheet… 1983 Ford Bronco - here is another view of the pass side front. the only front metal left is the pass side fender. 1983 Ford Bronco - here is a view under the front end. 1983 Ford Bronco - here is the drive shaft and mid section of the truck. 1983 Ford Bronco - here is a shot of the inside. not too bad shape. 1983 Ford Bronco - here is the pass side door panel. 1983 Ford Bronco - ok why i got this? well she was hit hard in the rear end. how hard look at the rear leaf spring and the drives shaft. 1983 Ford Bronco - is this what they call rearching the spring? it was fun towing this back home. 1983 Ford Bronco - the hit tore the shackle and bent the leaf spring and this is the back end of the spring. 1983 Ford Bronco - here is another look at the rear shackle. 1983 Ford Bronco - here is a view of the pass side of the motor. you can see the dual exhaust manifolds. 1983 Ford Bronco - here is the top of the pass side motor. 1983 Ford Bronco - here is the drivers side of the motor. 1983 Ford Bronco - here is the hydrolic clutch master cylinder. i not sure if i going to use it but it might go with the tranny when i sell it. 1983 Ford Bronco - Here is the front of the efi motor. i going to redo my 3G swap and start the signaw power steering swap once this is in and running and the… 1983 Ford Bronco - Here is another shot with the front end as i parked it from the tow home 1983 Ford Bronco - here is the main wire harness for the computer. i going to have to sort it out and seperate what i need and what i do not need. 1983 Ford Bronco - here is another view of the wiring mess i going to have to sort thru. top left is the main wireing harness. the lower right is the computer… 1983 Ford Bronco - here is the last shot of the drivers side harness mess. now it is time to start to remove stuff. 1983 Ford Bronco - ok the next cycle is completd. the heaterbox is gone. 1983 Ford Bronco - here the F150 is missing the computer and the main wire harness. 1983 Ford Bronco - now the motor is ready for a fast rinse off. the fender is off too now 1983 Ford Bronco - here is the pass side of the motor before the wash up. 1983 Ford Bronco - here is the driver side before the bath. 1983 Ford Bronco - here it is after the bath. i just wanted to get the loose stuff off. 1983 Ford Bronco - here is the driver side after its bath. 1983 Ford Bronco - here she is out of the truck and on the stand 1983 Ford Bronco - here is the front view still dirty. 1983 Ford Bronco - ok after a good soap and pressure wash she is looking better. i think i am going to do one more cleanup one good soaping. 1983 Ford Bronco - the front of the motor looks better now too. i still think it needs another good soap up too. 1983 Ford Bronco - here is a shot of the truck without the motor. 1983 Ford Bronco - here is a head on view with the motor out. 1983 Ford Bronco - here is the tranny out. 1983 Ford Bronco - here is the drivers side after a fast wash. 1983 Ford Bronco - here is the pass side of the tranny. 1983 Ford Bronco - well this was at noon. we had the cab and most of the truck stripped down. here is my oldest son removing the bed bolts. 1983 Ford Bronco - Well after some grinding and cussing the bed gave up and came off. into the paper it goes. 1983 Ford Bronco - Here is another view of the bed. very little damage to the pass side rear end. 1983 Ford Bronco - Here is the cab off the frame waiting to be installed in a rock crawler project. 1983 Ford Bronco - well at the end of our day here is the front end. 1983 Ford Bronco - here is the frame stripped shot 1983 Ford Bronco - here is view of the rear end. you can see whaere the spring hanger tore and the spring and tire gave way. 1983 Ford Bronco - here is a close up of the rear end with nothing else on it. 1983 Ford Bronco - so at the end of the day we have an almost rolling frame and these parts (most going to the paper after the bronco is drivable. 1983 Ford Bronco - there is a ton of wiring for a stock 1/2 ton truck....lol i got to sort thru and get all that is needed for the efi swap. 1983 Ford Bronco - ok the rear fuel tank is out now. Time to make the frame disapear 1983 Ford Bronco - here is the F150 rear tank. too small for the bronco but will work as a temp tank if needed. 1983 Ford Bronco - now the rear part is chopped and the axle is now free from the frame. 1983 Ford Bronco - now the frame is chopped the the rear truck cab mount.This is going with the cab for a rock crawler. 1983 Ford Bronco - almost down to the front end. 1983 Ford Bronco - here is the front rear spring hangers i remove the rivets and sell for a shackle flip. 1983 Ford Bronco - here is the 8.8 rear end. going to be parted out. it got 2.73 gears and open carrier. 1983 Ford Bronco - here s the front end ready to part down. 1983 Ford Bronco - here is the pile going to scrap 1983 Ford Bronco - scrap pile getting bigger. 1983 Ford Bronco - i love the plasma cutter. here is the pile at the end of the night. 1983 Ford Bronco - here is the cab off the frame and stripped down. 1983 Ford Bronco - another view of just the cab 1983 Ford Bronco - last picture of the cab. 1983 Ford Bronco - here is the last pile of scrap 1983 Ford Bronco - another view 1983 Ford Bronco - the last view of the cab and the other parts. 1983 Ford Bronco - here is the side or saddle tank. it is not needed and i sold it to get other things i needed.
