1960 Chevy Pickup

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

10 photos
← Back to this vehicle

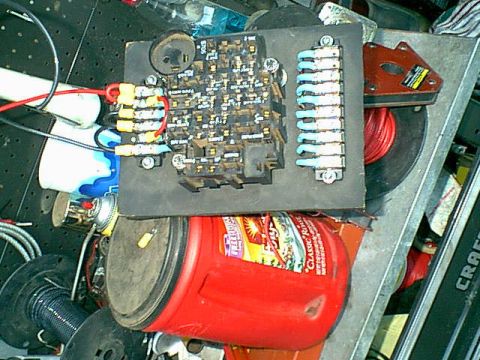

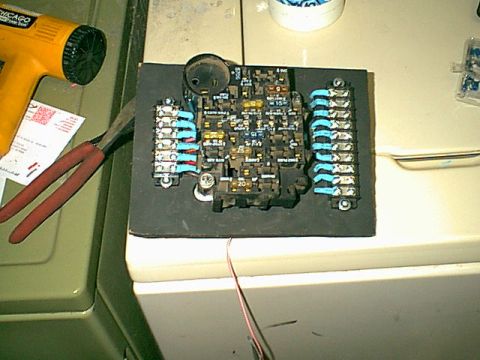

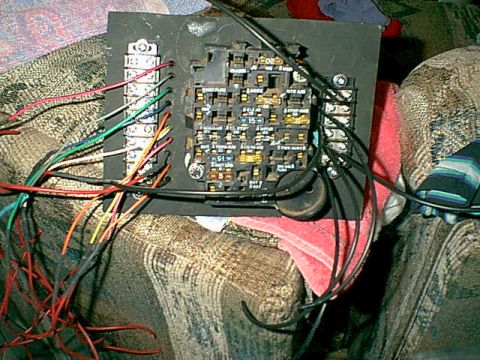

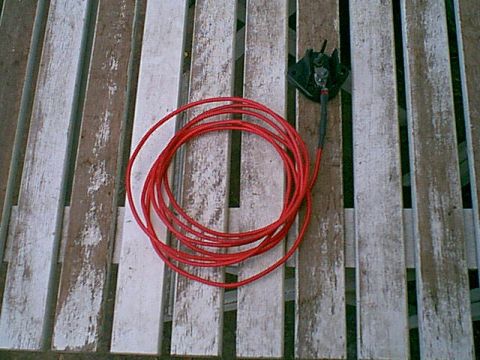

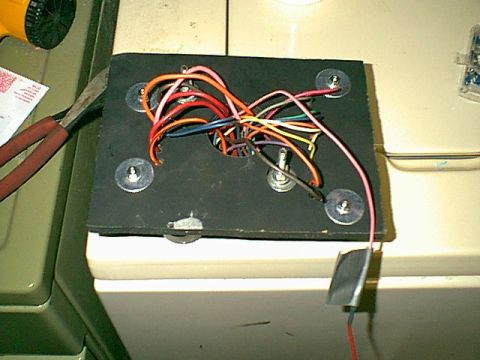

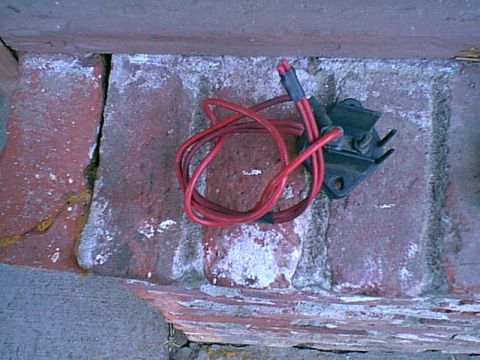

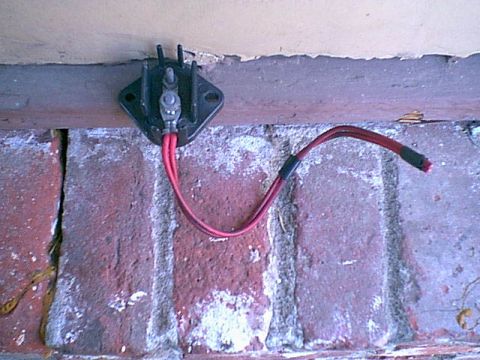

1983 Ford Bronco - This is the new fuse panel i am making. It was out of a 1985 silverado truck. 1983 Ford Bronco - This is the new fuse panel mount. I made it out of MDF and painted it black. 1983 Ford Bronco - here is the panel with the new term strips in place. 1983 Ford Bronco - here it is done. i needed one more term connection but it was for the elect choke so i just use a bulet connector. 1983 Ford Bronco - another front view 1983 Ford Bronco - here is the back side-not too bad 1983 Ford Bronco - Here is the next step in the swap.i made two power connections at the top. one is battery power (always hot) and the black is acc hot.. i t… 1983 Ford Bronco - To make wiring more easy i got a single point power take off. this was off a Blazer. 1983 Ford Bronco - here is another view. 1983 Ford Bronco - i trimed the 2 16 guage wires and soldered in a new 10 guage wire that will goto the battery. all other aux power will be pulled from here.
