1992 GMS Safari

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

23 photos
← Back to this vehicle

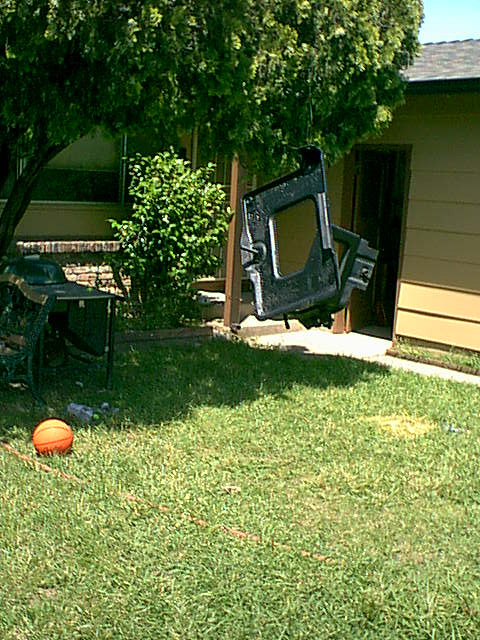

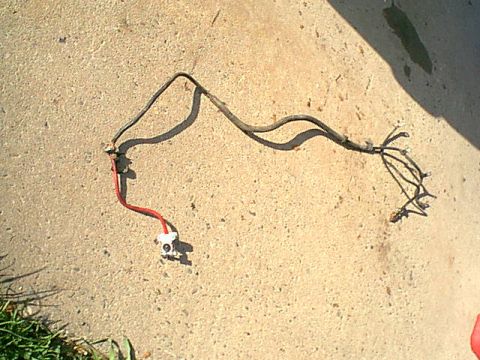

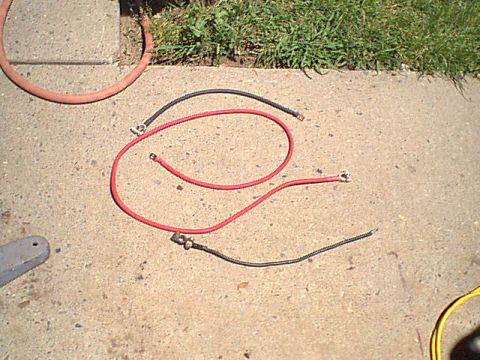

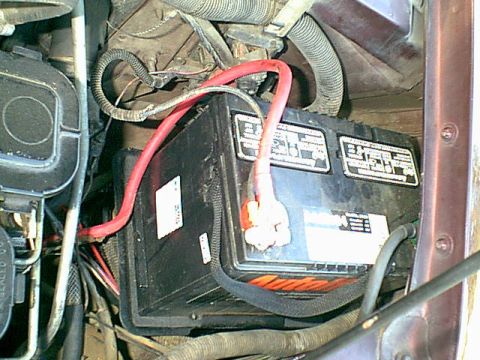

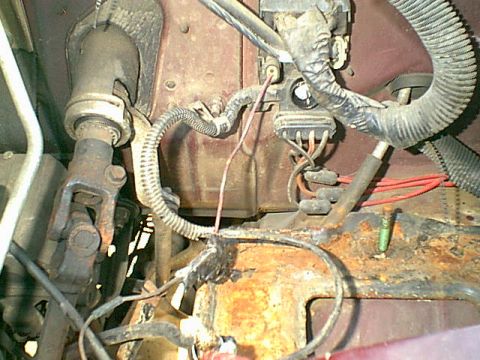

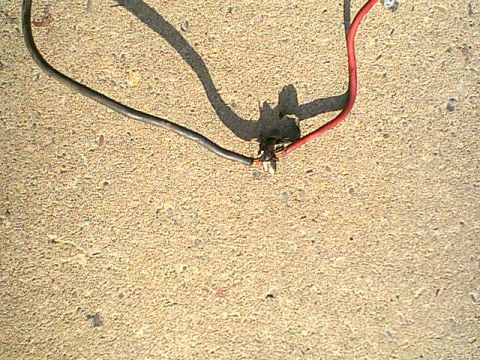

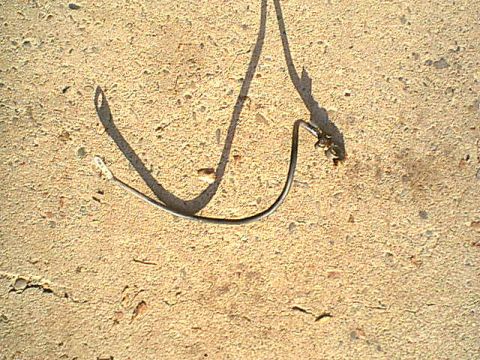

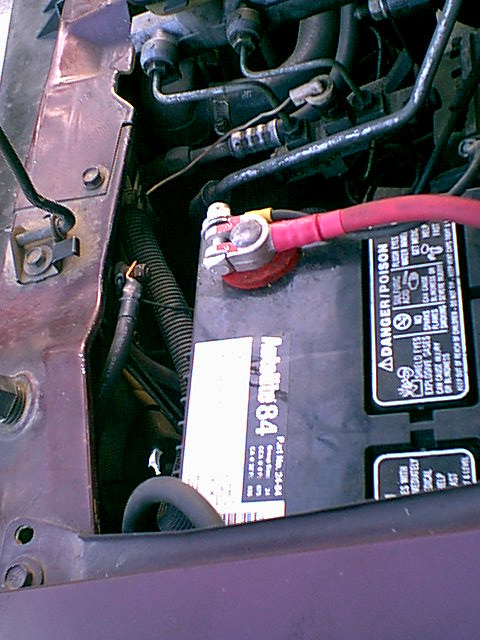

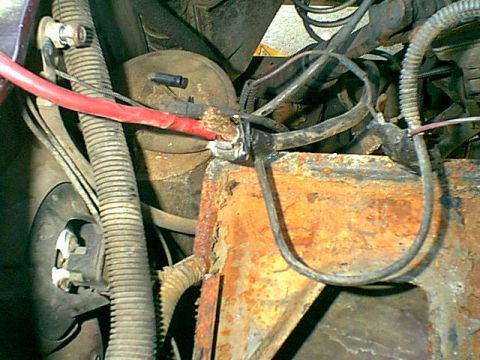

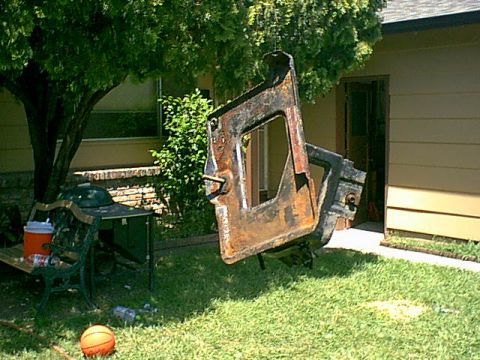

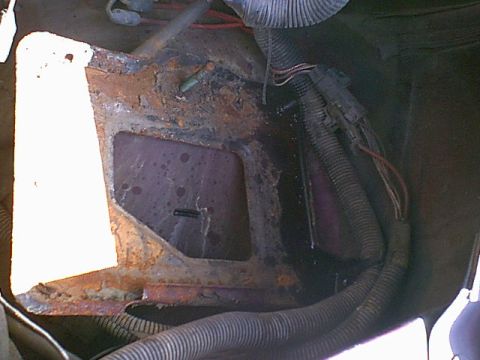

1983 Ford Bronco - We had a couple times the van did not want to start and the charging system seemed low. i found the battery cables needed to be replaced. a… 1983 Ford Bronco - this is where the Aux power line goes to and i decided to pull the tray and clean it. then paint it. 1983 Ford Bronco - this is another pic of the battery tray in the van. it is all surface at this time. 1983 Ford Bronco - here it is out of the van----that was a pain-someone ran the e-brake cable thu the mount so i had to disassemble the whole e-brake system a… 1983 Ford Bronco - 2 coats primer and a couple coats of flat black it looks new again. 1983 Ford Bronco - here is the old pos bandaided cable 6' long. 1983 Ford Bronco - here is another shot of the bandaid---the AUX wire is not showing but i replaced it too. 1983 Ford Bronco - While i was there i got a new Neg cable too.This is the old one. 1983 Ford Bronco - Here is the new cables along with the old neg. i had a set made out of 2 guage welding wire. these will not fail 1983 Ford Bronco - this is the new cables in and the new AUX power take off. Much better 1983 Ford Bronco - the neg is 2 pieces i replaced the 1st leg as the rest looked ok for now. it goes from the battery to a ground lug on the body. The system… 1983 Ford Bronco - The windows went up and down real slow and not at all sometimes. i found a couple versions on ebay i went for the lifetime warrenty brand $… 1983 Ford Bronco - here is the side shot 1983 Ford Bronco - the other side. i was able to swap these out in 15 each side. 4 rivets hold the old in and i greased the tracks and installed the new motor… 1983 Ford Bronco - Here is a 3.8 tarus 2 speed fan. $19 at the local junk yard. these have a high and low speed and really put out the air. 1983 Ford Bronco - here is the back side of the fan. it came complete as seen in the picture. 1983 Ford Bronco - Hereis a continus duty relay. it can handle 80 amps all the time. the fan spikes @ 100 amps at startup and runs @ 26 amps. so standard plas… 1983 Ford Bronco - I wanted to get some of the wires off the battery. so i picked up a single point power take off. This was off a S-15 pickup but i seen them… 1983 Ford Bronco - on the inside i needed to get an ignition on power source. so i taped one of the acc on ports in the fuse panel. you can see the new wires… 1983 Ford Bronco - Here is the fan temp power controler. I got it new from Autozone $24. the ignition on wire goes to this then then from this to the relay. T… 1983 Ford Bronco - here is another rear window latch. they do not last too long. 1983 Ford Bronco - while replacing the radaitor i installed a new NAPA water pump. 1983 Ford Bronco - here is the other side of the box.
