3" Body Lift

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

40 photos
← Back to this vehicle

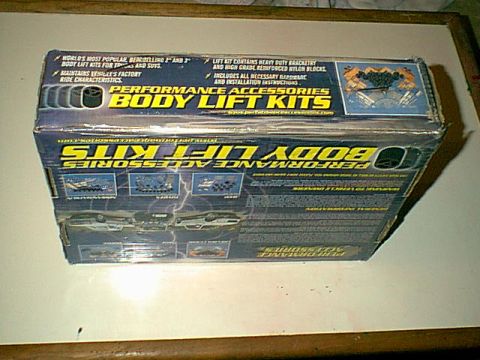

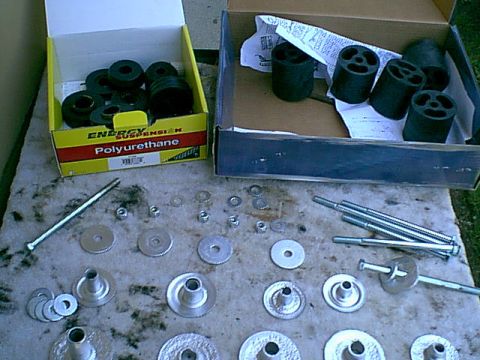

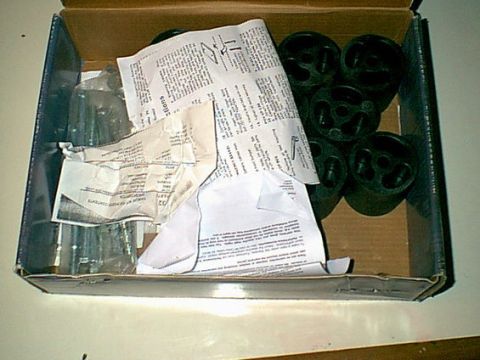

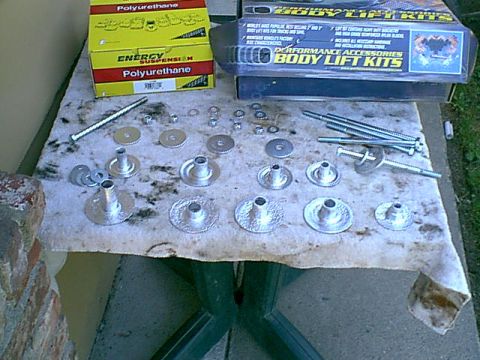

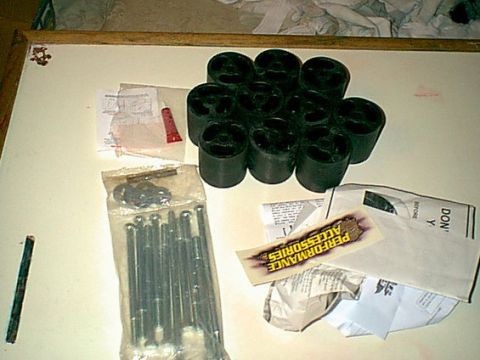

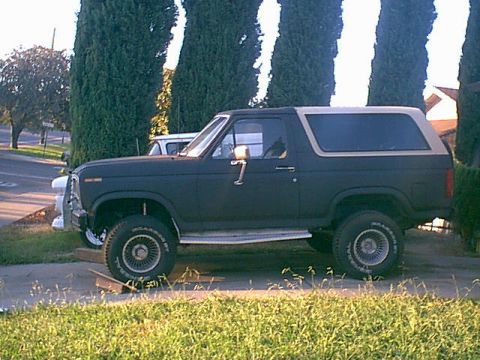

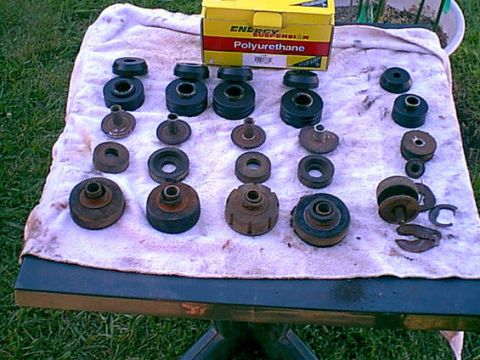

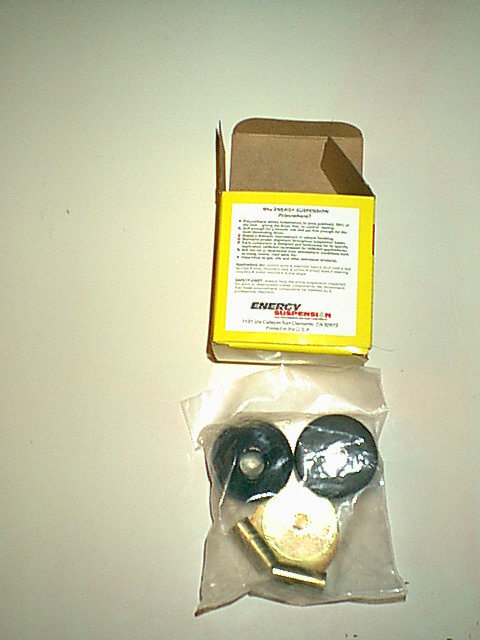

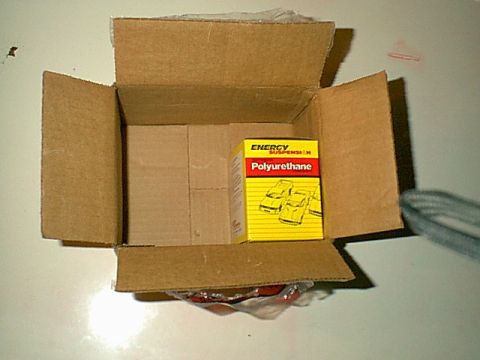

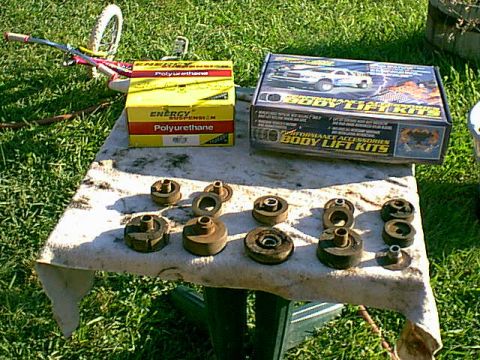

1983 Ford Bronco - Her she is before the 3" body Lift. These are 33" tires. 1983 Ford Bronco - when i ordered the poly body mounts i got the front core support not all the bushings i needed, but if you only need the core support bushi… 1983 Ford Bronco - Here is the PA lift as i got it from 4wheelcustoms. thanks again Chris. 1983 Ford Bronco - This is both front core support poly bushings and washers and sleaves. it was $26 not bad. too bad i needed all the mounts. a fast phone ca… 1983 Ford Bronco - This is a look in the box of the PA-3" body lift 1983 Ford Bronco - Here are the 3" body lift parts out of the box. 1983 Ford Bronco - I hit all the body mount bolts with PB Blaster for 2 week prior to installing the lift. the bolts came out easy the mount shells were the h… 1983 Ford Bronco - Here are the old and new Body mounts. the old rubber were soft and worn down. 1983 Ford Bronco - Here are the old body mount shells. i cleaned and painted them to stop the rusting.. the poly mounts are in the back as is the 3" body lift. 1983 Ford Bronco - I tossed the rubber bushings and cleaned and painted the shels. not seen i cut the nut off the bottom shell. This made the new install much… 1983 Ford Bronco - Here is all the hardware. ready to reinstall. 1983 Ford Bronco - Here is the drivers side before the lift was installed. 1983 Ford Bronco - This is the stock front Body mount before the 3" body lift and poly mount gets installed. 1983 Ford Bronco - After all the bolts were out and the shells split apart. I started to jack the body up. (Look for wires, connectors and other things that m… 1983 Ford Bronco - Here is the front blocked up. the raditor support mount is different than all the other mounts. it bolt together. I cut the bolt head off a… 1983 Ford Bronco - here is how they go together. when doing the lift this way i did not lock tite the bolts till the other half of the lift was installed. The… 1983 Ford Bronco - you can see the whole space is 4 1/2" space after the poly body mounts and body lift kit. 1983 Ford Bronco - Here is alook from a few feet back. body mount and lift installed. Oh yea my two sons that are part of the crew.. 1983 Ford Bronco - Here is a shot with the driverside front. remember to replace all shims in the correct location. there are 5 mount each side. 1983 Ford Bronco - I planed this to goe over 2 days. saturday for the drivers side and sunday for the pass side. i wanted alot of time since i never seen one… 1983 Ford Bronco - here is a look from the front with only the driver side completed. 1983 Ford Bronco - Here is the rear end with the driverside done (my new to me 35" thornturds in the back). 1983 Ford Bronco - just looks strange with 1/2 way done. 1983 Ford Bronco - the same steps were taken on the pass side.and here is a side shot with it completly locktited and tighened down. I think it turned out gre… 1983 Ford Bronco - Here is a shot from the rear with both sides done. 1983 Ford Bronco - Here is the front all completed. 1983 Ford Bronco - Here Jezebel is out on the street after the new 3" body lift. 1983 Ford Bronco - This was taken a short time later. (the bumpers were not done at the body lift time) this is out on the street. 1983 Ford Bronco - Here is the front after the body lift. 1983 Ford Bronco - Here is the heigth after the body mount and 3" lift kit were installed. 1983 Ford Bronco - Here is a view from the drivers side rear corner. 1983 Ford Bronco - here is a second look at the back corner 1983 Ford Bronco - I wanted to cover the gap left but the lift so i used a stock ford truckbed liner (free from Matt) 1983 Ford Bronco - This was a standard bed bed liner. here is the bottom. 1983 Ford Bronco - I sliced out the bottom. 1983 Ford Bronco - the floo is out now. 1983 Ford Bronco - I used a dramil and sliced the bed up. 1983 Ford Bronco - Here is the floor. I decided to make a liner for the bronco.. 1983 Ford Bronco - Here is the rear bed liner with the rear seat flipped up. 1983 Ford Bronco - The floor portion i used as a bed liner in the back of the bronco. Istopped the rear seat from bouncing.
