NP 208

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

19 photos
← Back to this vehicle

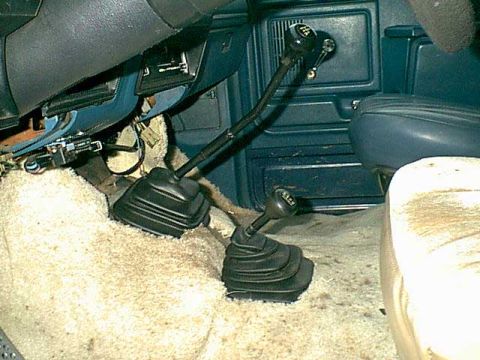

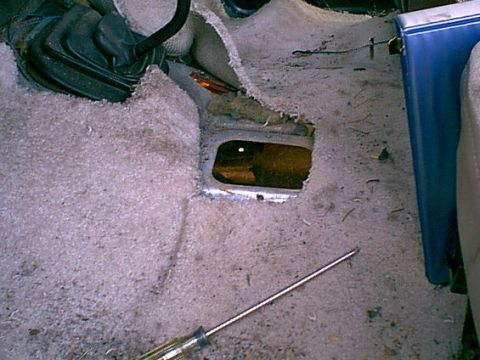

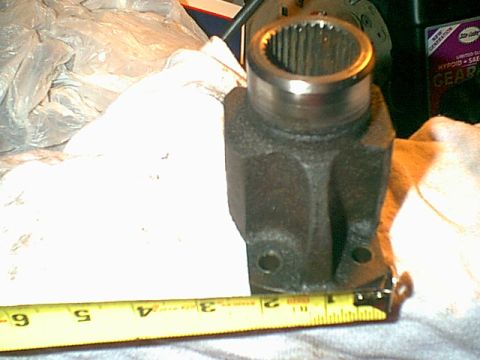

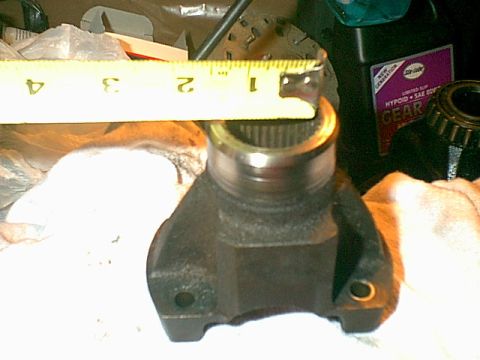

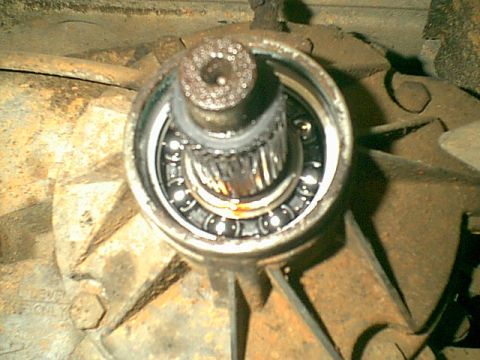

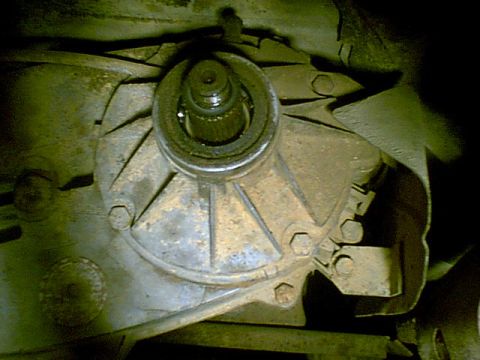

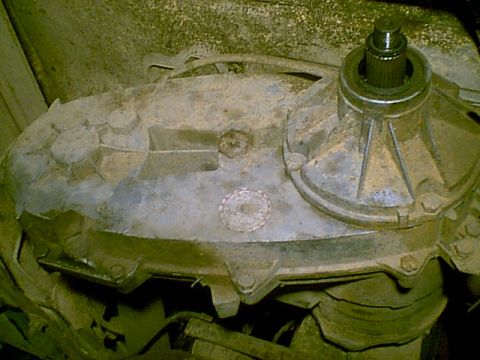

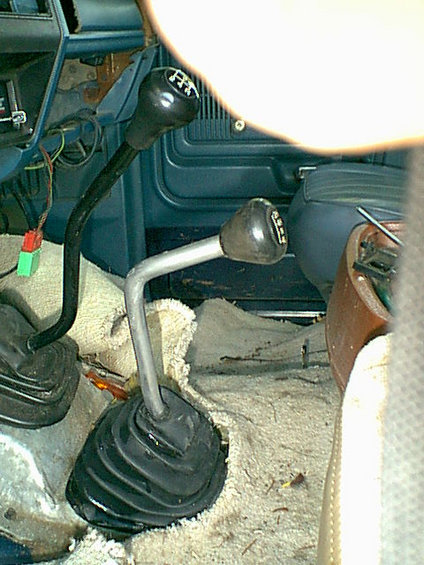

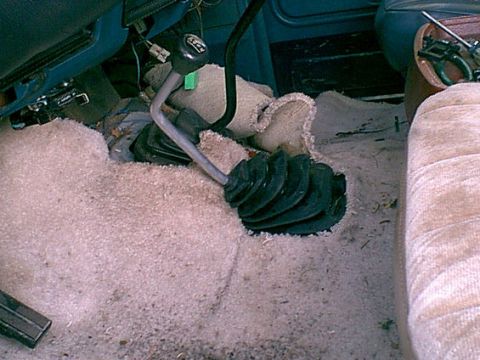

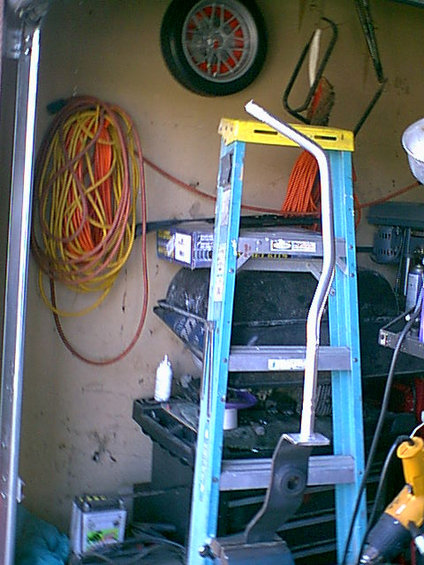

1983 Ford Bronco - After the body lift i eather had to cut the floor of redisign the shifter. i did not like the location so i moved the shifter some. 1983 Ford Bronco - This was round 1 with the shifter. I cut and added a 3" spacer. 1983 Ford Bronco - a coat of paint and it was looking good. 1983 Ford Bronco - Here it is all installed and working fine. 1983 Ford Bronco - Here is another shot. i was proud of the way it turned out. 1983 Ford Bronco - Well i was showing a friend how good a job i did and i grabbed the transfere case shifter and off it came. i then decided time to sleave an… 1983 Ford Bronco - I got a new stronger rear drive shaft and this new shaft required a flang to install it not the yoke. so here is the stock yoke i removed f… 1983 Ford Bronco - here is the side view of the yoke. 1983 Ford Bronco - here is the side view. i wanted to get the size so i could get the correct u joints. 1983 Ford Bronco - Here is the output shaft size. 1983 Ford Bronco - The cv joint gets bolted to this to the transferecase. 1983 Ford Bronco - this is the rear output shaft. i got a new seal and replaced it at this time. 1983 Ford Bronco - here is a different view of the case. man is it dirty. 1983 Ford Bronco - Here is the new flang ready to get installed. 1983 Ford Bronco - Here is the output shaft for the NP208. it is 32 spline shaft. this was just after i removed the yoke and the old seal. 1983 Ford Bronco - They redesigned the seal. here is the old (left) and the new seal (right) 1983 Ford Bronco - Here is the new seal at its new home. 1983 Ford Bronco - here is the new flang in its new location. this was an easy swap. 1983 Ford Bronco - Here is the flang all tourqued down and ready for the new drive shaft.
