Brakes

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

17 photos
← Back to this vehicle

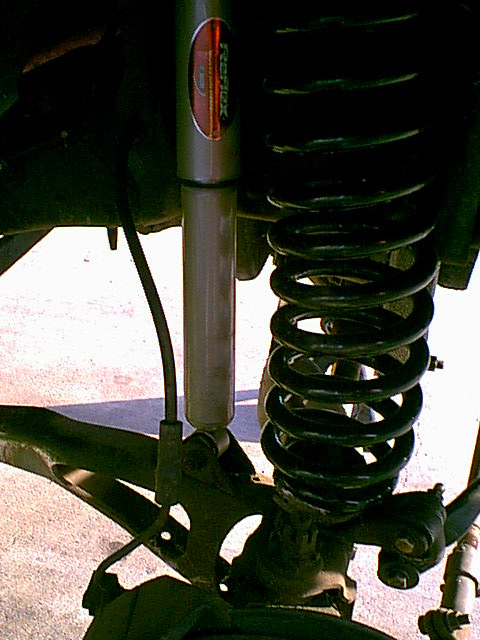

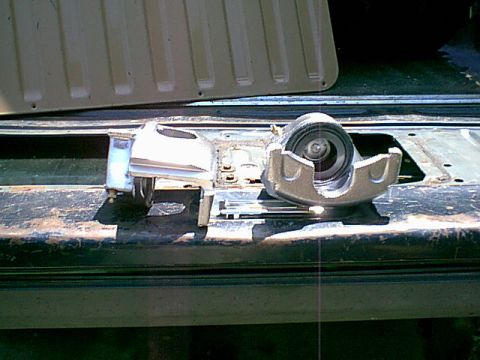

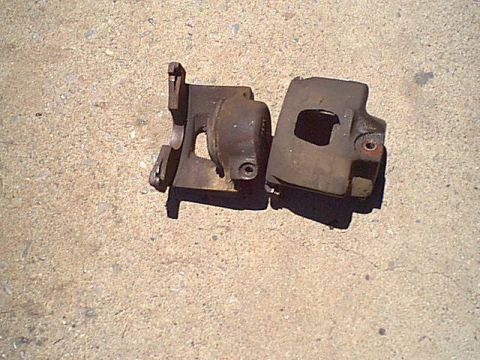

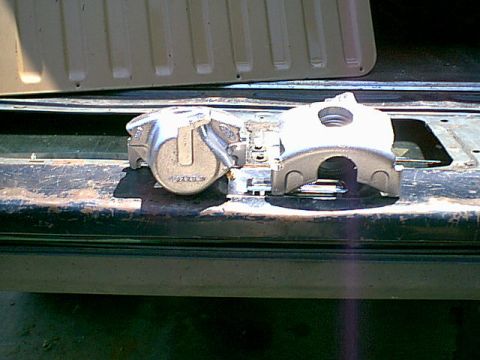

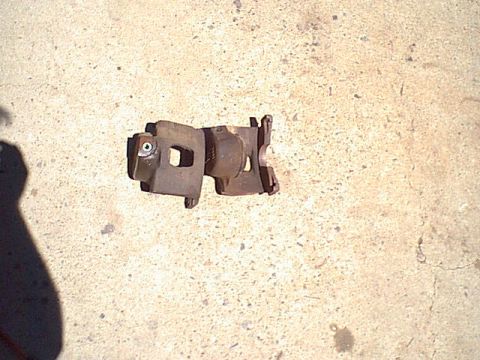

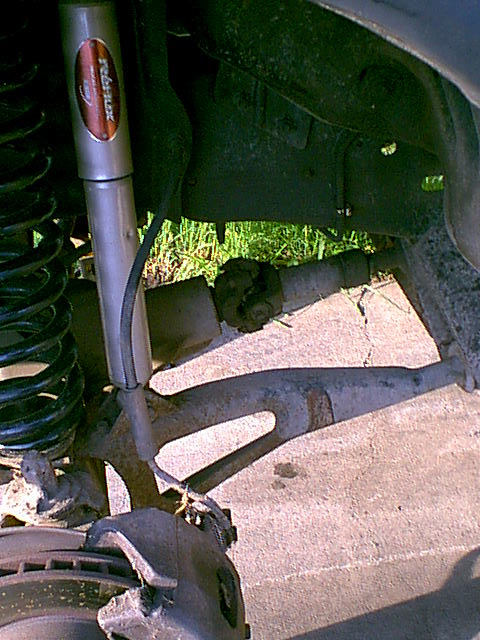

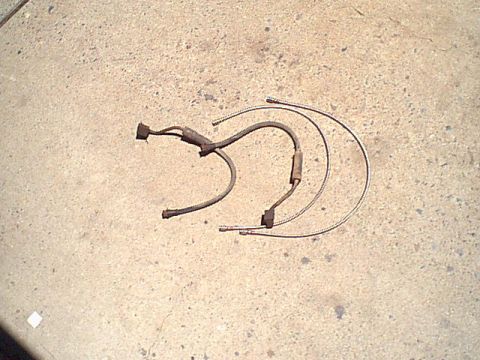

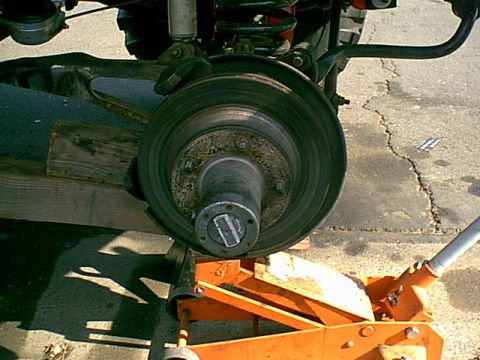

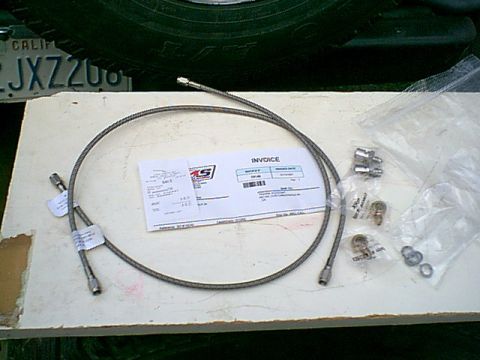

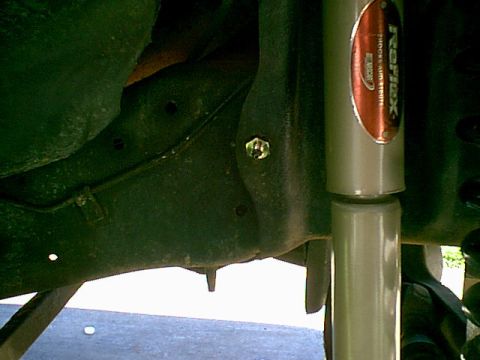

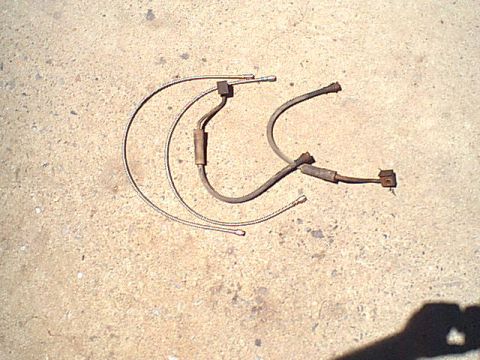

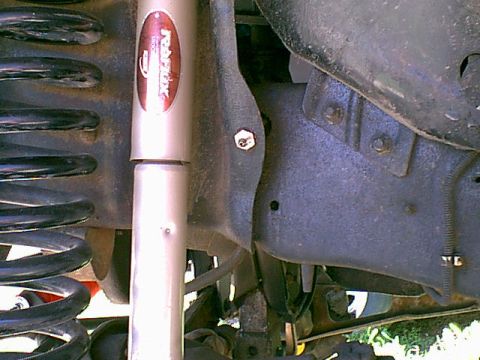

1983 Ford Bronco - Here was the pass side rotor as i got t. time to get a new one. 1983 Ford Bronco - Well as i was working on the bronco i found the front brakes were in bad shape. Here is the pass side as i got it. 1983 Ford Bronco - Here is the original drivers side setup. 1983 Ford Bronco - Here are the old calipers. i was going to rebuild them but they are $26 each remanufatured. So off they go. 1983 Ford Bronco - Here is another view of the old calipers. 1983 Ford Bronco - Here are the new calipers. I hit them with some paint i had in the shop. they were bare metal. 1983 Ford Bronco - Here is another view of the new painted calipers. 1983 Ford Bronco - Well i wanted to get extended lines and all the prepacked kits were $100 and up. i visited Teegarden Motorsports Specialties here in sacram… 1983 Ford Bronco - Here are the old brake lines and the new brake lines. Nice braided steel over teflon line. 1983 Ford Bronco - Here is another view of the old and new lines. 1983 Ford Bronco - To get the new lines to work with the bronco i needed to install AN adapters. on the drivers side frame i removed the rubber flex line from… 1983 Ford Bronco - I repeated this process on the Pass side of the bronco. 1983 Ford Bronco - Here is pass side almost ready to be reinstalled. I found these "S" hooks at the local swap meet. nice to not have calipre just hang by the… 1983 Ford Bronco - I put the caliper back on and installed the line 1983 Ford Bronco - Here is another view of the new line and caliper. 1983 Ford Bronco - the drivers side is now completed. The rotor looks good and will not need to be replaced at this time. 1983 Ford Bronco - Here is the pass side done. i needed to roll the truck around so the bad caliper will still stay on for right now. I am not driving the bro…
