Album section

Springs

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

17 photos
← Back to this vehicle

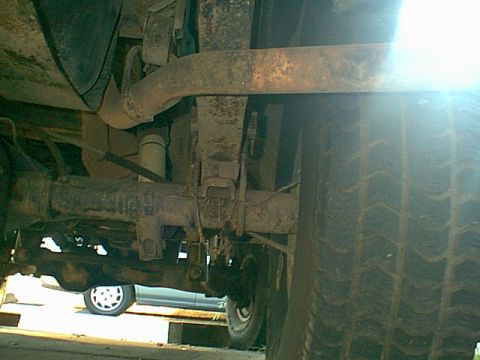

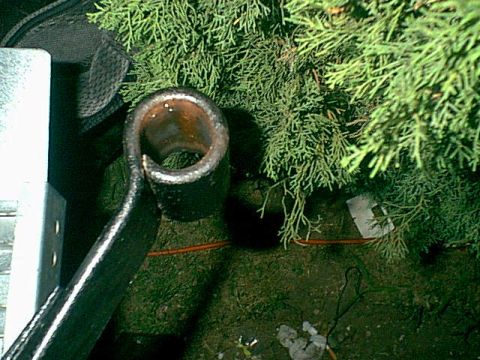

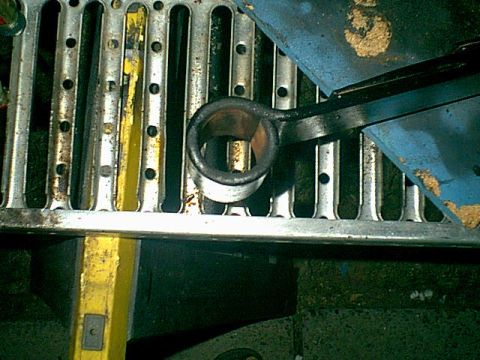

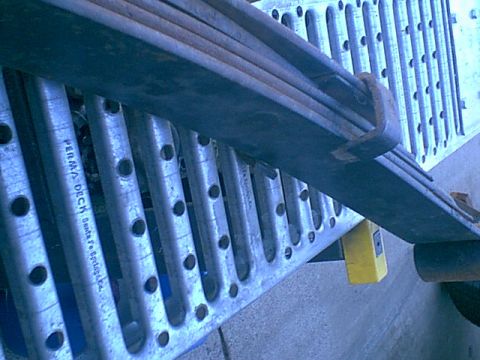

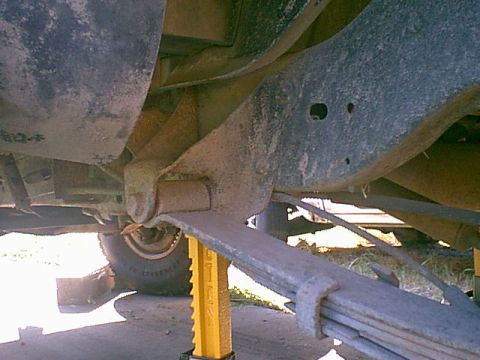

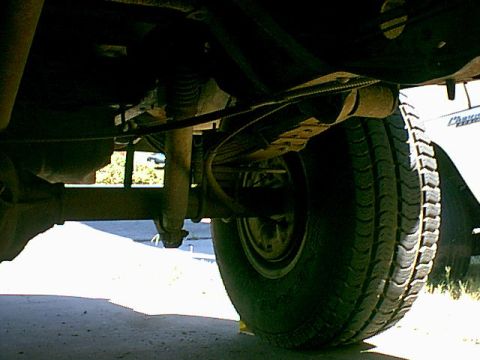

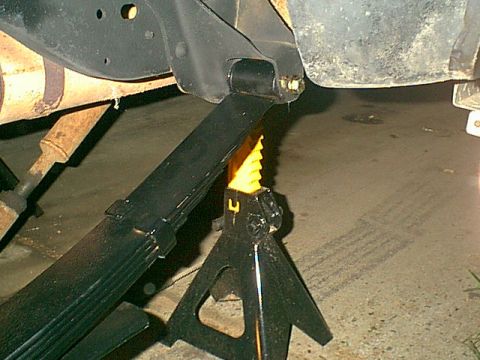

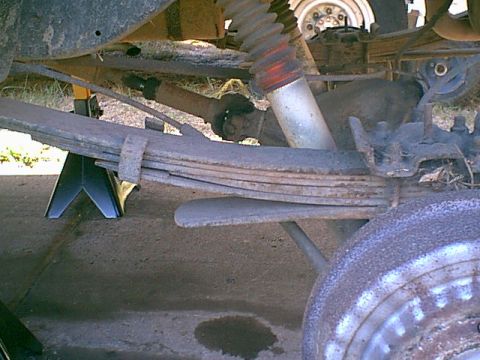

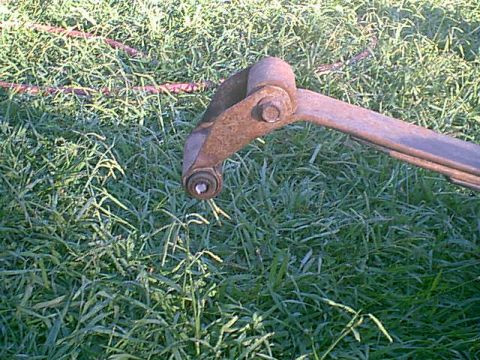

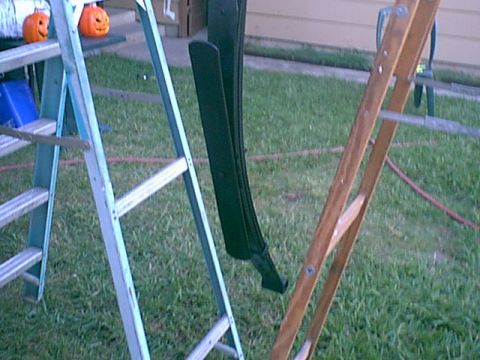

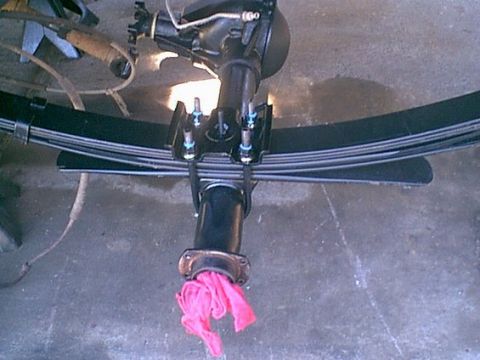

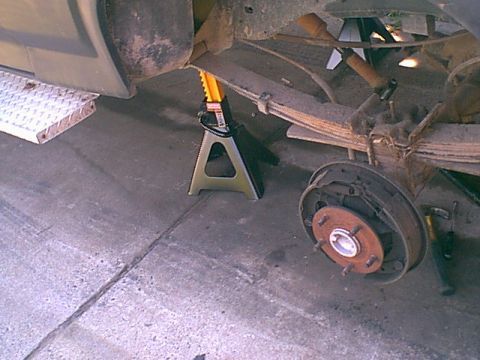

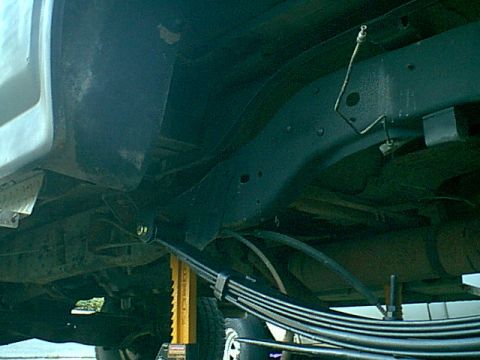

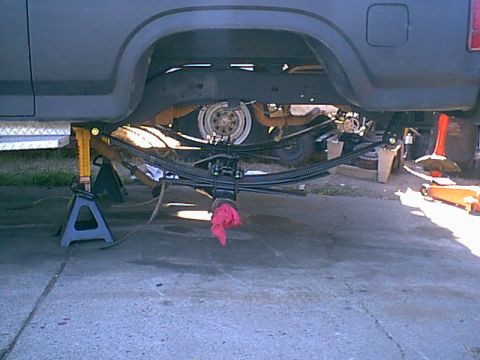

1983 Ford Bronco - here is the drivers side rear as we started. 1983 Ford Bronco - Here is the way the rear springs looked before i did anything. you can see the spring clamp is coming apart and the rubber bushing is trash… 1983 Ford Bronco - here is the other side. same issues 1983 Ford Bronco - you can see the spring clamp is pulling apart. here are the springs before i rebuilt them. 1983 Ford Bronco - Here is the stock spring and shim block on the pass side. 1983 Ford Bronco - i had to cut the bolt head off to get the shackle and spirng off the trick. this is a common issue. 1983 Ford Bronco - i tried a few different ways to remove the rubber bushing i tried drilling, pressing them out i found a tourch works great. start burning t… 1983 Ford Bronco - Here is the other end. same steps. 1983 Ford Bronco - I hammered the clamp back to its correct shape. 1983 Ford Bronco - these were a 4" superlift spring so i just cleaned and painted them. 1983 Ford Bronco - here she is going back together. 1983 Ford Bronco - here is the pass side all done. 1983 Ford Bronco - Here is the rear end all bolted back in place. 1983 Ford Bronco - here is the springs and shackle flip installed. 1983 Ford Bronco - Please do not do this---a long day of the stupids hit me. i wanted to see what full droop looked likethis was still on the ground but the j… 1983 Ford Bronco - Here is a shot from the rear with the springs back in place. 1983 Ford Bronco - full droop happens at 5'3" (Measured at the bed lip) not bad.
