misc mods/pics

From 1994 Ford Bronco “Plug Ugly” — documented by Damon Haas.

10 photos
← Back to this vehicle

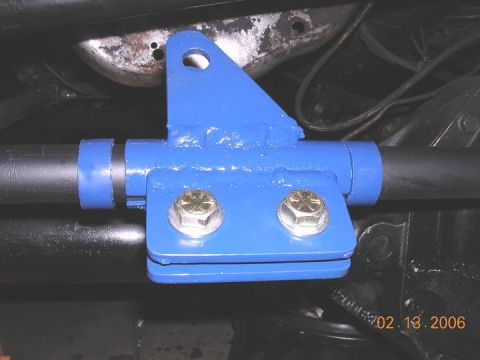

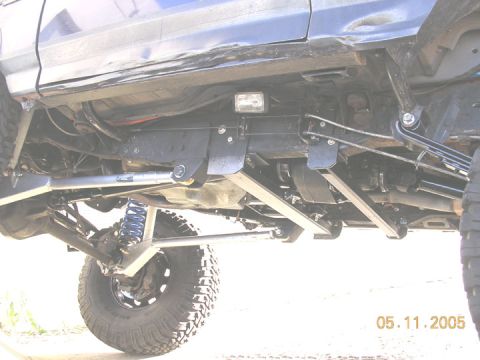

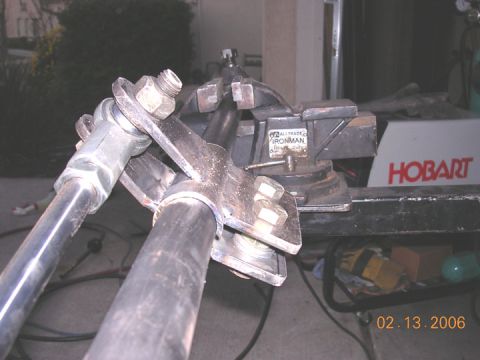

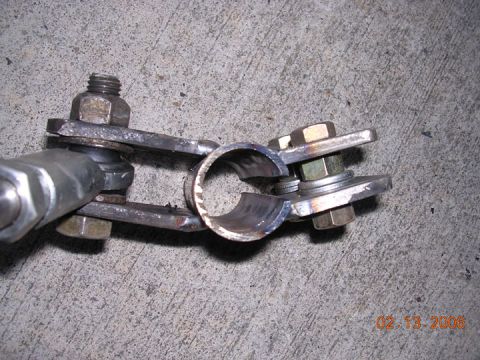

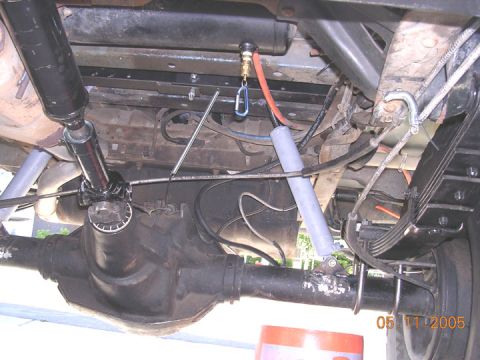

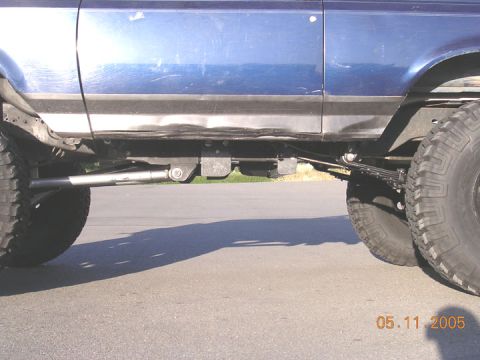

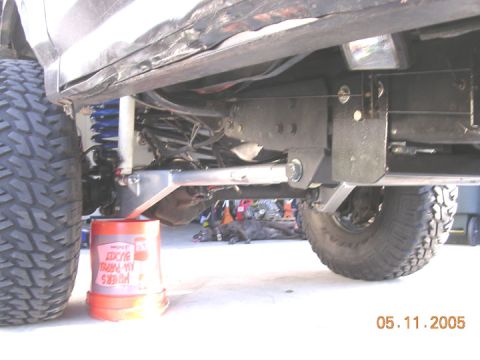

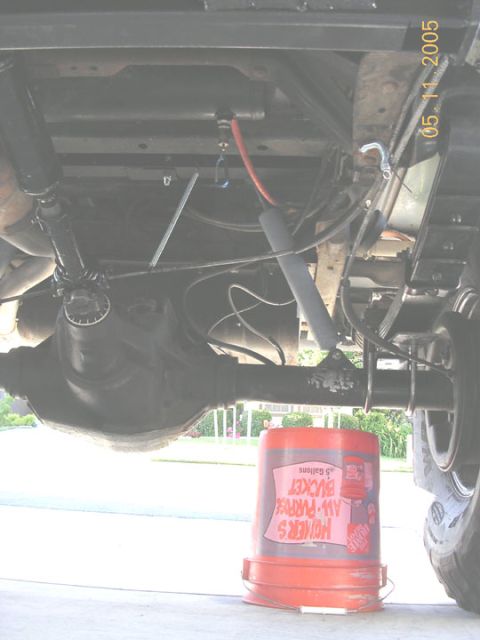

1994 Ford Bronco - I guess I forgot how much clearnace the 40's give. Thats a standard 5 gallon bucket with room to spare of approx. 2 inches. 1994 Ford Bronco - moved the shocks up to ontop of the axle tubes. Required shorter shocks than I had before, but seems to leave plenty of travel. 1994 Ford Bronco - I cut some ears out of 1/4 flat to weld to the top. These are 12 inch travel ranchos, set for 3.5 of up travel at 63 degrees. I can move th… 1994 Ford Bronco - just a shot of the new undercarriage and cross members before the rear torque arm and skid plates go in. Some new sliders are also in the w… 1994 Ford Bronco - I have about 23 inches at the radius arm mounts, and 23.5 at the cross member mounts. There is 24 inches at the crossmembers themselves. It… 1994 Ford Bronco - strapped the gas tank ala keith 1994 Ford Bronco - the plan is to build a better skid should I need one after the wheelbase stretch 1994 Ford Bronco - Metal fabrication project held in a vise, with a Hobart welder visible in the background. 1994 Ford Bronco - A close-up view of a fabricated metal bracket assembly, bolts and nuts, on a concrete background. 1994 Ford Bronco - Close-up view of a blue aftermarket suspension component mounted to a vehicle's chassis.
