Fabricated link bracket with heim joints clamped in a bench vise…
misc mods/picsView all 10

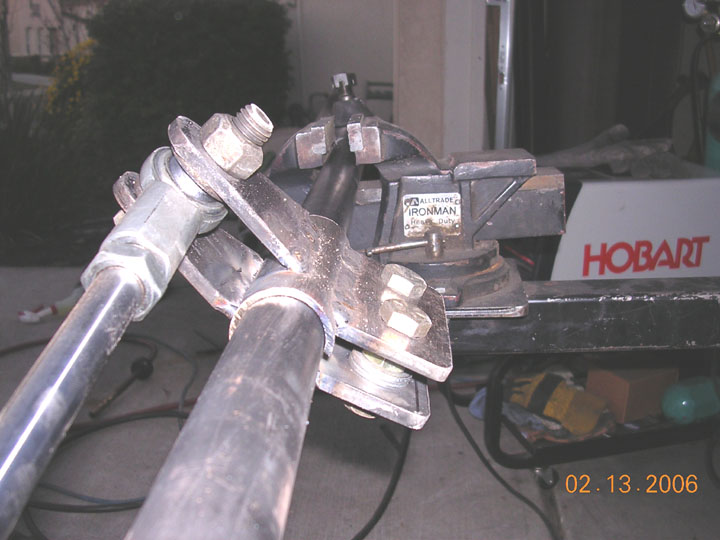

Shop mockup of a fabricated steel bracket clamped in an Alltrade Ironman bench vise, holding two tubular links with rod-end/heim joints and yellow-zinc bolts through double-shear tabs. A Hobart welder sits on the bench behind the setup; frame stamped 02 13 2006.
' 02 W3 2006
