Knuckle Under the tie rod

From 1989 Ford Bronco “Street Truck” — documented by Tim Crase.

25 photos

← Back to this vehicle

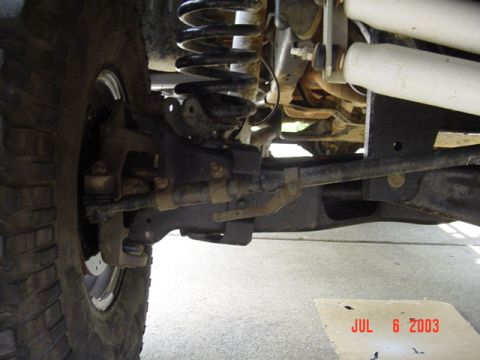

1989 Ford Bronco - Today we move the tie rod to above the knuckle.

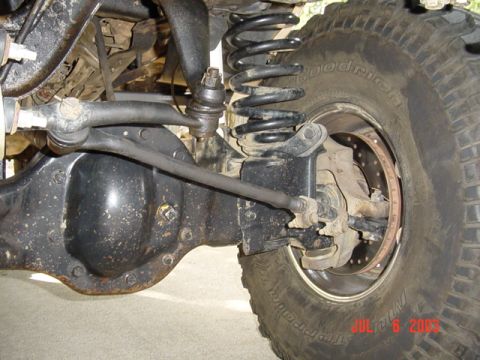

1989 Ford Bronco - See the real steep angle on the drivers side with the 6" lift

1989 Ford Bronco - Pretty dark pic, but it is up on the stands and ready to go

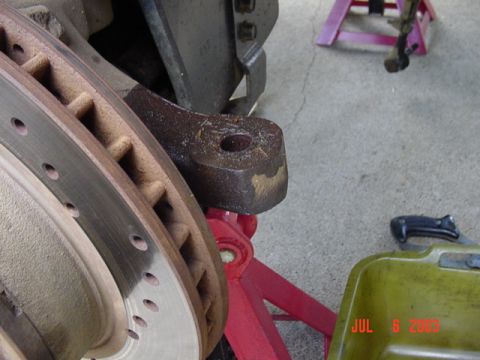

1989 Ford Bronco - Top of the hole before we mess with it.

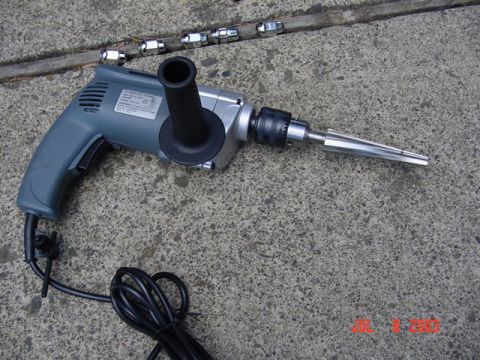

1989 Ford Bronco - Drill setup with the tapered reamer

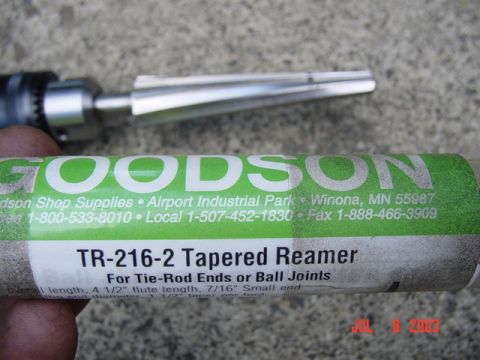

1989 Ford Bronco - Goodson tapered reamer

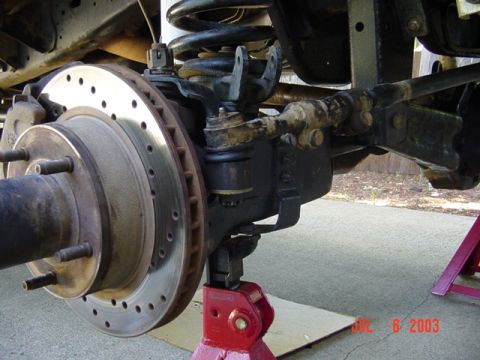

1989 Ford Bronco - Passenger side on top

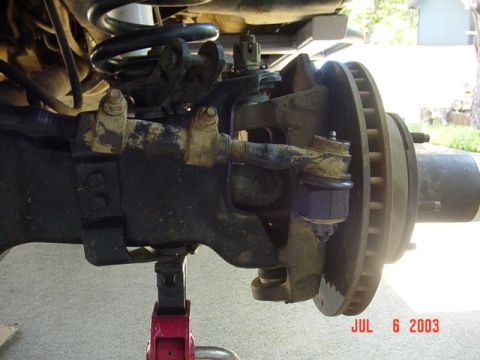

1989 Ford Bronco - Drivers side on top

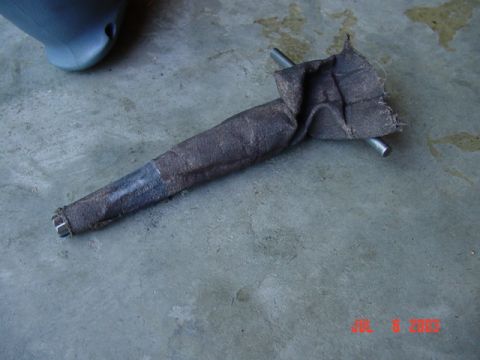

1989 Ford Bronco - We wrapped some emery cloth around the bit to clean up the chatter a little bit

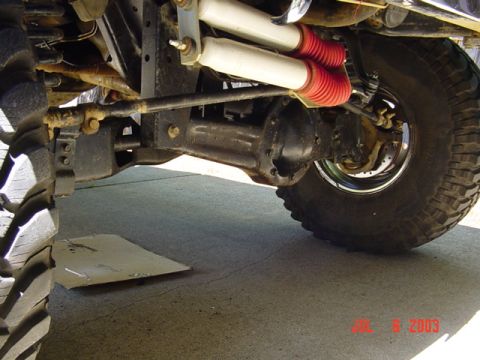

1989 Ford Bronco - Much more clearance and better angles now

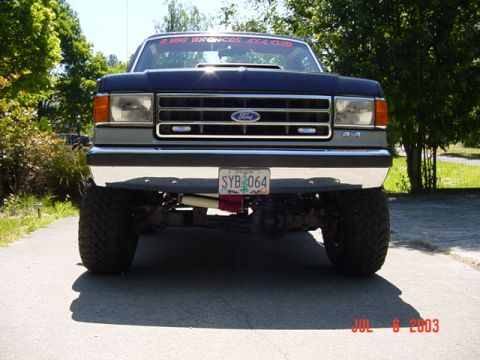

1989 Ford Bronco - Not sure why these pics are so dark

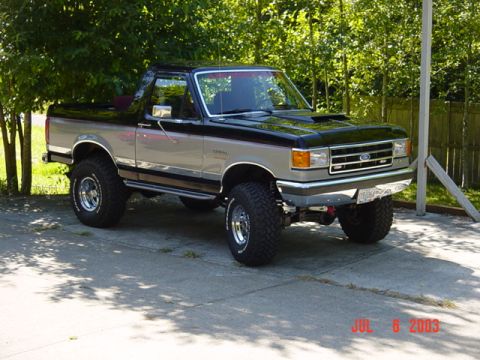

1989 Ford Bronco - All done, moved it out of the way so we can do Marks

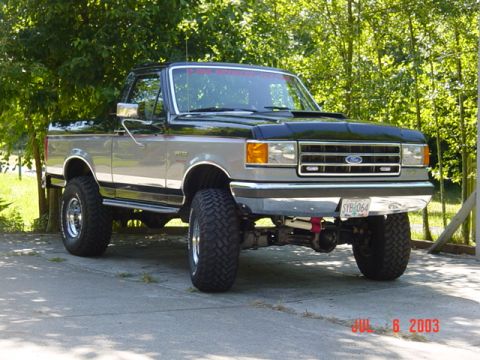

1989 Ford Bronco - Purdy

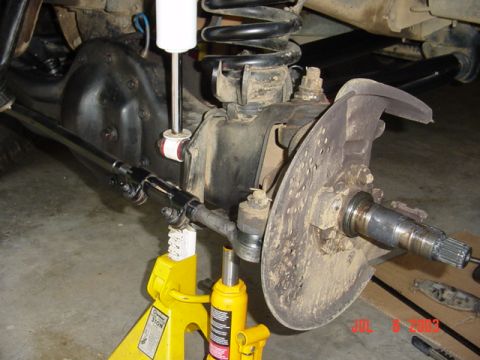

1989 Ford Bronco - Tie rod in stock location

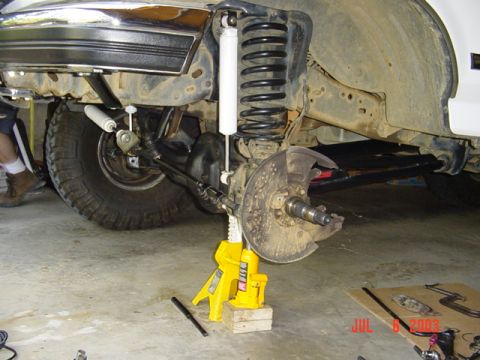

1989 Ford Bronco - See the angles on stock tie rod position

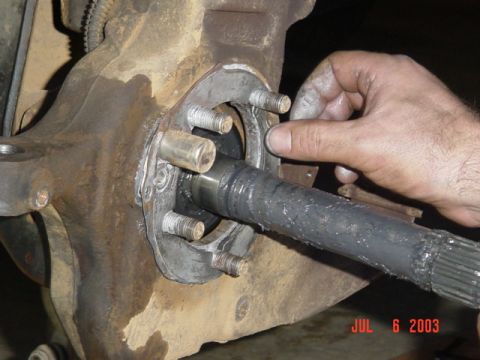

1989 Ford Bronco - Mark had to put his spindle back together,,,

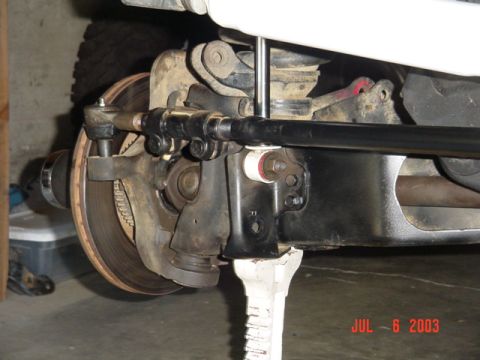

1989 Ford Bronco - Just checking it out

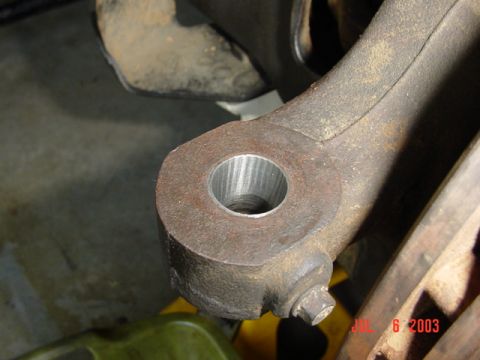

1989 Ford Bronco - This is as good as I can do with a hand drill

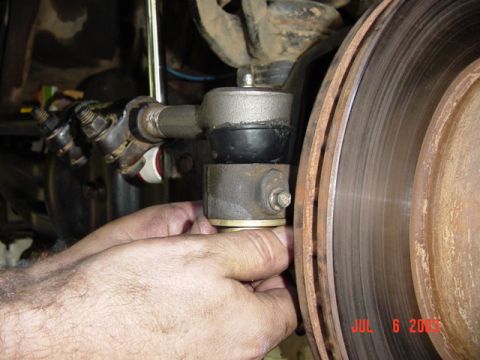

1989 Ford Bronco - You can see the bling bling washers we used

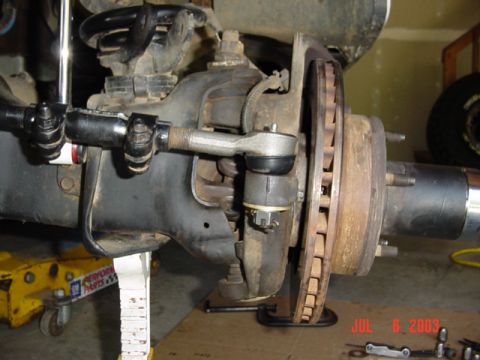

1989 Ford Bronco - Looking good!!

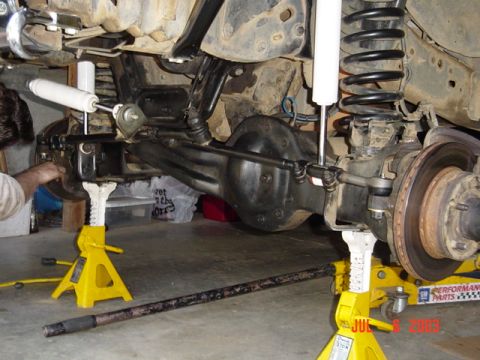

1989 Ford Bronco - Angles much better

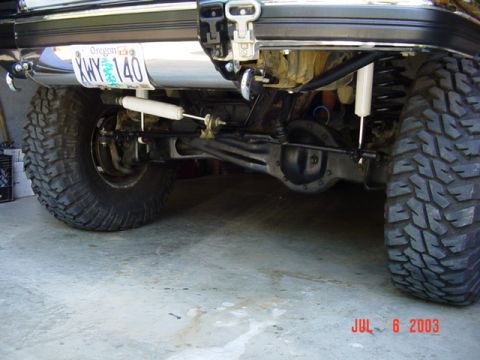

1989 Ford Bronco - The tie rod is almost flat

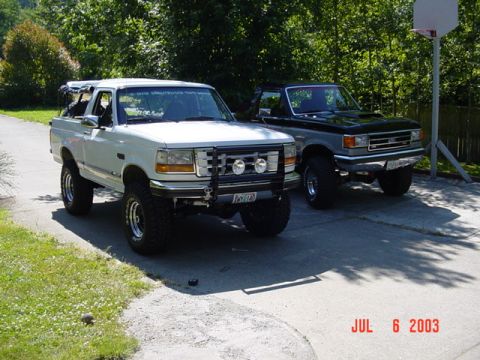

1989 Ford Bronco - Yay we are done!!

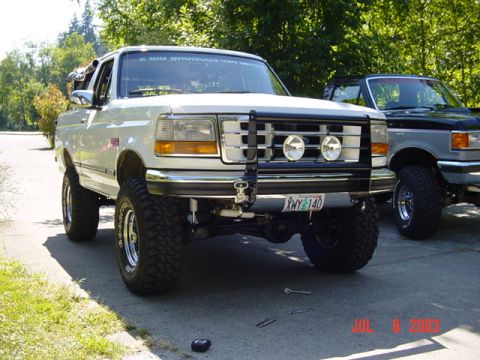

1989 Ford Bronco - TheJuice looking good

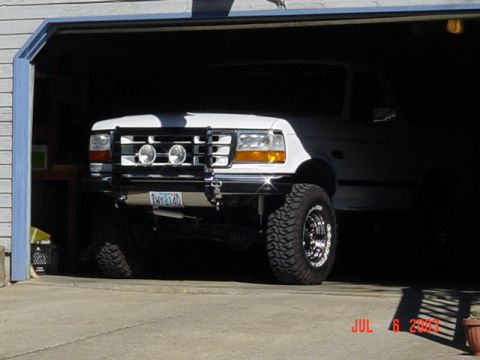

1989 Ford Bronco - Back in the garage
